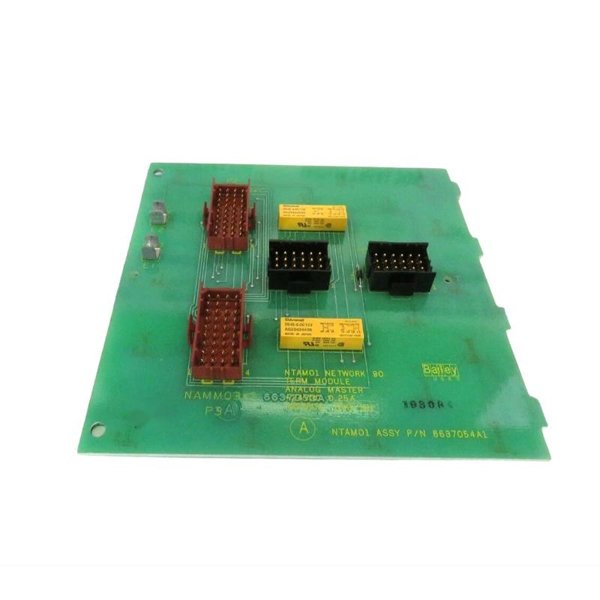

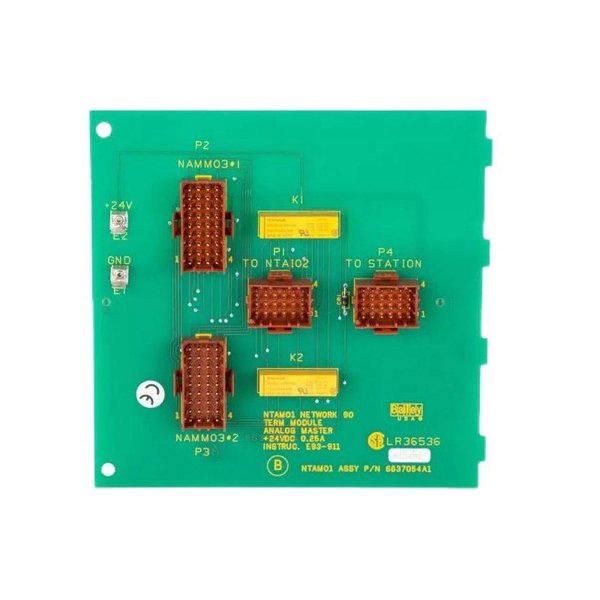

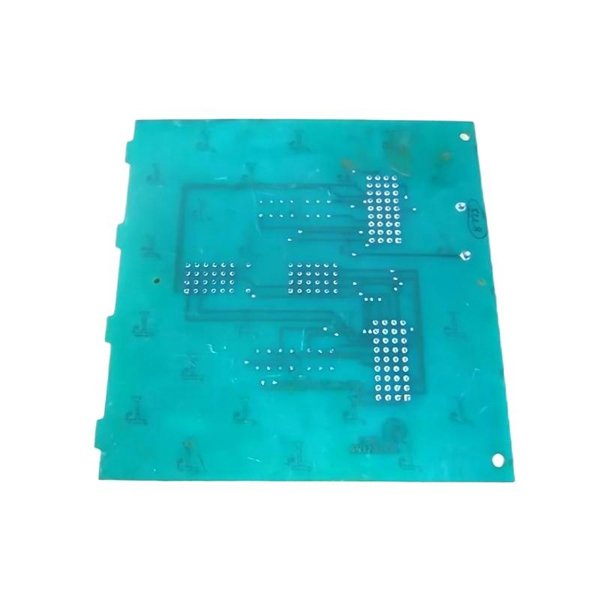

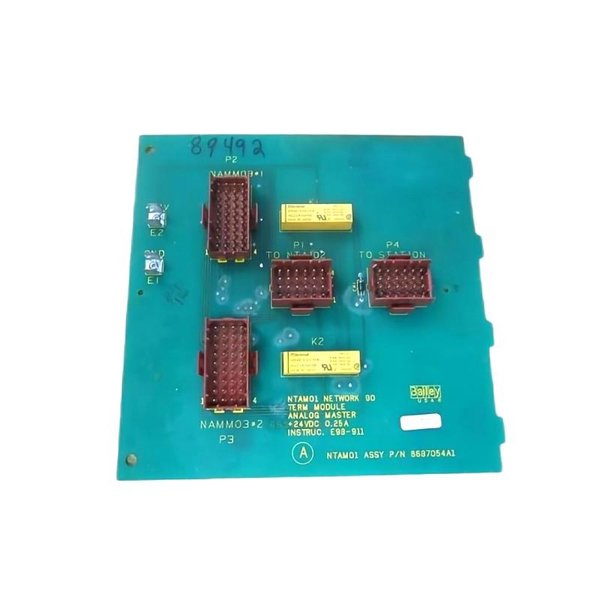

ABB Bailey NTAM01 6637054A1 Analog Master Termination Unit

The ABB Bailey NTAM01 Analog Master Termination Unit (part number 6637054A1) plays a vital role in analog signal management within ABB’s INFI 90 Distributed Control System (DCS). Designed to serve as a central interface for analog signals, the NTAM01 connects and manages data exchange between the control modules and various analog input/output field devices.

This module supports precise signal termination, routing, and conditioning. It functions as a master termination hub, organizing multiple channels of analog signals, ensuring electrical isolation, and enabling clean data transmission to the corresponding analog modules such as input or output cards. As a passive device, it simplifies field wiring while enhancing system stability and diagnostics, especially in large-scale industrial automation systems.

With its rugged construction, compatibility with standard ABB rack systems, and long-term support, the NTAM01 is a trusted module in complex control environments requiring accuracy, isolation, and scalability.

Technical Specifications

Product Applications

The NTAM01 is deployed in a wide array of industrial sectors where analog data acquisition and output play a key role. Key application areas include:

• Oil & Gas Refineries – Facilitates control and feedback from pressure, flow, and temperature transmitters.

• Power Generation Plants – Interfaces turbine instrumentation and environmental monitoring sensors.

• Chemical & Petrochemical Facilities – Coordinates analog signal routing for reactors, tanks, and batch processes.

• Pharmaceutical Manufacturing – Manages highly accurate analog data required for GMP compliance.

• Water & Wastewater Management – Supports sensor integration (e.g., pH, conductivity, flow meters).

• Pulp & Paper Industry – Consolidates sensor signals from various production stages including pulp digesters and dryers.

Product Advantages

• Centralized Analog Management: Efficiently organizes multiple analog inputs/outputs in one termination point.

• Superior Signal Integrity: Built-in isolation and surge protection safeguard against electrical noise and cross-talk.

• Modular and Scalable: Can be scaled across multiple racks for complex automation systems.

• Field Wiring Simplification: Reduces wiring complexity and ensures neat cable management.

• Reliable Mechanical Design: Durable enclosure suitable for harsh industrial environments.

• Lifecycle Support: Fully supported by ABB’s global maintenance and spare parts programs.

Frequently Asked Questions (FAQ)

1. What is the function of the NTAM01 module?

   The NTAM01 serves as the primary termination point for analog field signals, routing them to I/O modules in the INFI 90 system.

2. Is the NTAM01 compatible with both input and output analog signals?

   Yes, it supports both analog input and output signal types including 0–10V and 4–20mA.

3. Can the NTAM01 be used outside the INFI 90 system?

   It’s specifically designed for INFI 90 systems, and integration with other systems may require custom interfacing.

4. How is field wiring connected to the unit?

   Through screw-type terminal blocks, supporting secure connections and shielded cable inputs.

5. Does the NTAM01 offer surge protection?

   Yes, the unit includes built-in surge and overvoltage protection for sensitive analog signals.

6. Is the NTAM01 rack-mounted or DIN rail-mounted?

   It is rack-mounted and designed to fit standard INFI 90 equipment racks.

7. What kind of isolation is provided by the module?

   The NTAM01 offers both channel-to-channel and system isolation to prevent electrical interference.

8. Can the module be field serviced?

   Yes, routine maintenance such as terminal tightening and inspections can be performed on-site.

9. What are the environmental requirements for operating the unit?

   It operates between 0°C and 60°C and up to 95% non-condensing humidity.

10. Does the NTAM01 support diagnostics?

    It supports passive diagnostics via system-level tools and wiring inspection.
