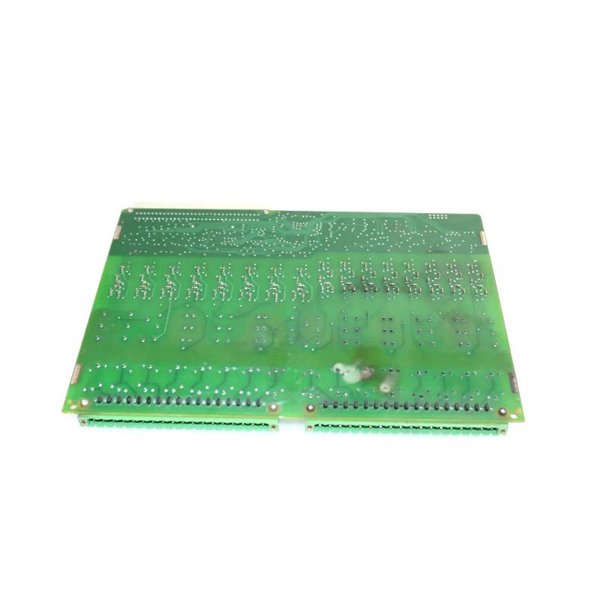

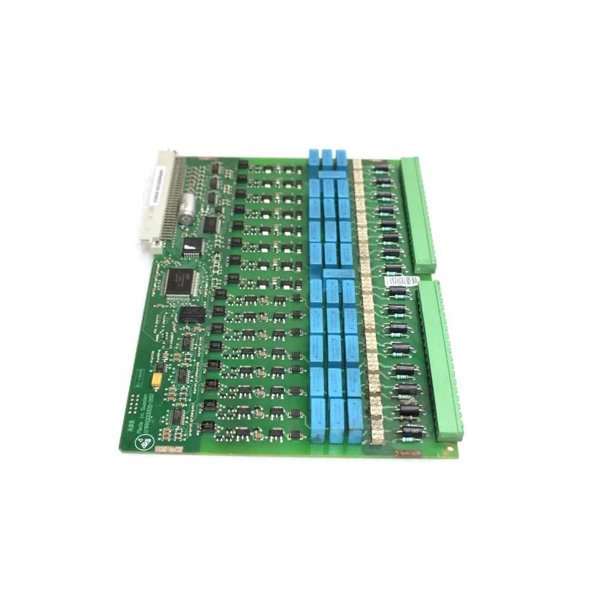

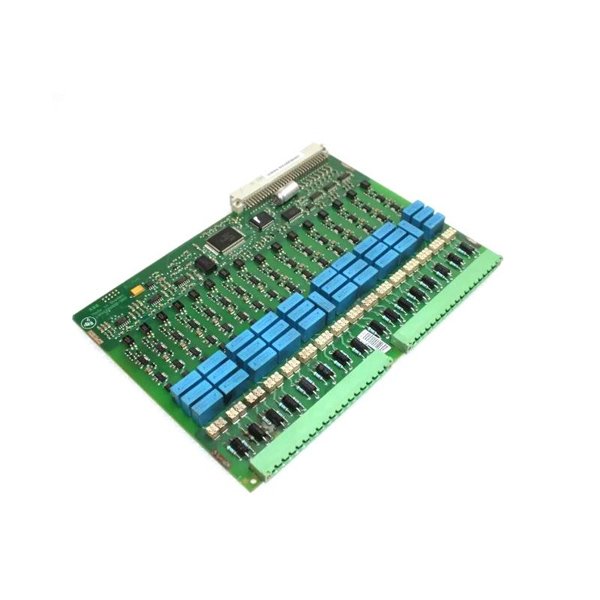

ABB 1MRK000508-BBr00 Binary Input/Output Module

The ABB 1MRK000508-BBr00 is a robust binary input/output module designed for industrial automation and control applications. Manufactured by ABB, a global leader in power and automation technologies, this module is engineered to provide reliable performance in demanding environments. It facilitates the integration of digital signals into control systems, ensuring precise monitoring and control of industrial processes.

Technical Specifications

Applications

The ABB 1MRK000508-BBr00 module is versatile and suitable for various industrial applications, including:

1. Process Automation: Integrates digital signals from sensors and actuators, enabling precise control and monitoring of manufacturing processes.
2. Power Distribution: Monitors and controls electrical distribution systems, ensuring efficient and reliable power management.
3. Industrial Machinery: Interfaces with machinery control systems to manage operations, enhancing productivity and safety.
4. Building Automation: Controls lighting, HVAC, and security systems within commercial and industrial buildings, improving energy efficiency and occupant comfort.

Advantages

1. High Reliability: Designed to perform consistently in harsh industrial environments, minimizing downtime and maintenance costs.
2. Wide Operating Temperature Range: Operates effectively in extreme temperatures, making it suitable for diverse applications.
3. Compact Size: Its space-saving design allows for easy integration into existing systems without requiring significant modifications.
4. Versatile Communication: Supports standard industrial communication protocols, facilitating seamless integration with various control systems.
5. Fast Response: Quick relay operation ensures timely signal processing, essential for real-time control applications.
6. Safety Compliance: Meets international safety standards, ensuring safe operation within industrial environments.

FAQ

1. What is the primary function of the ABB 1MRK000508-BBr00 module?

   • It serves as a binary input module designed to integrate digital signals into industrial control systems, facilitating precise monitoring and control.

2. How many binary inputs does this module support?

   • The module supports 16 binary inputs.

3. What is the operating voltage range for the inputs?

   • The input voltage range is 24-30 VDC.

4. Is the module suitable for use in extreme temperatures?

   • Yes, it operates effectively within a temperature range of -40°C to +85°C.

5. What are the dimensions and weight of the module?

   • The module measures 120 x 80 x 45 mm, with a weight of 0.245 kg.

6. How is the module mounted within a control system?

   • It is designed for DIN rail mounting, facilitating easy integration into standard control panels.

7. What communication protocols does the module support?

   • It supports Modbus and Ethernet communication protocols.

8. What is the response time of the module?

   • The module has a response time of less than 10 milliseconds.

9. Is the module compliant with international safety standards?

   • Yes, it holds CE, UL, and CSA certifications, ensuring compliance with international safety and performance standards.

10. What is the isolation voltage of the module?

    • The module has an isolation voltage of 2500 V AC, ensuring protection against electrical interference.
