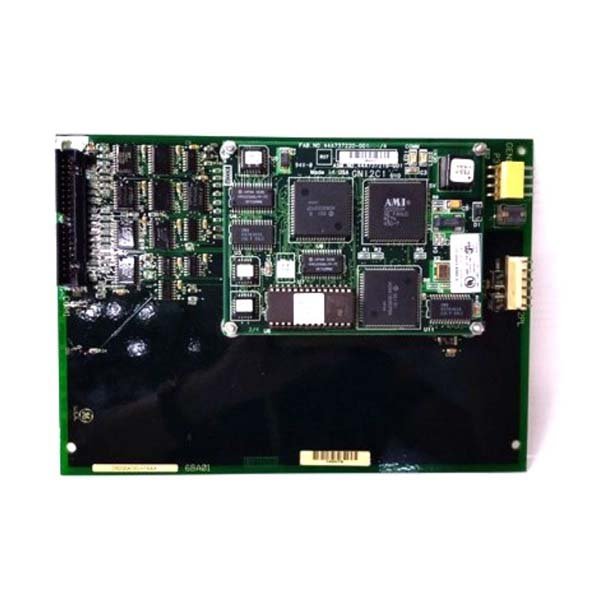

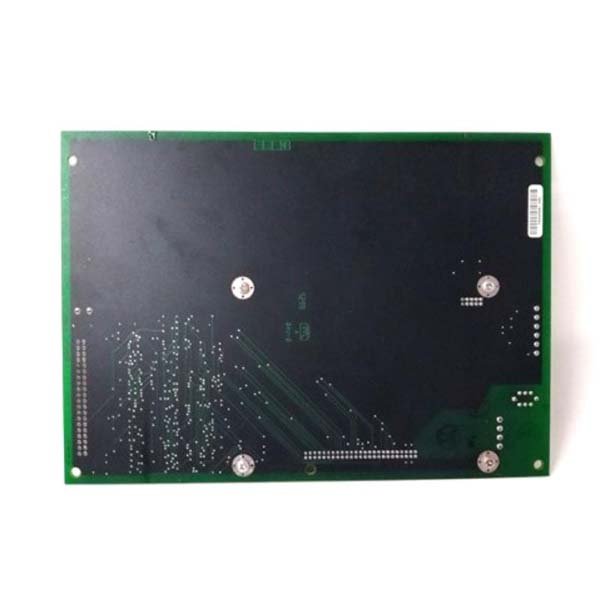

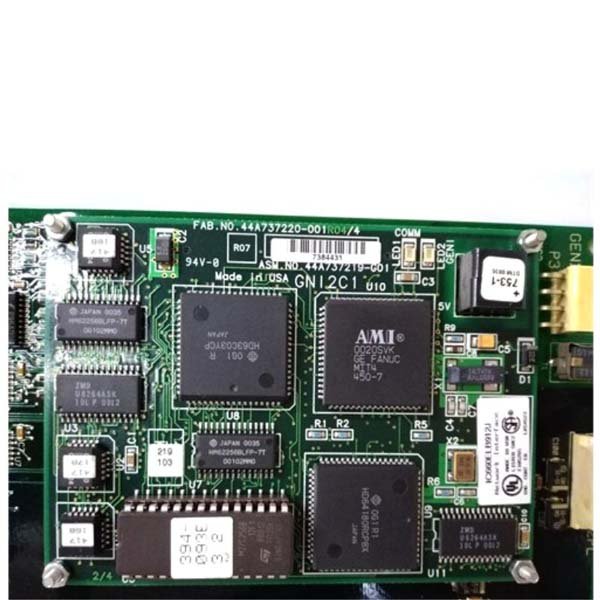

General Electric DS200BDAAG1AAA Power Supply Module

The GE DS200BDAAG1AAA Power Supply Module is engineered for industrial automation systems requiring stable and reliable DC power delivery. Designed for continuous operation in demanding environments, it ensures downstream modules operate efficiently without interruption. Its robust construction and compact footprint make it ideal for integration in densely packed control cabinets. This module is a core component for building resilient and scalable automation solutions.

Technical Specifications

Applications

The DS200BDAAG1AAA module is widely used in industrial automation setups that demand reliable power for:

• PLC and CPU systems

• Motor control circuits

• Robotics and automated machinery

• Process control in chemical, food, or manufacturing plants

• Backup and safety-critical systems

Its consistent voltage output reduces the risk of downstream failures, ensuring uninterrupted production processes.

Advantages

1. Reliable Power Supply: Reduces risk of module failure due to voltage instability.

2. Compact Footprint: Designed for easy integration in dense panels.

3. Energy Efficient: 90% efficiency lowers operational heat and electricity costs.

4. Robust Design: Resistant to industrial vibration and temperature extremes.

5. Wide Input Range: Flexible installation across different voltage environments.

6. Safety Compliant: Certified to UL, CE, and RoHS standards.

7. Easy Maintenance: Modular design allows quick replacement if needed.

FAQs

1. What is the maximum output current?

   Rated for continuous 5A DC output.

2. Can this module handle short voltage surges?

   Yes, minor surges can be tolerated but prolonged overcurrent reduces lifespan.

3. Does it require active cooling?

   No, passive cooling is sufficient, but adequate cabinet airflow is recommended.

4. Is it compatible with other GE power modules?

   Yes, designed for seamless integration with GE automation systems.

5. What is the expected MTBF?

   Approximately 70,000 hours under standard operating conditions.

6. Can it operate continuously at 55°C?

   Yes, within the specified -20°C to 60°C operating range.

7. Are replacement parts available?

   Yes, key components can be serviced through GE support channels.

8. Does it support redundant power setups?

   Yes, multiple units can be used in parallel for redundancy.

9. How should it be mounted?

   DIN rail or panel mounting is recommended with proper grounding.

10. Is there built-in diagnostic monitoring?

    Status LEDs indicate power presence and fault conditions.
