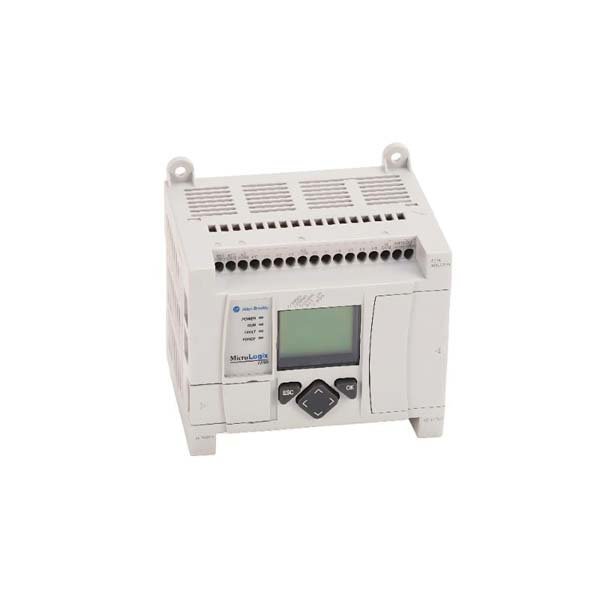

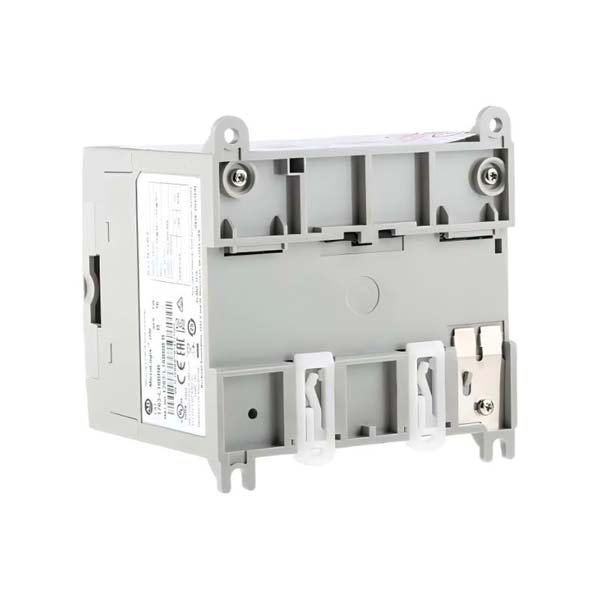

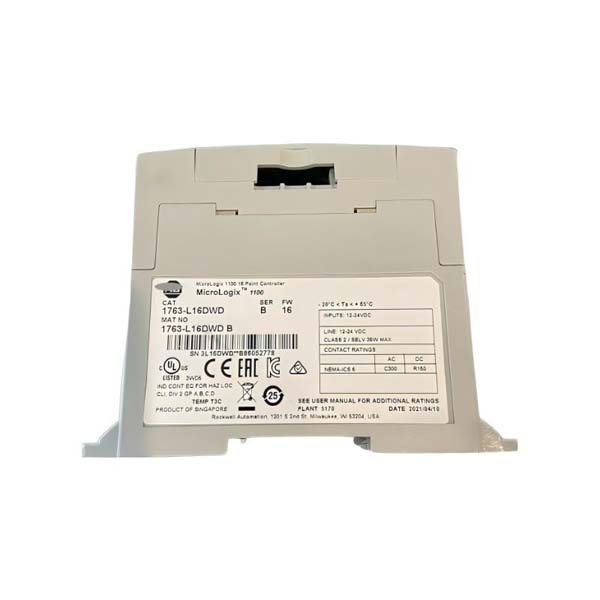

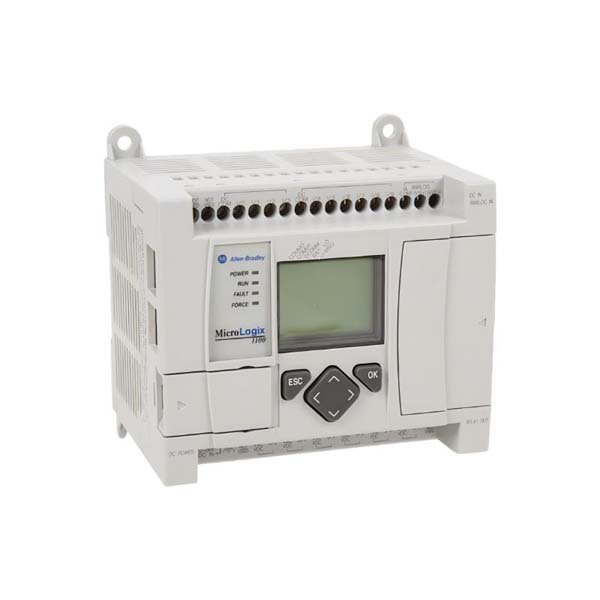

Allen-Bradley 1763-L16DWD MicroLogix 1100 CPU Module
Manufacturer:Allen Bradley
Product Number:1763-L16DWD
Product Type:MicroLogix 1100 CPU Module
Origin:USA
Dimensions:90 mm × 175 mm × 75 mm
Weight:0.68 kg
Views:148
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Allen-Bradley 1763-L16DWD MicroLogix 1100 CPU Module represents a smart evolution in compact control systems, offering built-in Ethernet connectivity, embedded data logging, and support for analog and digital I/O—all in one versatile controller. Designed to serve small machine automation and remote monitoring applications, this unit gives engineers a balance of affordability, performance, and communication flexibility.
Technical Data and Specifications
| Parameter | Specification | Description |
|---|---|---|
| Module Type | MicroLogix 1100 CPU Module | Compact PLC with integrated I/O |
| Digital Inputs | 10 (24 VDC) | Sink/source configurable |
| Digital Outputs | 6 (Relay) | Rated at 2 A per point |
| Analog Inputs | 2 (0–10 VDC) | 10-bit resolution |
| Communication Ports | 1 × RS-232/RS-485 combo, 1 × Ethernet (10/100 Mbps) | Supports DF1, Modbus RTU, and EtherNet/IP |
| User Memory | 10 KB (Program) + 10 KB (Data) | Non-volatile storage |
| Online Editing | Supported | Allows real-time logic modification |
| High-Speed Counters | 2 × 40 kHz | For pulse counting and encoder input |
| Real-Time Clock | Built-in | Timestamping and scheduling |
| Display | 16-character LCD | On-device programming and monitoring |
| Power Supply | 24 VDC | Internal supply for CPU and I/O |
| Expansion Capability | Up to 4 × 1762 expansion modules | Supports analog and communication modules |
| Operating Temperature | 0 °C to +55 °C | Industrial standard |
| Storage Temperature | -40 °C to +85 °C | Extended range |
| Relative Humidity | 5% – 95% non-condensing | Industrial tolerance |
| Dimensions (H × W × D) | 90 mm × 175 mm × 75 mm (3.54″ × 6.89″ × 2.95″) | Compact enclosure |
| Weight | 0.68 kg (1.50 lb) | Lightweight control module |
Typical Applications
-
Standalone machine control: Perfect for packaging, labeling, and material-handling systems.
-
Remote monitoring: Ethernet and Modbus RTU allow connection to SCADA or cloud-based systems.
-
Process automation: Manages small-scale chemical, water, or HVAC systems.
-
OEM integration: Fits cost-sensitive designs that still require flexibility.
-
Data logging: Ideal for recording process variables and alarms locally.
Key Advantages
-
Integrated Ethernet Port: Enables remote diagnostics, data collection, and programming over TCP/IP.
-
Compact, All-in-One Design: Combines logic, I/O, display, and communications in a single housing.
-
Built-In LCD Display: Allows users to monitor data and force I/O without a PC.
-
Online Editing: Engineers can adjust logic without halting operations.
-
Energy Efficient: Operates on low power, suitable for remote installations.
-
Expandable System: Compatible with 1762 MicroLogix I/O modules for tailored configurations.
-
High-Speed Performance: Dual 40 kHz counters allow fast input detection.
-
Open Communication: Supports EtherNet/IP, Modbus RTU, and DF1 simultaneously.
-
Enhanced Reliability: Non-volatile memory preserves programs even after power loss.
-
Ease of Maintenance: Clear diagnostics via LCD and RSLogix Micro software.
FAQs
-
Q: How many expansion modules can the 1763-L16DWD support?
A: It supports up to four 1762-series expansion modules.
-
Q: Can this module be programmed over Ethernet?
A: Yes, it fully supports programming and monitoring via Ethernet.
-
Q: What types of analog inputs are available?
A: Two channels supporting 0–10 VDC signals.
-
Q: Does it have real-time clock functionality?
A: Yes, a built-in RTC allows scheduling and timestamping.
-
Q: Is online program editing possible?
A: Yes, it supports online editing without stopping the controller.
-
Q: What is the maximum input frequency for high-speed counters?
A: 40 kHz on both channels.
-
Q: Can I use Modbus RTU and EtherNet/IP simultaneously?
A: Yes, both communication protocols can operate concurrently.
-
Q: What software is used for programming?
A: RSLogix Micro or RSLogix 500 software.
-
Q: How is power supplied to the controller?
A: It operates on 24 VDC and powers its internal I/O circuits.
-
Q: What’s the total number of onboard I/O points?
A: 18 total—10 inputs, 6 relay outputs, and 2 analog inputs.
