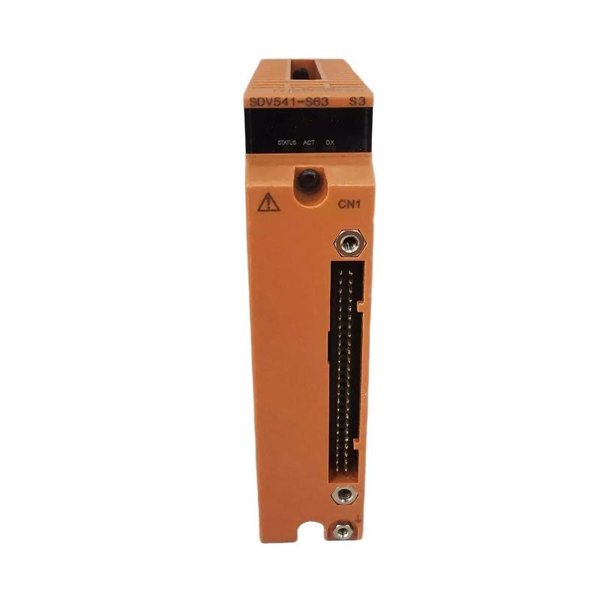

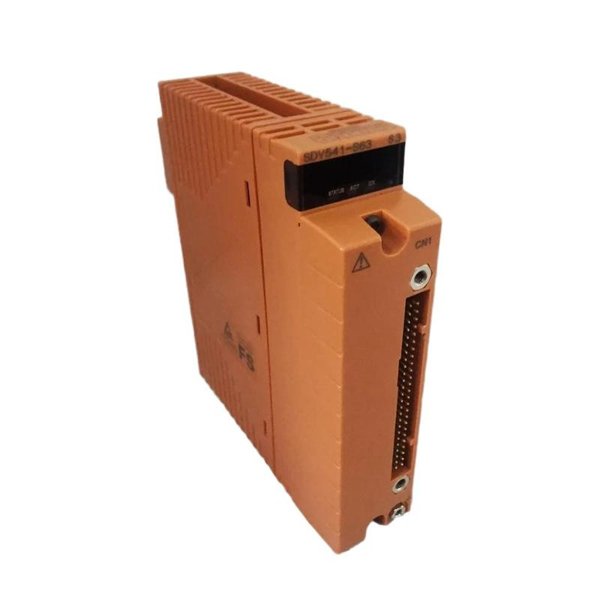

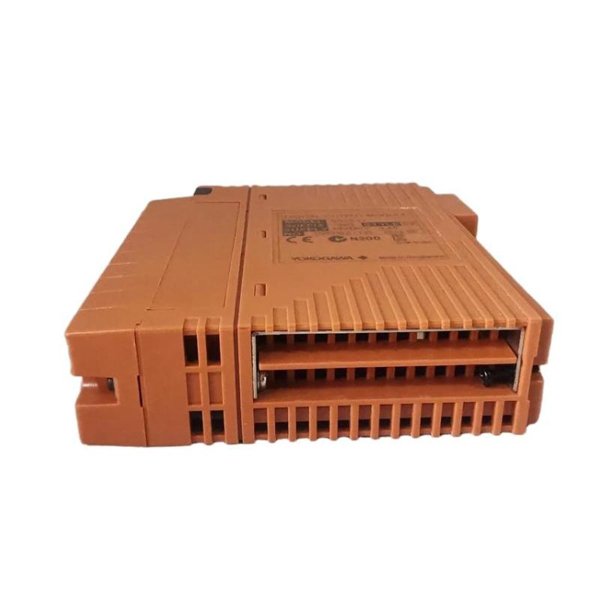

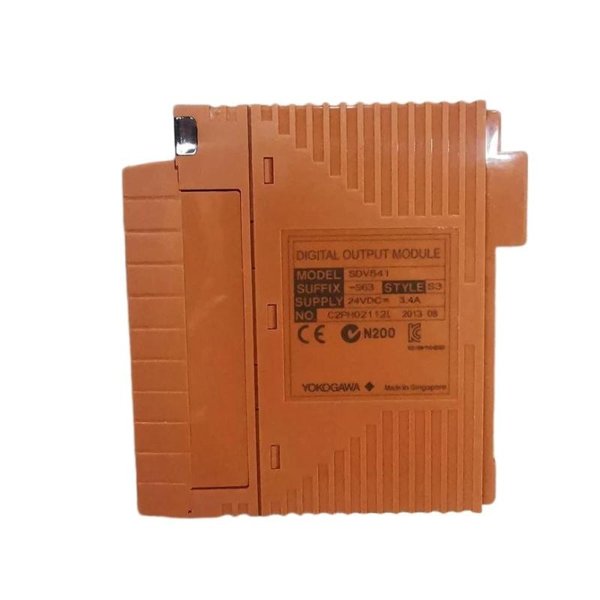

Yokogawa SDV541-S63 S3 Digital Output Modules

The Yokogawa SDV541-S63 is an S3 Digital Output Module designed for high-performance digital control in industrial automation systems. It interfaces with field devices to control actuators, relays, and valves while providing advanced diagnostics and high-speed switching for critical processes.

Key Features

• High-speed digital output for controlling field devices

• 16-channel output with individual channel diagnostics

• Compatible with Yokogawa S3 autonomous controllers and I/O modules

• Fault detection and protection against overloads and short circuits

• Simplified wiring and installation with DIN rail or panel mounting

• Robust design suitable for harsh industrial conditions

Technical Specifications

Industry Applications

• Oil & Gas – valve and actuator control, field device management

• Power Generation – turbine and generator control systems

• Petrochemical & Chemical – process automation and safety systems

• Water & Wastewater – pump and valve actuation

• Manufacturing – machine automation and process control

• Food & Beverage – batch and continuous process automation

Advantages

• High-speed and reliable digital output for precise control

• Individual channel diagnostics for enhanced system reliability

• Compatible with Yokogawa S3 autonomous controllers

• Robust construction for harsh industrial environments

• Simplifies field wiring and reduces installation errors

• Supports predictive maintenance and real-time monitoring

Frequently Asked Questions (FAQ)

Q1: What is the main function of the SDV541-S63?

It provides 16-channel digital output signals for controlling actuators, relays, and valves.

Q2: Which systems is it compatible with?

It is compatible with Yokogawa S3 autonomous controllers and I/O modules.

Q3: What is the output voltage and current capacity?

24 VDC output with 0.5 A per channel.

Q4: How fast is the response time?

Less than 5 milliseconds per channel.

Q5: What is the operating temperature range?

0 °C to +55 °C.

Q6: Can it be mounted on a DIN rail?

Yes, it supports both DIN rail and panel mounting.

Q7: Does it provide diagnostics?

Yes, individual channel diagnostics and fault detection are included.

Q8: What industries commonly use this module?

Oil & Gas, Power Generation, Petrochemical, Water & Wastewater, Manufacturing, and Food & Beverage.

Q9: What are its dimensions and weight?

130 mm x 107.5 mm x 32.8 mm, approximately 0.31 kg.

Q10: Is it compliant with industry standards?

Yes, it meets CE, UL, CSA, and RoHS standards.
