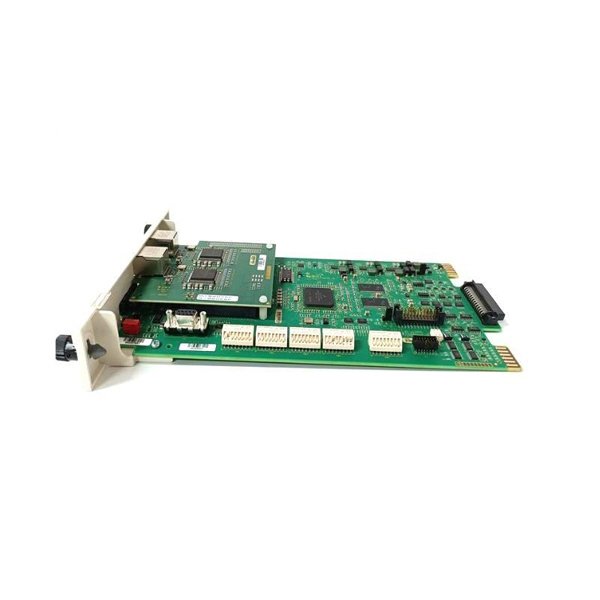

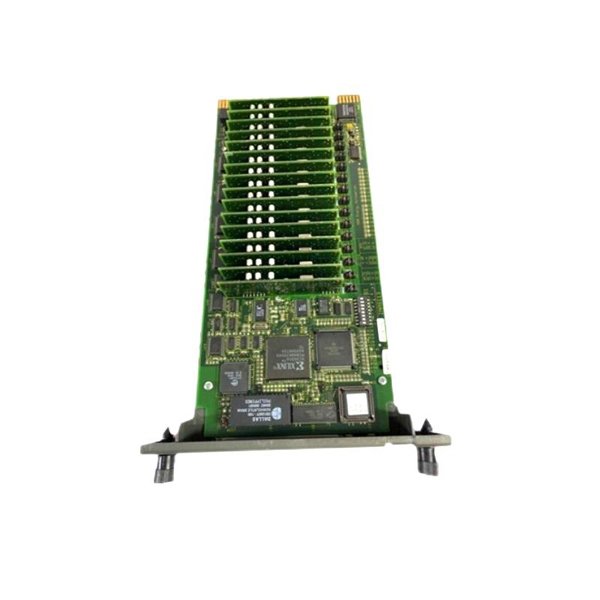

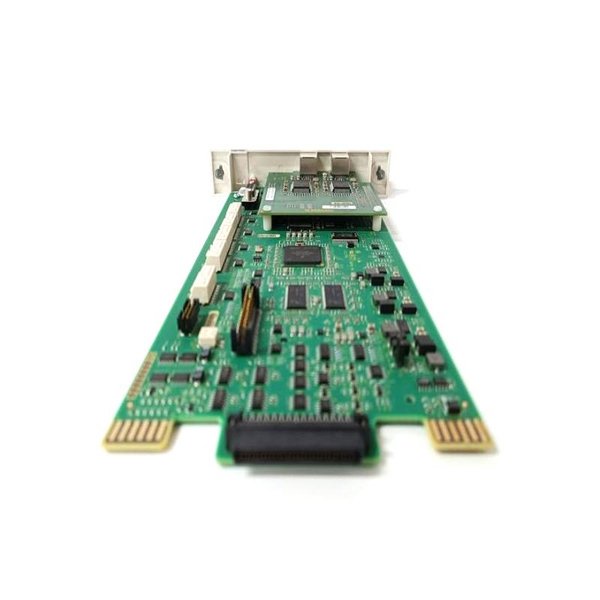

ABB Bailey IMFAI01 Isolated Analog Input Module
Manufacturer:ABB Bailey
Product Number:IMFAI01
Product Type:Isolated Analog Input Module
Origin:Sweden
Dimensions:200 × 100 × 30 mm
Weight:0.45 kg
Views:97
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB Bailey IMFAI01 Isolated Analog Input Module is a high-performance analog input module designed for industrial automation and process control applications. It provides reliable and accurate measurement of analog signals, ensuring stable and interference-free signal processing. With robust isolation capabilities, this module protects sensitive control systems from electrical noise and transient disturbances, making it an essential component in demanding industrial environments.
The IMFAI01 module is part of ABB’s extensive range of process automation solutions, specifically designed to integrate seamlessly into the Bailey INFI 90 control system. It enables precise monitoring of analog signals such as temperature, pressure, and flow rate, contributing to optimized process efficiency and safety. The module is widely used in industries such as power generation, oil & gas, chemicals, and water treatment, where accurate data acquisition is crucial for system stability and performance.
Product Specifications
| Specification | Details |
|---|---|
| Model | ABB Bailey IMFAI01 |
| Type | Isolated Analog Input Module |
| Input Channels | 8 or 16 configurable channels |
| Input Range | 0-10V, 4-20mA, or customized settings |
| Resolution | 12-bit or higher |
| Input Impedance | > 100 kΩ for voltage, 250 Ω for current |
| Accuracy | ±0.1% of full scale |
| Isolation Voltage | 1500V (channel-to-channel & channel-to-ground) |
| Communication Protocol | INFI 90 system bus |
| Power Consumption | 2.5W (typical) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H x W x D) | 200 × 100 × 30 mm |
| Weight | 0.45 kg |
| Mounting Type | Rack-mounted |
| Certifications | CE, UL, CSA |
Product Applications
The ABB Bailey IMFAI01 Isolated Analog Input Module is used in various industrial applications requiring precise and isolated analog signal acquisition. Its main applications include:
- Power Plants: Used for monitoring critical parameters such as temperature, pressure, and vibration in turbines and boilers.
- Oil & Gas: Facilitates safe monitoring of flow rates, pressure levels, and temperature in drilling and refining operations.
- Chemical Processing: Enables precise control of chemical reactions by monitoring pH, flow, and temperature variables.
- Water & Wastewater Treatment: Ensures compliance with environmental regulations by monitoring water quality parameters such as turbidity and chlorine levels.
- Manufacturing Automation: Integrates with PLCs and SCADA systems to monitor various machine parameters, ensuring high efficiency and productivity.
Product Advantages
- Superior Signal Isolation: Prevents electrical noise interference, ensuring highly accurate signal measurements.
- High Reliability: Designed for 24/7 industrial operation, providing stable performance under harsh conditions.
- Flexible Input Configuration: Supports multiple input types, including voltage and current, making it adaptable to various industrial needs.
- Robust Build Quality: Manufactured with high-quality components to withstand extreme environmental conditions.
- Seamless Integration: Fully compatible with the ABB Bailey INFI 90 system, allowing for easy system expansion.
- Industry Certifications: Compliant with global industrial standards, ensuring safety and reliability in mission-critical applications.
