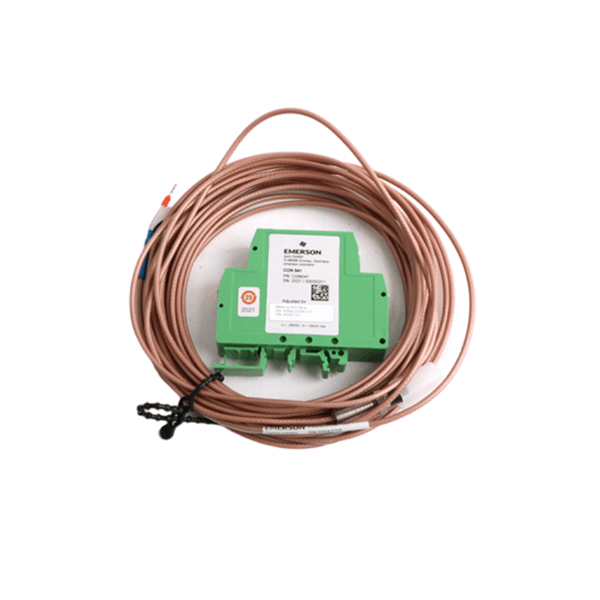

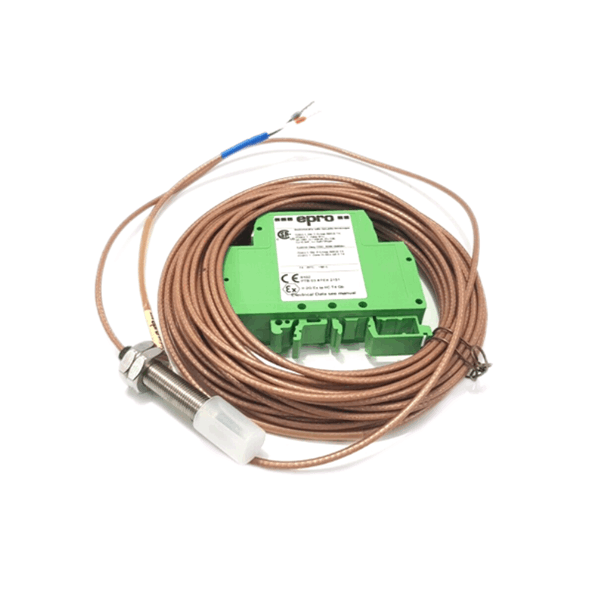

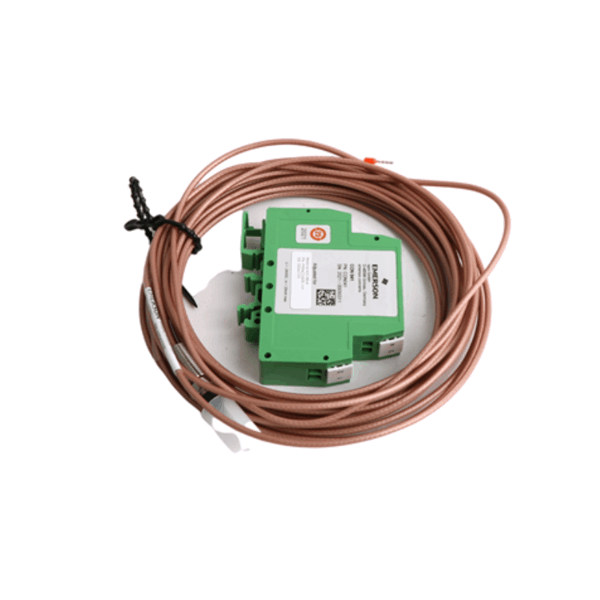

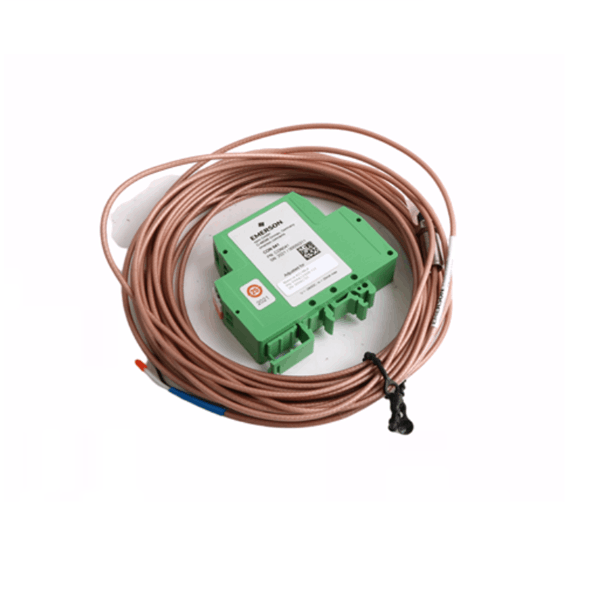

Epro PR6423/000-031 8mm Eddy Current Sensor

The Epro PR6423/000-031 8mm Eddy Current Sensor is a high-precision industrial sensor designed for non-contact displacement and proximity measurement applications. Utilizing the principle of eddy current technology, the sensor is capable of accurately measuring the position, displacement, and movement of metallic objects within an 8mm range, making it ideal for a variety of industrial environments where high precision and reliability are paramount.

This sensor is part of the PR6423 series, a renowned line of measurement solutions by Epro, known for their robustness and accuracy in harsh conditions. The PR6423/000-031 is engineered to deliver superior performance in tasks involving the monitoring of critical machinery and components in industries such as power generation, automotive, and manufacturing.

Product Specifications

Applications

The Epro PR6423/000-031 8mm Eddy Current Sensor is used in a variety of applications where precise, non-contact measurement of position and displacement is required. Some of the most common applications include:

• Rotating Machinery Monitoring: The sensor is widely used for monitoring shaft displacement, rotor positioning, and vibration in turbines, motors, and other rotating equipment.
• Industrial Automation: It is ideal for positioning control in manufacturing and assembly lines, helping ensure precision in robotic arms, conveyors, and actuators.
• Precision Measurement: Used in laboratories or test rigs for precise displacement measurement, especially in automotive, aerospace, and mechanical engineering fields.
• Condition Monitoring: Used for monitoring machinery health by measuring axial displacement and detecting potential mechanical faults.
• Quality Control: It is deployed in industrial environments to monitor the positioning of parts or tooling during the production process.

Advantages

1. Non-contact Measurement: The sensor’s non-contact technology ensures that wear and tear are minimized, offering a longer operational lifespan.
2. High Precision: With a resolution of 0.01 mm and linearity of ±0.1%, the sensor guarantees highly accurate displacement measurements.
3. Wide Temperature Range: Withstanding temperatures from -25°C to +85°C, this sensor can be used in both low and high-temperature environments.
4. Robust Construction: The stainless-steel housing provides excellent durability and protection against harsh industrial conditions.
5. Easy Installation: The M12 threaded mounting system simplifies installation, allowing for quick and secure integration into systems.
6. Analog Output Options: With both 4-20 mA and 0-10 V output options, the sensor can be integrated easily with a wide range of industrial control systems.
7. Energy-Efficient: With a power consumption of just 20 mA max, the sensor is energy efficient, helping to lower operational costs.
8. High Reliability: Designed for continuous operation, the sensor delivers reliable performance even under challenging industrial conditions.
9. Compact Size: The small footprint allows for installation in tight spaces where other sensors might not fit.
10. Protection Against Dust and Water: With an IP65 rating, the sensor is protected from dust and water, making it suitable for use in environments with heavy exposure to contaminants.

Frequently Asked Questions (FAQ)

1. What is the measuring range of the Epro PR6423/000-031 sensor?

   • The sensor has a measuring range of 0 to 8 mm.

2. What output signals are available from the Epro PR6423/000-031 sensor?

   • The sensor offers both 4-20 mA and 0-10 V output signals.

3. What is the resolution of the sensor?

   • The sensor provides a resolution of 0.01 mm.

4. What is the operating temperature range of the Epro PR6423/000-031 sensor?

   • The sensor can operate within a temperature range of -25°C to +85°C.

5. What is the supply voltage required for the sensor?

   • The sensor requires a supply voltage of 24 V DC ±10%.

6. What is the power consumption of the sensor?

   • The sensor consumes a maximum of 20 mA of power.

7. What is the weight of the sensor?

   • The sensor weighs 0.1 kg.

8. Can the sensor be mounted easily in industrial applications?

   • Yes, the sensor features an M12 threaded mounting for easy installation.

9. What is the level of protection against environmental factors?

   • The sensor has an IP65 rating, providing protection against dust and water.

10. In which industries can the Epro PR6423/000-031 sensor be used?

• The sensor is used in industries such as power generation, automotive, aerospace, and manufacturing for displacement and vibration monitoring.
