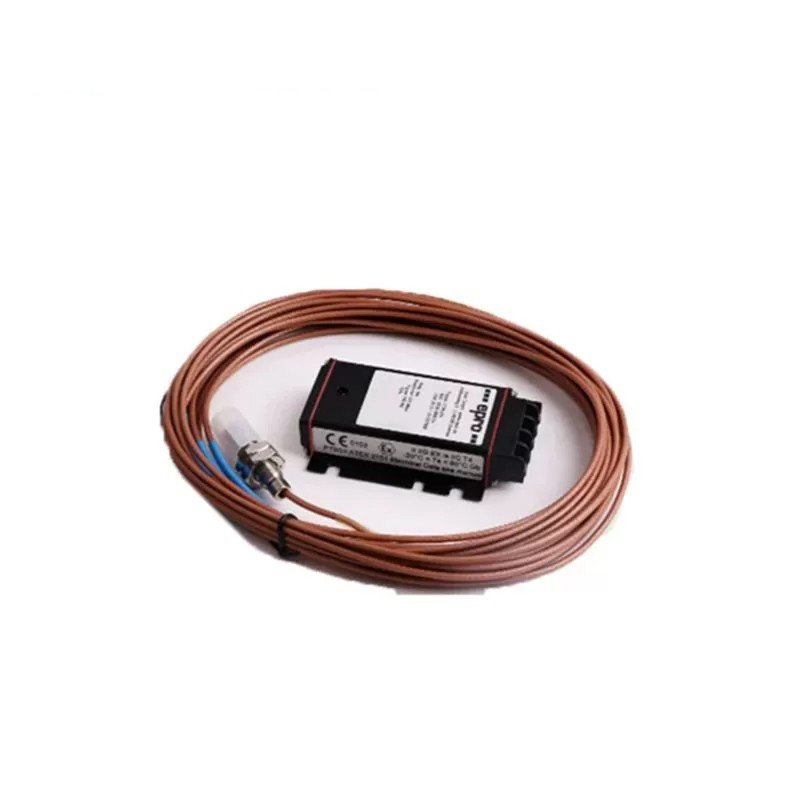

Epro CON021+PR6423/004-010-CN Eddy Current Sensor
Product Number: CON021 + PR6423/004-010-CN
Category: Eddy Current Sensor System
Sensor Type: Non-contact eddy current displacement sensor (PR6423)
Converter: CON021 signal converter
Probe Length: 0.4 meters (specified by -004)
Cable Length: 1.0 meters (specified by -010)
System Compatibility: MMS 3000/6000 monitoring systems
Application: Shaft vibration, axial position, radial position measurement
Certification: CN variant for Chinese market
Product Description
The EPRO CON021 + PR6423/004-010-CN is ideal for critical turbomachinery applications, including turbines and pumps. It measures radial and axial shaft dynamics to ensure reliable machinery monitoring.
Specifications
- Linear Measurement Range: 2 mm (80 mils)
- Initial Air Gap: 0.5 mm (20 mils)
- Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% at 0 to 45°C (+32°F to +113°F)
- Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) at 0 to 45°C (+32°F to +113°F)
- Operating Temperature Range:
- Sensor (incl. 1m Cable): -35°C to +200°C (-31°F to 392°F)
- Cable & Connector: -35°C to +150°C (-31°F to 302°F)
- Protection Class: IP66, IEC 60529
Material
- Sensor Tip: PEEK (Polyether Ether Ketone)
- Case: Stainless Steel
- Cable: PTFE (Polytetrafluoroethylene)
- Connector: Brass, nickel-plated
- Weight: Approx. 100 grams (3.53 oz)
Features
- High Accuracy: ±1%
- Output Signal: 0.5 to 4.5 V
- Power Supply: DC 12 V to 24 V
- Environmental Compliance: CE, ATEX, IEC-Ex, CSA certified
- Hazardous Area Approvals: Intrinsic Safety (ia), Non-sparking (nA)
