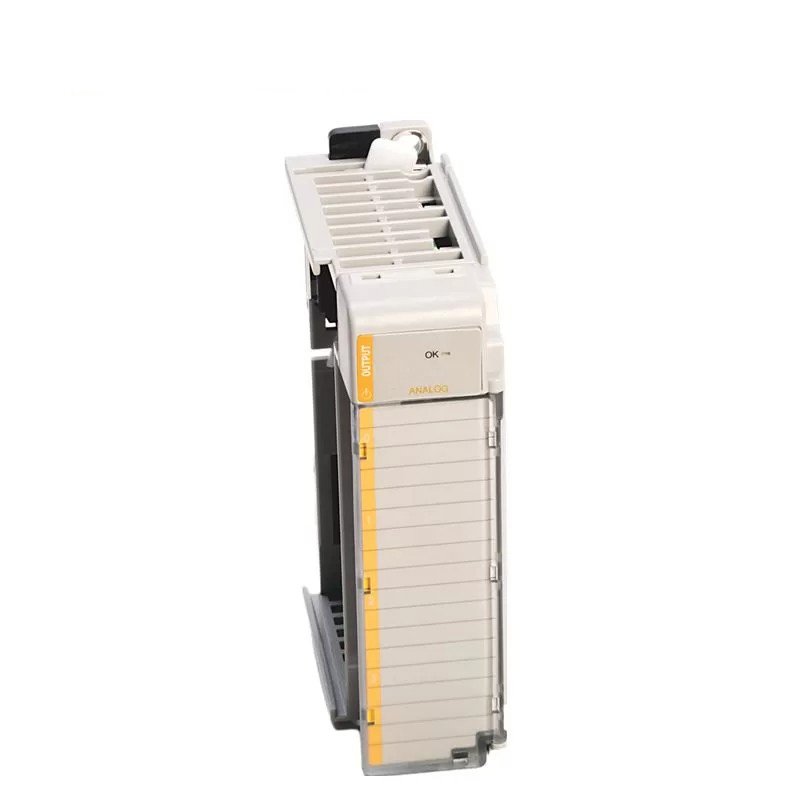

The Allen-Bradley 1769-OF4VI is a compact voltage output module designed for CompactLogix systems. It offers four individually-isolated outputs, ideal for industrial automation.

Key Features

• Four Isolated Outputs: Each output is isolated to enhance noise immunity and protection.
• Voltage Range: Outputs range from 0 to 10V, with a full-scale range of 0 to 10.5V.
• High Resolution: Achieves precise control with a 15-bit resolution (330 μV/bit).
• Compact Size: Its small form factor fits well in space-constrained applications.
• Easy Configuration: Easily configure the module using Rockwell Automation programming software.

Technical Specifications

• Voltage: 5V DC
• Bus Current: 165mA
• Power Dissipation: 2.0 watts
• Operating Temperature: 0 to 55°C
• Certifications: C-TICK, CCC, CUL, GOST, KC, MARINE, UL

Applications

• Process Control: Ideal for managing and regulating processes.
• Motor Control: Effective in controlling motor operations.
• Machine Automation: Suitable for various automation tasks.
• Data Acquisition: Useful for collecting and analyzing data.
