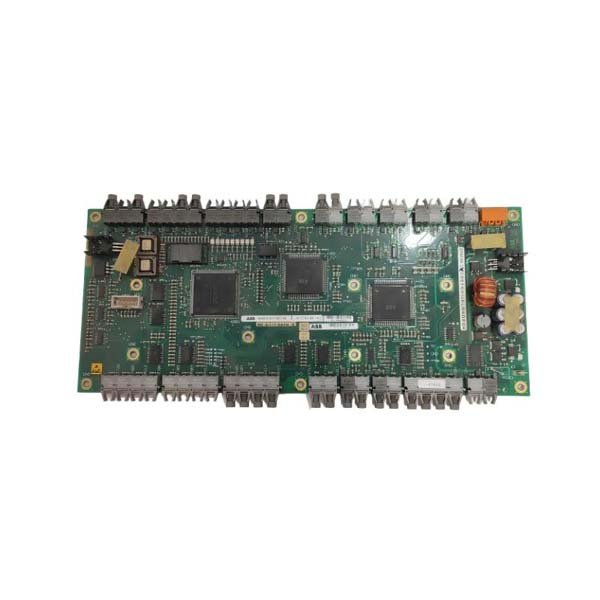

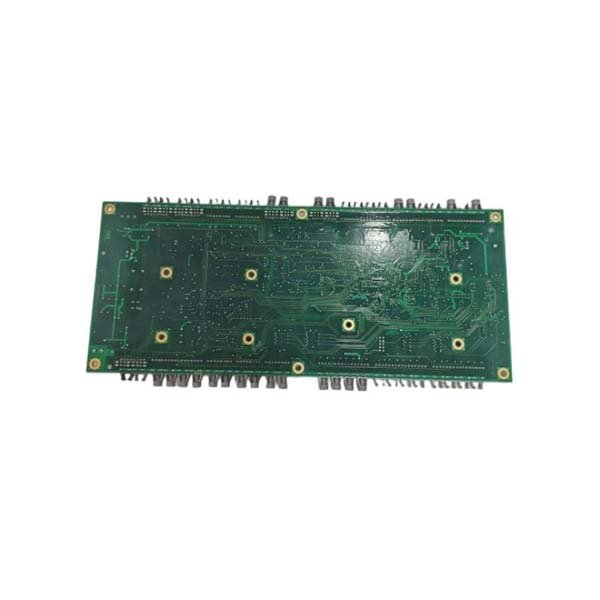

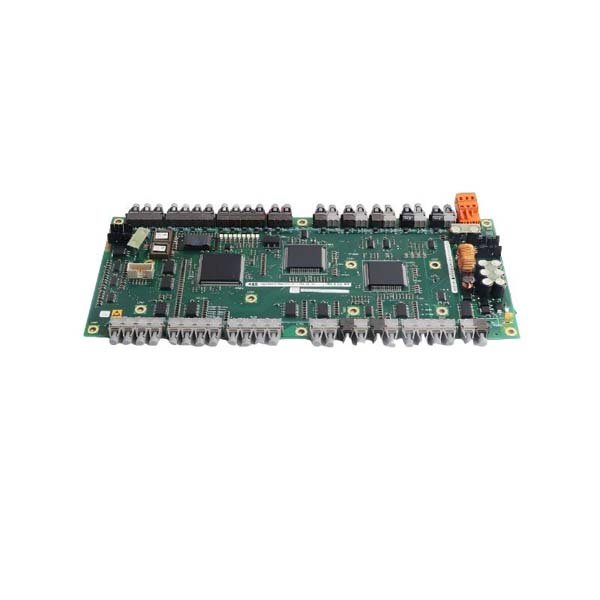

ABB UF C760 BE145 CPU Controller Module

The ABB UF C760 BE145 (3BHE004573R0145) is a high-end CPU controller module designed for next-generation ABB Symphony Plus and Advant distributed control systems (DCS). It represents a major evolution in ABB’s UF C760 series, delivering faster computation, larger memory capacity, and enhanced communication reliability. Engineered for mission-critical applications, the BE145 combines high-speed logic execution, redundant communication interfaces, and rugged industrial performance, making it a trusted choice for continuous process industries requiring 24/7 uptime and operational precision.

Technical Specification Sheet

Operational Applications

• Power Generation Plants: Primary logic control for turbines, generators, and boiler systems.

• Oil & Gas Refineries: Supervisory control for compressors, pumps, and safety loops.

• Chemical & Petrochemical: High-speed batch automation and continuous process regulation.

• Water and Wastewater Treatment: Flow balancing, pump control, and process monitoring.

• Pharmaceutical Manufacturing: GMP-compliant automation with high control accuracy.

• Metallurgy and Mining: Heavy process synchronization and load regulation.

• Marine and Energy Systems: Real-time distributed control for hybrid energy grids.

Competitive Advantages

• Superior Processing Power: Doubled performance compared to BE142, ideal for advanced DCS tasks.

• Extended Memory Resources: Supports complex applications with large data handling capacity.

• Advanced Communication Redundancy: Dual Ethernet architecture ensures zero communication downtime.

• Fully Compatible Integration: Works seamlessly with ABB Symphony Plus and Advant systems.

• Resilient Industrial Design: Resistant to vibration, temperature, and EMI disturbances.

• Rapid Diagnostics: LED indicators and onboard tests reduce maintenance complexity.

• Remote Firmware Updates: Supports Ethernet-based updates for long-term maintainability.

• High System Uptime: Engineered for 24/7 critical process availability.

• Flexible Mounting: Rack and DIN-rail compatibility simplify system retrofits.

• Lifecycle Longevity: Supported by ABB’s global service and spare part continuity program.

FAQs

1. Q: What system architectures are compatible with the UF C760 BE145?

   A: It integrates directly into ABB Symphony Plus and Advant DCS architectures.

2. Q: How does the BE145 improve upon BE142?

   A: It offers greater memory capacity, faster processing speed, and enhanced redundancy.

3. Q: Can the module operate in a redundant CPU configuration?

   A: Yes, the BE145 supports dual-redundant operation for fault-tolerant control.

4. Q: What protocols are natively supported?

   A: Modbus TCP/IP, PROFIBUS DP, OPC, and ABB’s proprietary Control Network.

5. Q: Is it suitable for field firmware updates?

   A: Yes, firmware can be updated remotely via Ethernet.

6. Q: What is the standard power requirement?

   A: 24 VDC, operating between 19–30 VDC range.

7. Q: Can it be mounted on a DIN rail?

   A: Yes, both DIN-rail and rack-mounted configurations are supported.

8. Q: Does it have built-in diagnostic capability?

   A: Yes, the module includes onboard self-test and LED indicators for system status.

9. Q: What is its typical energy consumption?

   A: Approximately 17 watts during standard operation.

10. Q: What temperature range does it support for industrial environments?

    A: Operational range from 0°C to +55°C, ensuring performance stability.
