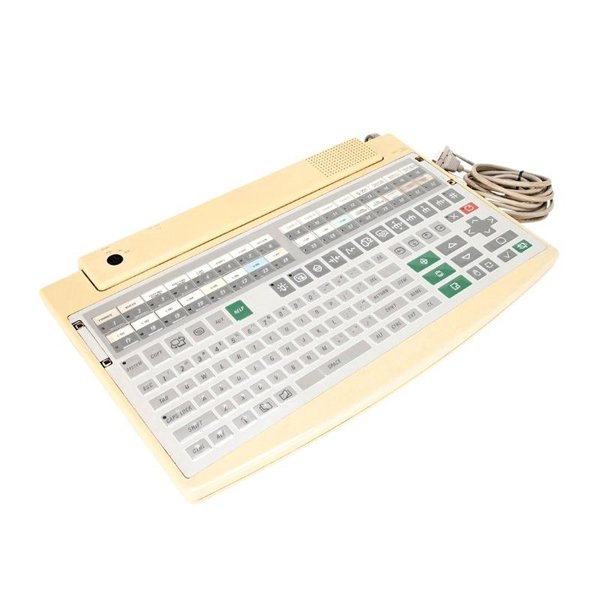

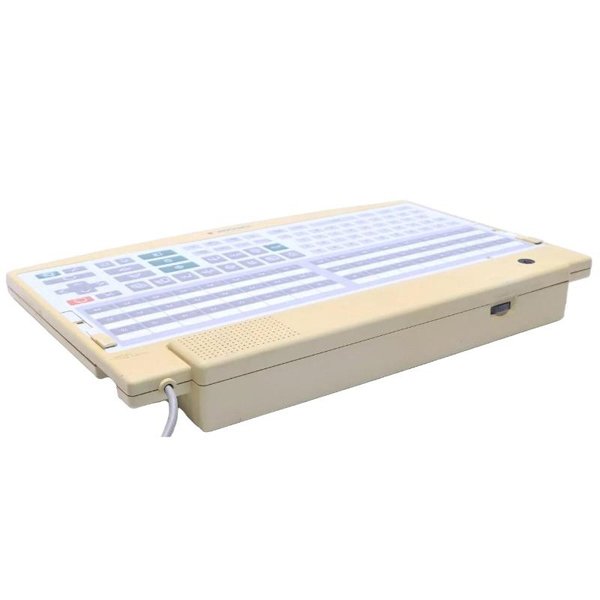

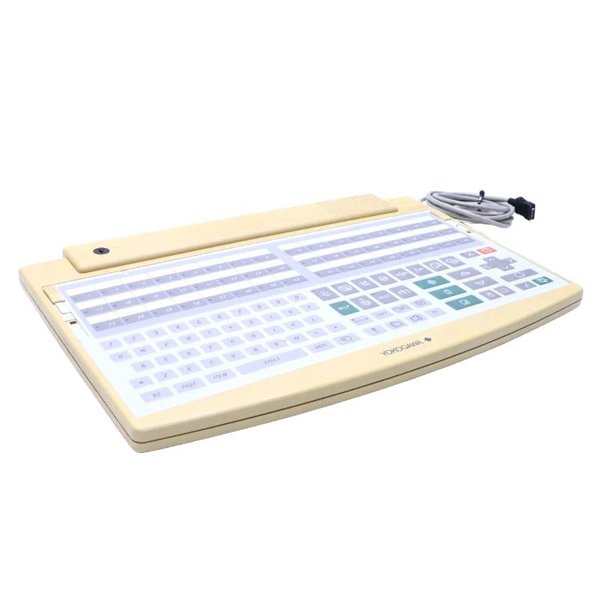

Yokogawa AIP826-2 S2 Operation Keyboard

The Yokogawa AIP826-2 S2 Operation Keyboard is an advanced operator interface designed specifically for use with the CENTUM VP and other Yokogawa distributed control systems (DCS). This keyboard serves as a critical human-machine interface (HMI), allowing operators to monitor, control, and manipulate process parameters efficiently.

The S2 version builds upon the previous AIP826-2 model by offering enhanced ergonomic design, improved key responsiveness, and extended support for advanced programmable functions. It is suitable for continuous industrial operations in harsh environments, including chemical, oil & gas, power generation, and water treatment plants. Its robust electrical isolation and optimized communication with the DCS ensure high reliability and low latency in real-time operations.

The AIP826-2 S2 supports multi-node integration, allowing centralized control while providing flexible operator access points throughout the control room. It is engineered to reduce operational errors, streamline workflow, and enhance operator efficiency in complex industrial processes.

Product Specifications

Product Applications

The AIP826-2 S2 Operation Keyboard is ideal for a wide range of industrial control applications:

• Real-time monitoring and control of distributed process units in Yokogawa DCS

• Alarm management, acknowledgment, and operator intervention in critical processes

• Local or remote operation of pumps, valves, and actuators in chemical and petrochemical plants

• Continuous process monitoring in power generation, including turbines, generators, and auxiliaries

• Water and wastewater treatment plant control, including automated dosing and process feedback

• Centralized operator control in multi-node control rooms

• Support for complex control strategies, batch processing, and continuous flow operations

Product Advantages

• High Reliability: Provides consistent performance under electrical noise, vibration, and temperature fluctuations.

• Ergonomic Design: Improved key spacing and tactile feedback reduce operator fatigue and improve accuracy.

• Programmable Functionality: All keys are programmable to streamline repetitive tasks and improve workflow efficiency.

• Enhanced Visual Feedback: LED indicators and display elements provide clear status and alarm visualization.

• Flexible Integration: Supports multi-node CENTUM VP networks for scalable control room solutions.

• Fast Response: Low latency ensures rapid registration of operator commands.

• Robust Construction: Built for industrial use with resistance to environmental factors common in process plants.

Frequently Asked Questions (FAQ)

1. What types of keys are used in the AIP826-2 S2 keyboard?

   Tactile mechanical keys are used for primary inputs, with additional programmable function and navigation keys.

2. Can the keyboard operate in a redundant DCS configuration?

   Yes, it fully supports redundant CENTUM VP configurations with seamless failover.

3. How is the keyboard connected to the DCS network?

   Connections can be made via Ethernet, RIO, or serial interfaces, depending on system setup.

4. Are the function keys programmable?

   Yes, all function keys can be programmed via the CENTUM VP engineering software to execute user-defined operations.

5. Does the keyboard provide visual status for alarms?

   Yes, LED indicators display real-time alarm conditions and operational status.

6. Can multiple operators use the keyboard simultaneously?

   Each keyboard supports single-user operation; multi-node network allows independent operation at multiple stations.

7. What is the response time from key press to action execution?

   The typical response time is ≤ 50 ms under normal conditions.

8. Is the keyboard suitable for high-humidity environments?

   Yes, it operates reliably in 5% to 95% RH, non-condensing conditions.

9. What diagnostic features are included?

   LED indicators for power, status, and alarms, along with software diagnostics through the DCS.

10. Can the keyboard firmware be upgraded?

    Yes, firmware can be updated via the connected CENTUM VP system to support new features or fixes.
