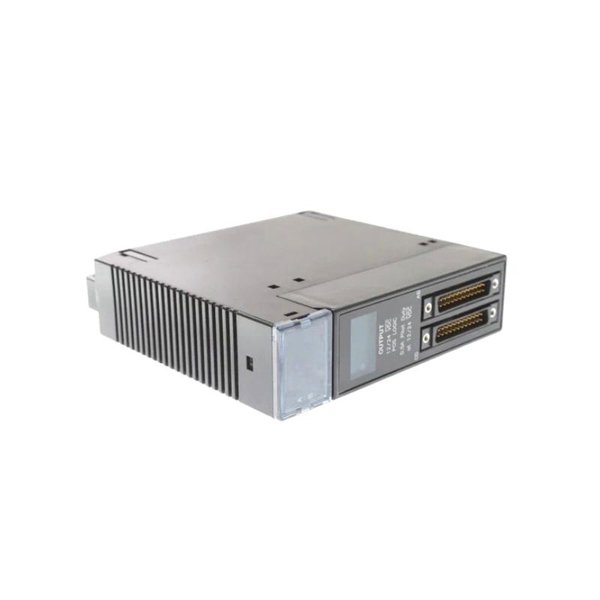

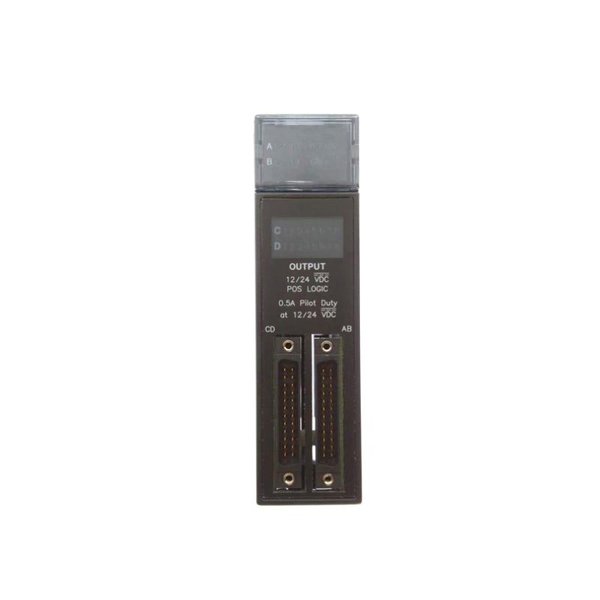

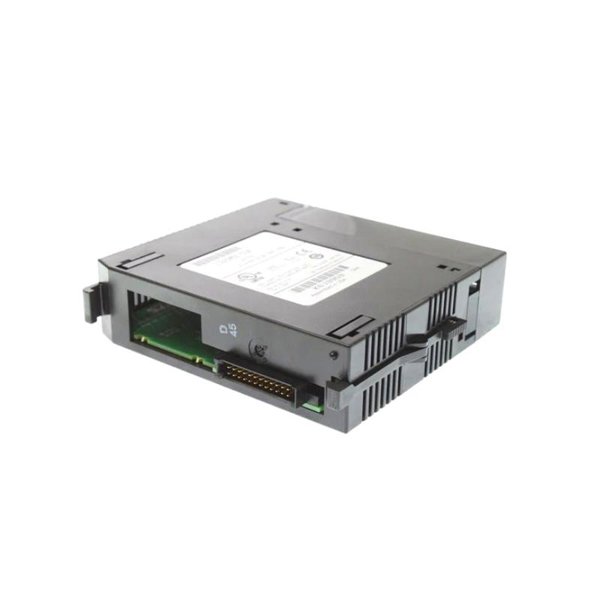

General Electric IC693MDL753K Positive Logic Output Module

The GE IC693MDL753K is a Positive Logic Output Module designed for use in GE’s Series 90-30 PLC system. It is an essential component for controlling high-speed outputs and managing logic signals in automated industrial processes. The module features 16 output points and is built with high reliability for use in environments requiring precise control and safe operation.

This module is particularly effective in applications where signal integrity and fast response times are critical, such as manufacturing, processing, and machine control systems. With a robust design and a wide operating temperature range, the IC693MDL753K is a dependable choice for a variety of industrial automation needs.

Product Specifications

Below is a detailed table of the product specifications:

Product Applications

The GE IC693MDL753K Positive Logic Output Module is commonly used in industries where precise control of outputs is necessary. Some key applications include:

1. Industrial Automation: The module can control various devices such as motors, actuators, and relays in an industrial setting.

2. Machine Control: It allows automated systems to trigger devices and manage operational sequences.

3. Building Automation: The module is ideal for controlling lighting, HVAC, and other systems in commercial buildings.

4. Manufacturing Systems: It plays a crucial role in controlling assembly lines and robotic systems.

5. Packaging and Process Control: The module ensures accurate operation of conveyors, sensors, and packaging machinery.

Product Advantages

1. High-Performance Outputs: The IC693MDL753K offers high-speed output control, crucial for time-sensitive industrial applications.

2. Reliability: Designed to operate in harsh environments, the module has been tested to ensure long-term reliability and durability.

3. Flexible Integration: Its compatibility with GE’s Series 90-30 PLC system makes it easy to integrate into existing automation networks.

4. Ease of Use: It provides straightforward installation and configuration, minimizing setup time and potential errors.

5. Energy Efficiency: With low power consumption, this module helps reduce overall energy usage in automation systems.

6. Wide Temperature Range: The module performs well even in extreme operating conditions, making it versatile for a variety of environments.

7. Compact Size: Its compact dimensions allow for efficient use of space in control panels and cabinets.

8. Safety: UL and CE certifications ensure the module meets strict safety standards.

FAQ

1. What is the maximum current rating per output on the GE IC693MDL753K?

   • The maximum current rating per output is 0.5 A.

2. What is the voltage range supported by the IC693MDL753K?

   • The supported voltage range is from 20.4V to 28.8V.

3. Can the IC693MDL753K be used in hazardous environments?

   • While the module is designed for industrial applications, for hazardous environments, you should consult the product documentation to ensure compatibility with specific safety standards.

4. How do I install the IC693MDL753K module?

   • The module can be easily mounted on a DIN rail as part of the GE Series 90-30 PLC system.

5. What is the weight of the IC693MDL753K module?

   • The module weighs 0.231 kg.

6. What are the operating temperature limits for the IC693MDL753K?

   • The module operates within the temperature range of 0°C to 60°C.

7. Can the IC693MDL753K be used in remote locations?

   • Yes, the module is suitable for use in remote locations as long as the operating conditions are within the specified limits.

8. Does the IC693MDL753K support high-speed outputs?

   • Yes, the module is designed for high-speed output control, making it ideal for real-time industrial applications.

9. Is there any certification for the GE IC693MDL753K module?

   • Yes, it is UL listed and CE certified.

10. What is the purpose of the Positive Logic Output Module in the GE PLC system?

    • The Positive Logic Output Module is used to control output devices in a PLC system, such as motors, relays, and sensors, ensuring precise automation control.
