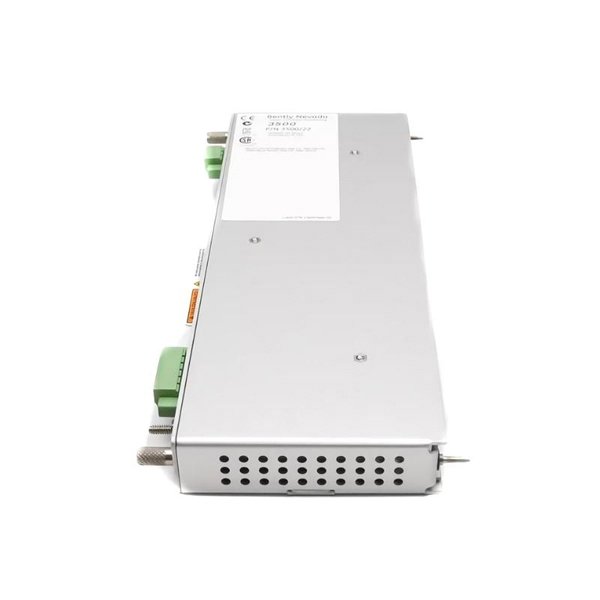

Bently Nevada 3500/22M 146031-01 Transient Data Interface I/O Module

The Bently Nevada 3500/22M 146031-01 Transient Data Interface I/O Module is a critical part of the Bently Nevada 3500 Series machinery protection and monitoring system. Designed to capture and interface transient vibration signals, this module enables precise detection of short-term mechanical events such as impacts, rubs, or bearing defects that are often missed by conventional continuous monitoring systems.

Built for integration into industrial machinery monitoring environments, the 3500/22M module collects high-resolution transient data, which is essential for early fault detection and effective predictive maintenance strategies. Its rugged design, combined with reliable communication capabilities, makes it suitable for demanding industries including power generation, oil and gas, petrochemicals, and heavy manufacturing.

This module contributes significantly to reducing unexpected equipment failures, improving operational safety, and optimizing maintenance scheduling.

Product Specifications

Product Applications

The 3500/22M Transient Data Interface I/O Module is extensively used in machinery monitoring scenarios where capturing transient vibration events is essential:

• Power Generation: Used to monitor turbines, generators, and other critical rotating machinery for early fault detection.

• Oil and Gas Industry: Supports compressors, pumps, and rotating equipment monitoring under harsh operating conditions.

• Petrochemical Plants: Enhances condition-based maintenance by detecting transient events signaling potential faults.

• Mining Industry: Helps monitor heavy equipment, minimizing unexpected downtime through early fault identification.

• Marine and Offshore: Provides transient vibration data for propulsion and auxiliary systems exposed to demanding environments.

• Manufacturing Facilities: Safeguards production machinery by identifying early-stage mechanical problems.

Product Advantages

• Early Fault Detection: Captures brief transient vibration events for early identification of mechanical issues.

• High-Speed Data Acquisition: Enables detailed recording of transient events critical to accurate diagnostics.

• Robust and Reliable: Designed for operation in extreme temperatures and high humidity environments.

• Seamless Integration: Fully compatible with the Bently Nevada 3500 Series platform for easy installation.

• Predictive Maintenance Support: Helps reduce downtime and repair costs through timely fault detection.

• Compact and Lightweight: Fits easily into standard 3500 racks and control panels.

• Energy Efficient: Low power consumption supports energy-conscious system design.

• Certified for Hazardous Areas: Meets necessary safety standards including ATEX certification where applicable.

• User-Friendly Diagnostics: Produces clear data facilitating maintenance decision-making.

• Industry Proven: Trusted worldwide in challenging industrial applications.

Frequently Asked Questions (FAQ)

1. What types of machinery faults does the 3500/22M module detect?

   It detects early-stage faults such as bearing defects, shaft rubbing, and transient impact events.

2. How does transient vibration data improve machine monitoring?

   It captures short, rapid vibration events that continuous monitoring may overlook, enabling earlier diagnosis.

3. Is the module compatible with other Bently Nevada equipment?

   Yes, it is specifically designed for seamless integration with the Bently Nevada 3500 Series.

4. Can the module operate in hazardous or explosive environments?

   Versions with ATEX certification are suitable for use in such environments.

5. What installation process is required?

   The module is installed into a 3500 Series rack and connected to sensors and communication buses.

6. Does the module provide real-time vibration data?

   It captures transient events rapidly, with data typically analyzed during scheduled diagnostics.

7. What operating conditions can the module withstand?

   It operates reliably from -20 °C to +70 °C and in up to 95% non-condensing humidity.

8. What maintenance is required for the module?

   Routine inspection and cleaning are sufficient to maintain optimal performance.

9. Can the transient data be accessed remotely?

   Yes, when connected to compatible monitoring systems, data can be remotely accessed and analyzed.

10. How does this module contribute to reducing downtime?

    By detecting early fault signals, it enables proactive maintenance that prevents unexpected equipment failures.
