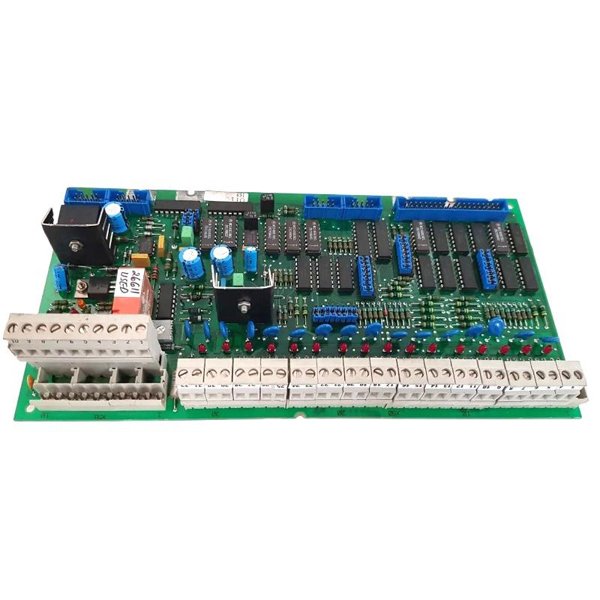

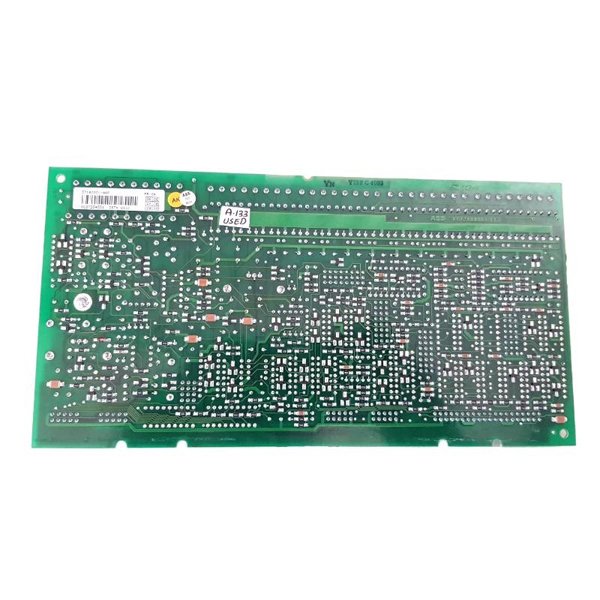

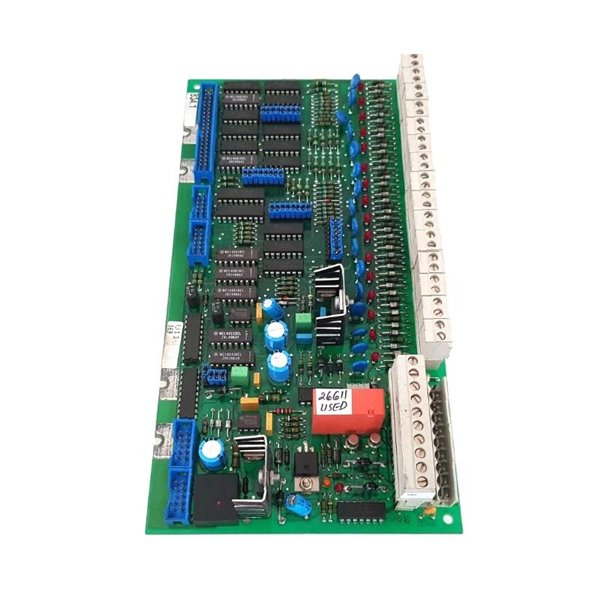

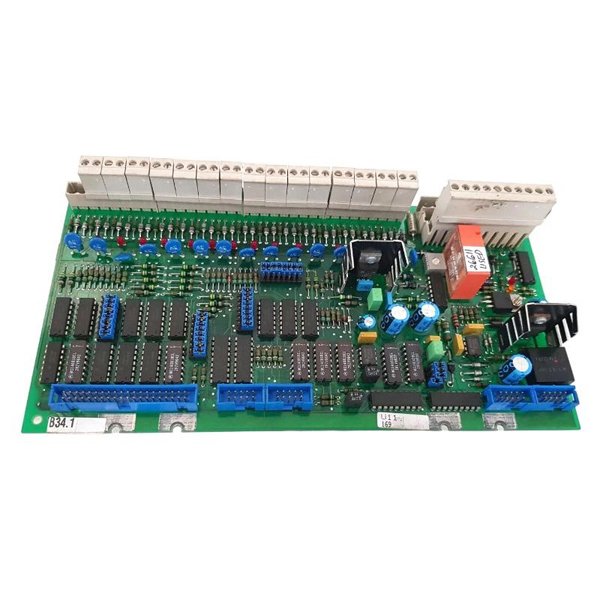

ABB DSTX W110 57160001-AAP Digital Input Board

The ABB DSTX W110 57160001-AAP is a robust and high-performance digital input board designed for industrial automation and process control environments. This module serves as a key component in ABB’s distributed control system (DCS) platforms, such as Advant OCS and Symphony series, enabling reliable acquisition and processing of binary signals from field devices.

The DSTX W110 provides multiple channels for discrete signal input, ensuring quick and accurate detection of equipment status, such as limit switches, push buttons, sensors, and relay contacts. ABB engineered this board with an emphasis on dependability, signal isolation, and seamless integration into existing control architectures.

It is well-suited for industries where continuous operation, safety, and real-time control are paramount. With its compact design and compliance to international standards, it continues to be a trusted module in automation systems worldwide.

Technical Specifications

Applications

The DSTX W110 57160001-AAP is commonly employed in a wide variety of industrial process control systems. It is particularly effective in applications requiring real-time monitoring of digital signals from field equipment. Common application areas include:

• Power generation and distribution (nuclear, hydro, thermal)

• Petrochemical and oil & gas facilities

• Steel and metal processing plants

• Water treatment and wastewater facilities

• Cement and mining operations

• Food & beverage production lines

• Pulp and paper industries

• Manufacturing automation systems

Product Advantages

• High Channel Density: Accommodates up to 32 digital inputs within a compact board, saving panel space.

• Industrial-Grade Reliability: Engineered for harsh operating environments with wide temperature and humidity tolerances.

• Isolation & Protection: Each channel is opto-isolated, enhancing signal integrity and protecting the system from electrical interference.

• Fast Signal Processing: Low latency input processing ensures responsive control action.

• Easy Integration: Designed for seamless operation with ABB’s Symphony and Advant control platforms.

• Modular Design: Allows for flexible system configuration and expansion.

• Compliance with Global Standards: Meets CE, RoHS, and ISO quality standards.

• Reduced Downtime: Built-in diagnostics simplify troubleshooting and maintenance.

Frequently Asked Questions (FAQ)

1. What control systems is the DSTX W110 compatible with?

It is primarily designed for ABB’s Symphony and Advant OCS systems.

2. How many digital inputs does the board support?

The board supports 32 isolated digital input channels.

3. What is the input voltage range?

Nominal input voltage is 24 V DC, with a tolerance of ±10%.

4. Can the module be hot-swapped during operation?

It is recommended to shut down the system before replacing the board to avoid potential issues.

5. Does the board include diagnostic features?

Yes, it includes per-channel diagnostics for easier fault identification.

6. How does the board ensure signal protection?

Each input channel is opto-isolated to guard against overvoltage and interference.

7. What type of signals can it receive?

It can receive dry contact signals from switches, sensors, and relay contacts.

8. Is the board suitable for high-vibration environments?

Yes, it is built to industrial-grade standards and can withstand typical plant conditions, including moderate vibration.

9. Does it require any additional software configuration?

Minimal configuration is required; it integrates directly with ABB’s DCS systems using standard configuration tools.

10. What maintenance does the module need?

Routine inspection for dust and wire connection integrity is usually sufficient; no moving parts means low maintenance.
