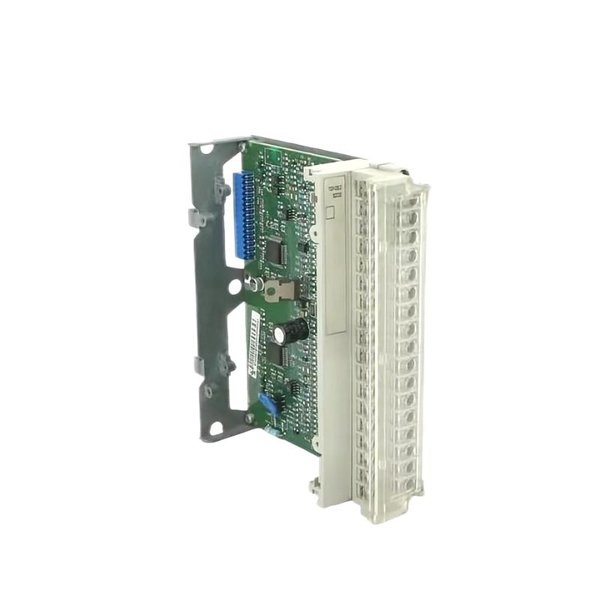

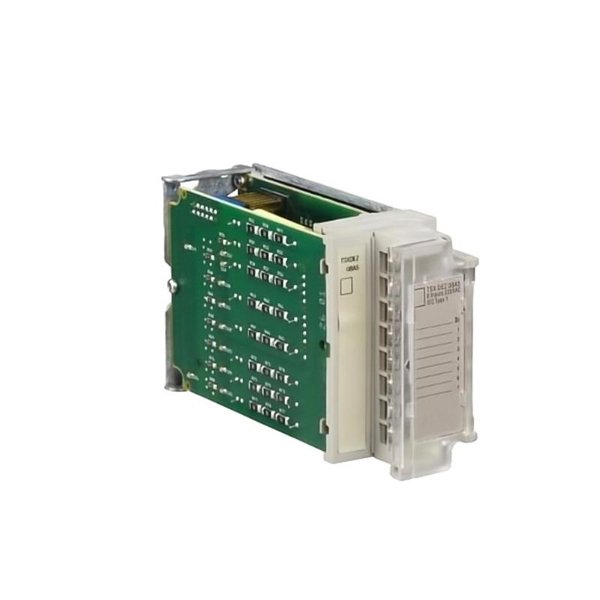

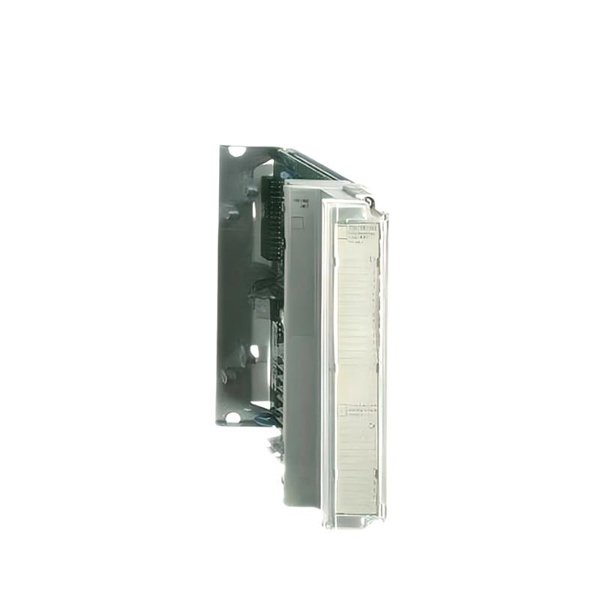

Schneider TSXDEZ32D2 Discrete Input Module

The Schneider Electric TSXDEZ32D2 is a high-density 32-channel discrete input module engineered for the Modicon TSX Premium PLC platform. This robust and efficient module is designed to acquire 24 V DC logic-level signals from field devices, including sensors, switches, and push-buttons. Each channel is individually isolated and filtered, ensuring reliable detection of digital signals even in electrically noisy industrial environments.

The TSXDEZ32D2 integrates seamlessly into a TSX Premium rack and communicates via the backplane bus. It supports fast signal acquisition, real-time response, and advanced diagnostics, making it a trusted solution in discrete automation applications across manufacturing, utilities, and process control systems.

This module is a cost-effective and scalable way to expand the digital input capability of TSX-based control systems without increasing panel space requirements.

Product Specifications

Product Applications

The TSXDEZ32D2 module is optimized for discrete signal acquisition in automation systems. Its design and feature set make it highly suitable for:

• Factory Automation

  Acquiring digital signals from limit switches, interlock devices, and operator push-buttons.

• Material Handling Systems

  Receiving status signals from proximity sensors and mechanical actuators.

• Packaging Machinery

  Monitoring conveyor sensors, fault alarms, and product detection switches.

• Infrastructure & Utilities

  Connecting with field contactors and protection relays in water treatment or energy systems.

• Automated Assembly Lines

  Detecting positioning feedback and start/stop signals from assembly stations.

• Energy Monitoring and Management

  Collecting binary data from smart energy devices, switches, or control breakers.

Product Advantages

1. High-Density Input

   Offers 32 input points in a compact form factor to optimize cabinet space.

2. Robust Industrial Design

   Engineered to operate reliably in environments with electrical noise and temperature variation.

3. Fast Switching Response

   4 ms typical delay ensures accurate and quick signal registration for real-time operations.

4. Independent LED Indication

   Each input has an individual LED, simplifying diagnostics and system monitoring.

5. Modular Scalability

   Easily adds digital input capacity to existing TSX Premium systems.

6. DIN Rail Compatibility

   Simplifies mounting and integration with existing TSX backplane infrastructure.

7. Field Proven

   Widely deployed in various industrial sectors with high reliability track record.

8. Flexible Input Logic

   Supports both positive and negative logic configurations (sourcing/sinking).

9. Maintenance Friendly

   Modular plug-in style simplifies module replacement and system maintenance.

10. Long Lifecycle Support

    Backed by Schneider’s commitment to long-term support for TSX Premium products.

Frequently Asked Questions (FAQ)

1. What is the voltage rating of the TSXDEZ32D2 module?

   It operates at 24 V DC with a range from 19.2 V to 30 V DC.

2. How many inputs are available on this module?

   The module supports 32 discrete input channels.

3. Are the inputs optically isolated?

   Yes, all channels feature optical isolation to enhance system safety and noise immunity.

4. Can this module detect both PNP and NPN signals?

   Yes, it is configurable for sourcing (PNP) or sinking (NPN) devices.

5. Is it suitable for fast switching applications?

   Yes, with a typical delay of 4 ms, it’s ideal for most industrial digital signals.

6. Does it require separate power for the inputs?

   Input power is typically sourced externally, but the module draws control power from the TSX backplane.

7. What PLC series is it compatible with?

   It is designed for the Schneider Modicon TSX Premium PLC series.

8. Are input statuses visible locally?

   Yes, every input channel has a corresponding LED indicator on the front panel.

9. How is the module mounted?

   It mounts via a DIN rail in a TSX Premium rack system.

10. Is the TSXDEZ32D2 CE certified?

    Yes, it carries CE, UL, and CSA certifications.
