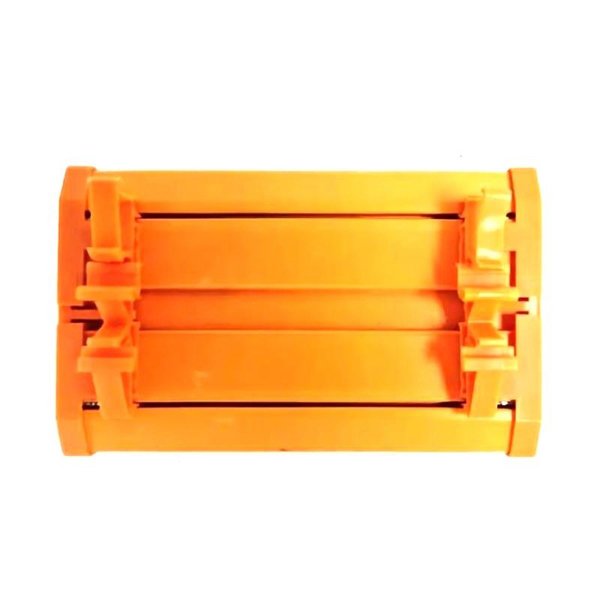

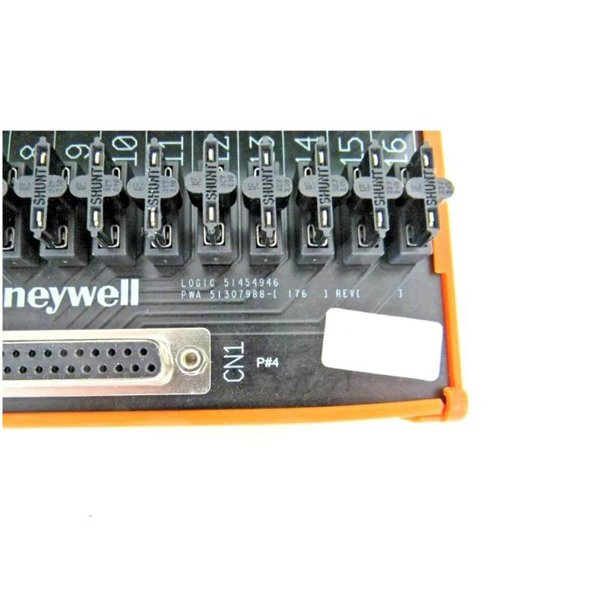

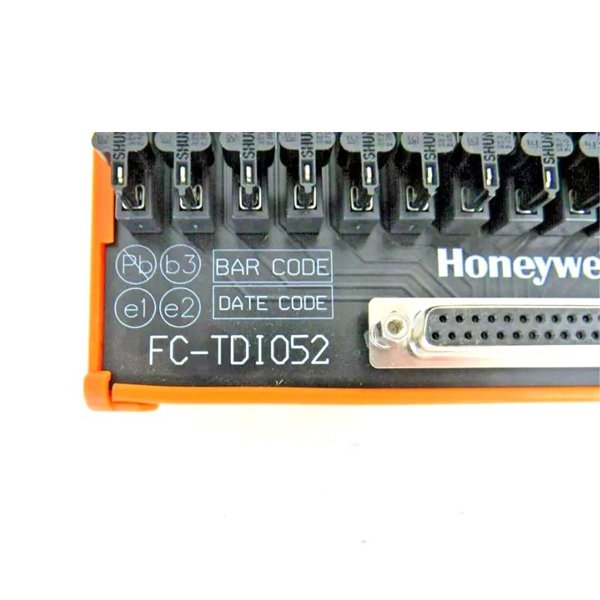

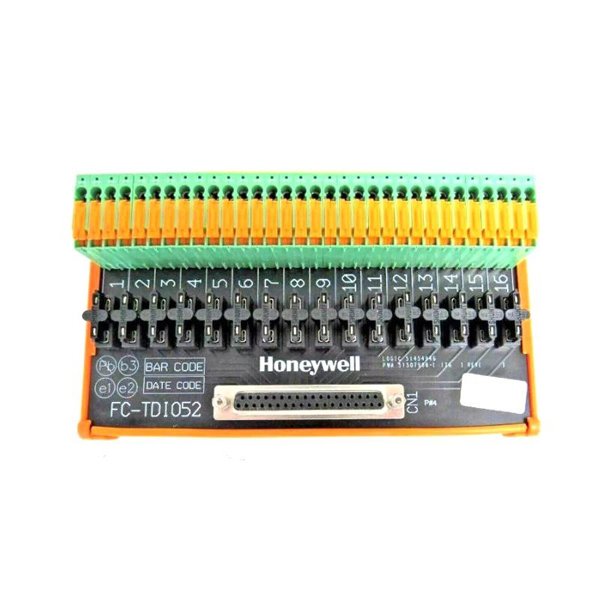

Honeywell FC-TDIO52 51307988-176 Safety Manager SC Hardware

The Honeywell FC-TDIO52 51307988-176 is a robust and safety-critical I/O module developed for use within Honeywell’s Safety Manager system, a TÜV-certified SIL 3 safety platform. This module is part of the Safety Manager SC (Smart Connection) hardware portfolio and is engineered for fail-safe control, diagnostics, and communication in high-risk environments, such as oil & gas, petrochemicals, power generation, and refining.

As a Redundant Digital and Analog Input/Output Module, the FC-TDIO52 ensures high system availability by providing redundant paths for both field signal acquisition and control. It supports dual-channel operation, self-diagnostics, and fail-safe states, allowing it to meet the most stringent IEC 61508 safety requirements.

Designed for Honeywell’s Experion PKS and Safety Manager environments, this module plays a central role in Safety Instrumented Systems (SIS) by helping prevent hazardous events and enabling safe emergency shutdown (ESD), fire and gas protection, and process interlocks.

Technical Specifications

Product Applications

The Honeywell FC-TDIO52 module is purpose-built for mission-critical safety systems and is deployed in hazardous industries where functional safety and redundancy are essential. Common applications include:

• Emergency Shutdown Systems (ESD) – Ensures safe shutdown of plants or units during process anomalies.

• Fire & Gas Detection Systems – Interfaces with gas sensors and flame detectors for rapid response to hazards.

• Burner Management Systems (BMS) – Provides fail-safe control over burner ignition, fuel flow, and purging.

• Critical Process Interlocks – Maintains logic control for safe process sequencing and interlocking.

• High-Integrity Pressure Protection Systems (HIPPS) – Controls high-pressure valves for overpressure protection.

• Tank Farms & Terminals – Manages overfill protection and leak detection with continuous safety diagnostics.

Product Advantages

• TÜV-Certified SIL 3 Compliance: Meets global safety standards for critical control systems.

• Redundant I/O Support: Dual-channel operation ensures maximum uptime and failure tolerance.

• Hot-Swappable Design: Facilitates maintenance without process interruption.

• Comprehensive Diagnostics: Real-time fault monitoring and LED indicators simplify troubleshooting.

• Versatile I/O Handling: Configurable to support analog and digital input/output for broad application.

• Reliable System Integration: Seamlessly integrates with Safety Manager and Experion PKS architectures.

Frequently Asked Questions (FAQ)

1. What is the primary use of the FC-TDIO52 module?

   It functions as a redundant, safety-certified I/O module for use in Honeywell Safety Manager systems.

2. Is the FC-TDIO52 module SIL-certified?

   Yes, it is TÜV-certified for SIL 3 in accordance with IEC 61508.

3. What types of signals can it handle?

   Both analog and digital I/O signals, configurable depending on project requirements.

4. Does it support redundancy?

   Yes, the module supports both channel-level and module-level redundancy.

5. Can it be hot-swapped?

   Yes, it is designed to be replaced without shutting down the system.

6. Which systems is it compatible with?

   It is specifically designed for Honeywell Safety Manager SC and Experion PKS.

7. Is it suitable for hazardous environments?

   Yes, it holds ATEX and CSA certifications, making it suitable for use in hazardous zones.

8. Does it provide built-in diagnostics?

   Yes, it includes internal self-checks and LED indicators for fault identification.

9. What is the power requirement?

   The module typically runs on 24 VDC and consumes less than 3 watts.

10. Where is it typically installed?

    Inside control cabinets as part of a larger Safety Manager I/O node or panel.
