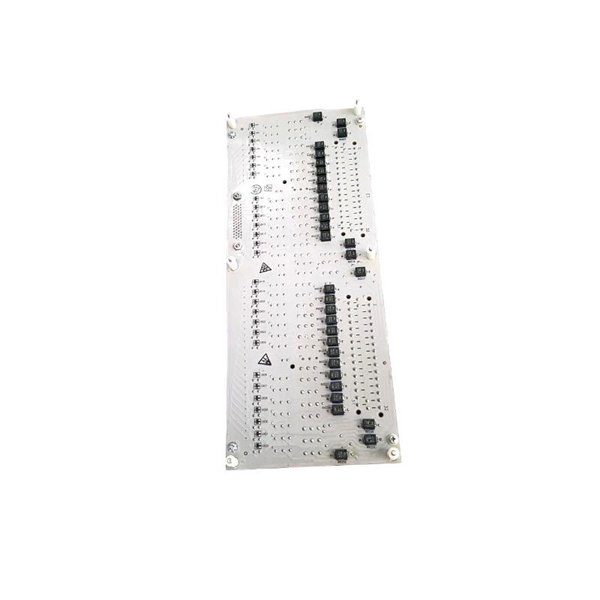

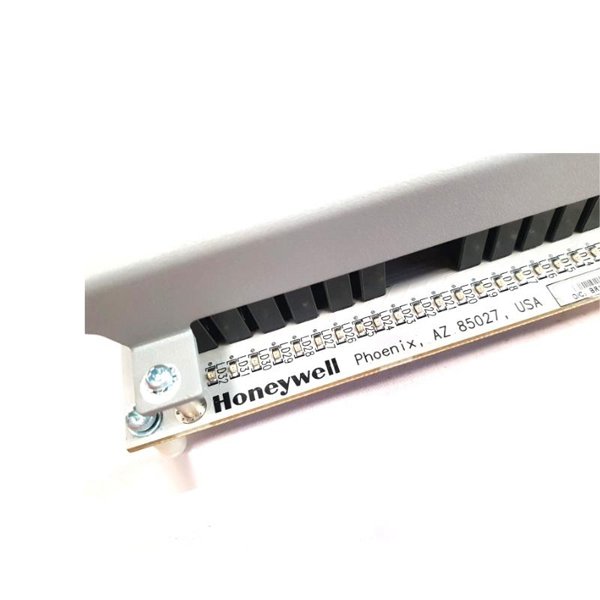

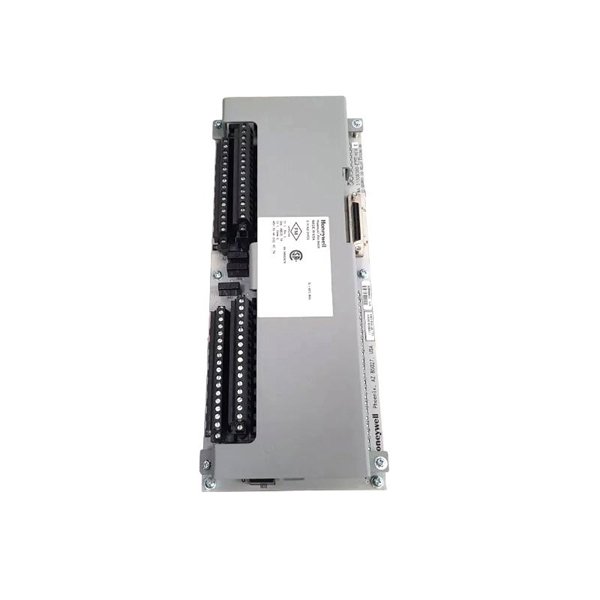

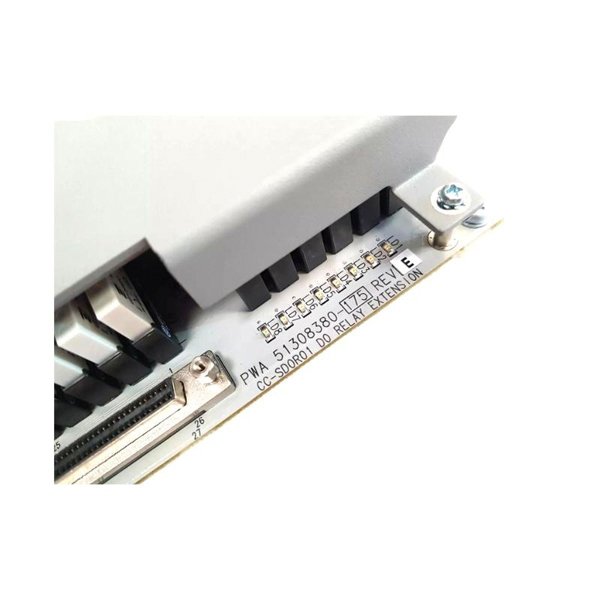

Honeywell DC-SDOR01 51308380-175 Digital Output Relay Module

The Honeywell DC-SDOR01 51308380-175 is a digital output relay module designed for industrial automation and process control systems. It provides reliable relay-based switching of field devices, ensuring safe and accurate operation.

Technical Specifications

Applications

• Industrial automation systems

• Safety interlock control

• Discrete device switching

• Process control systems

• Redundant safety circuits

Advantages

• High-reliability relay contacts

• Compact and lightweight design

• Easy integration into Honeywell control systems

• Wide operating temperature range

• Supports both DC and AC switching

• Proven performance in critical applications

FAQ

Q1: What is the primary function of the DC-SDOR01 module?

A1: It provides digital relay outputs to control field devices in automation systems.

Q2: How many outputs does this module have?

A2: It has 8 independent relay output channels.

Q3: Can it handle both DC and AC loads?

A3: Yes, it supports 24 VDC and 120 VAC switching.

Q4: What is the contact type used?

A4: The module uses SPDT (Single Pole Double Throw) relay contacts.

Q5: What is its maximum switching capacity?

A5: Up to 2A @ 30VDC or 0.5A @ 120VAC per channel.

Q6: Is this module hot-swappable?

A6: No, it should be installed and removed with the system powered down.

Q7: Does it have LED status indicators?

A7: Yes, each channel has an LED to indicate its status.

Q8: Is it suitable for safety-critical applications?

A8: Yes, it is designed for reliable operation in safety systems.

Q9: What is its recommended operating temperature?

A9: From 0°C to 60°C.

Q10: How much does the module weigh?

A10: Approximately 0.3 kg.
