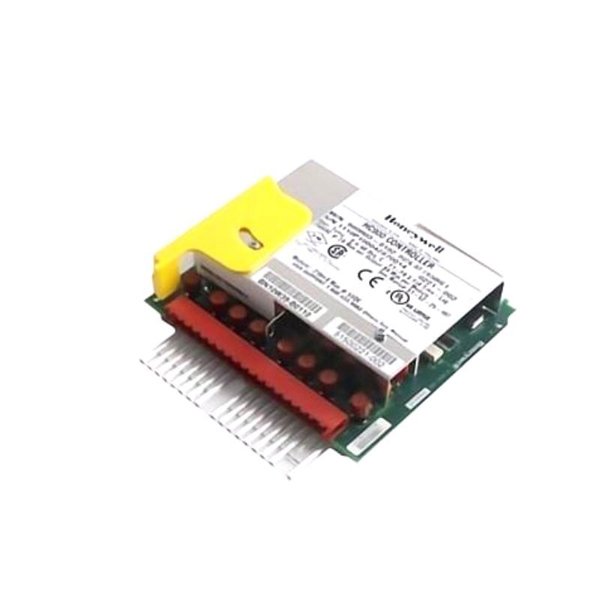

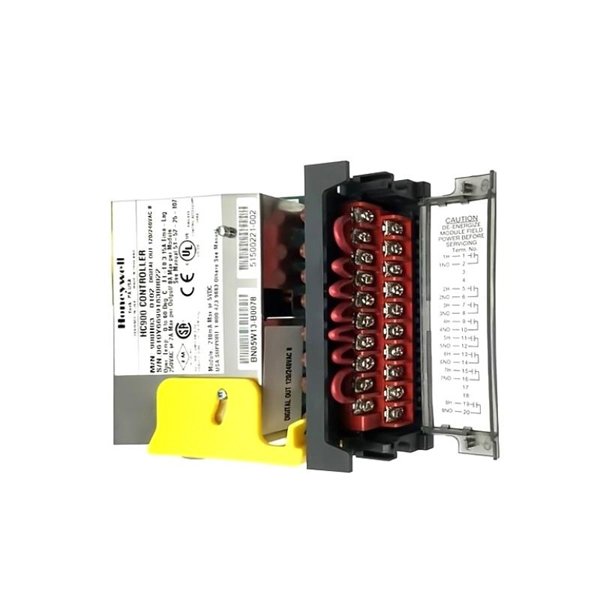

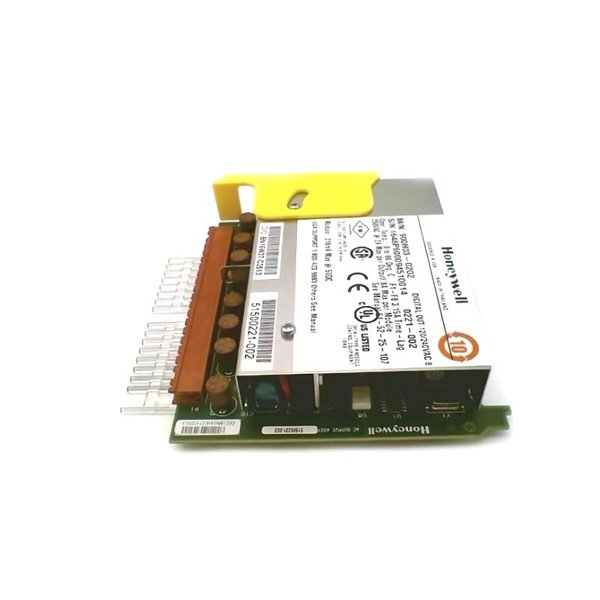

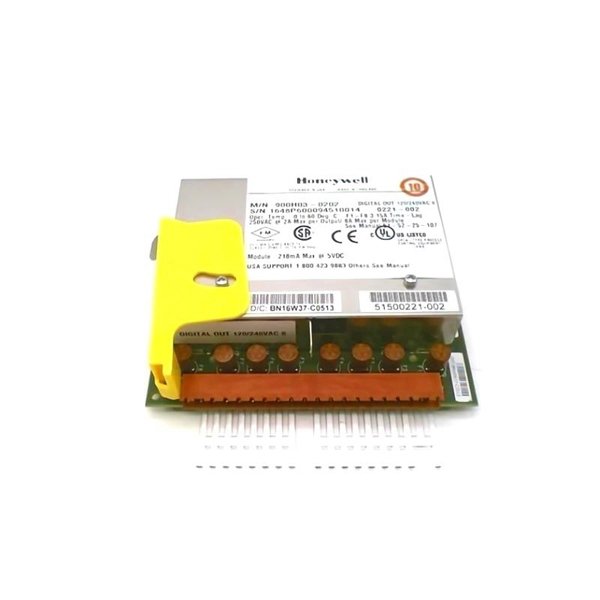

Honeywell 900H03-0202 Digital Output Module

The Honeywell 900H03-0202 Digital Output Module is a high-performance module designed to facilitate the control and monitoring of digital output devices in industrial control systems. This module is part of Honeywell’s extensive range of field devices and is typically used in automation systems for controlling machinery, actuators, or other devices that operate on digital signals.

This module offers reliability, ease of integration, and robust performance, making it an excellent choice for modern automation systems. It is optimized for use with Honeywell’s control systems but can be integrated into other compatible platforms as well.

Product Specifications

The following table outlines the key specifications for the Honeywell 900H03-0202 Digital Output Module:

Applications of the Honeywell 900H03-0202 Digital Output Module

This module is suitable for a wide range of applications in industrial automation and control systems:

• Factory Automation: Control of actuators and other machinery components.

• Process Control: Digital output control in process automation applications such as chemical plants, oil refineries, or power stations.

• Building Management Systems (BMS): For controlling HVAC systems, lighting, and security devices.

• Control Systems Integration: Integration into larger SCADA and DCS systems for controlling digital outputs.

• Energy Management: Manage power control systems in industrial energy applications.

Advantages of the Honeywell 900H03-0202 Digital Output Module

1. High Durability: Built to withstand harsh industrial environments with an operational temperature range from -20°C to 60°C.

2. Flexibility: Compatible with a range of control systems and can be easily integrated into existing automation setups.

3. Compact Design: The small, space-saving form factor makes it ideal for applications with space constraints.

4. Ease of Installation: Supports both DIN rail and panel mounting options for flexible installation configurations.

5. Reliable Output: Provides consistent and reliable control for digital output devices such as actuators and relays.

6. Low Power Consumption: With a power consumption of just 2 W, it ensures minimal energy usage.

7. High Output Capacity: Supports up to 8 digital outputs with each output capable of handling up to 2 amps.

Frequently Asked Questions (FAQ)

1. What is the maximum current rating per output channel?

   • Each output channel can handle a maximum of 2 Amps.

2. What is the operating voltage for the Honeywell 900H03-0202?

   • The module operates at 24 VDC.

3. Can the module be used in extreme temperature environments?

   • Yes, it operates in temperatures from -20°C to 60°C.

4. How is the Honeywell 900H03-0202 mounted?

   • The module can be mounted on a DIN rail or directly to a panel.

5. Is the module compatible with other control systems besides Honeywell’s?

   • Yes, it can be integrated into various industrial control systems that support digital outputs.

6. What kind of output does this module provide?

   • It provides dry contact (SPDT) outputs.

7. What is the typical application for this module?

   • It is primarily used in factory automation, process control, and building management systems.

8. Does it support high-speed digital signaling?

   • Yes, the module is designed for standard digital output control in industrial applications.

9. What is the power consumption of the module?

   • It has a power consumption of 2 W.

10. What are the size dimensions of the module?

    • The module’s dimensions are 137 × 35.6 × 137.16 mm.
