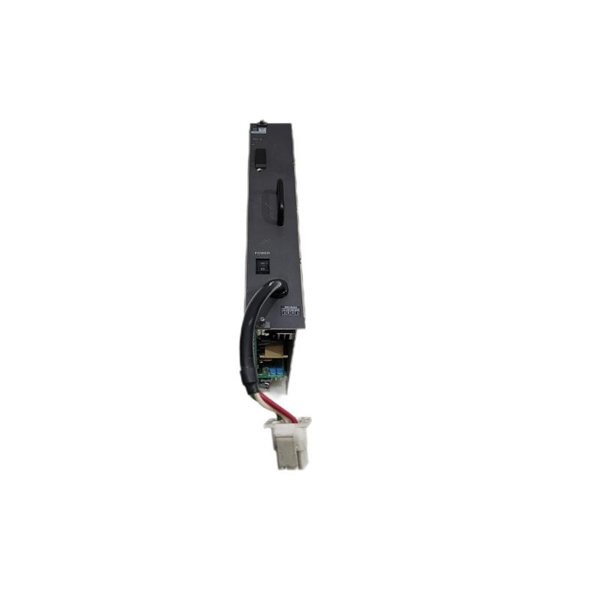

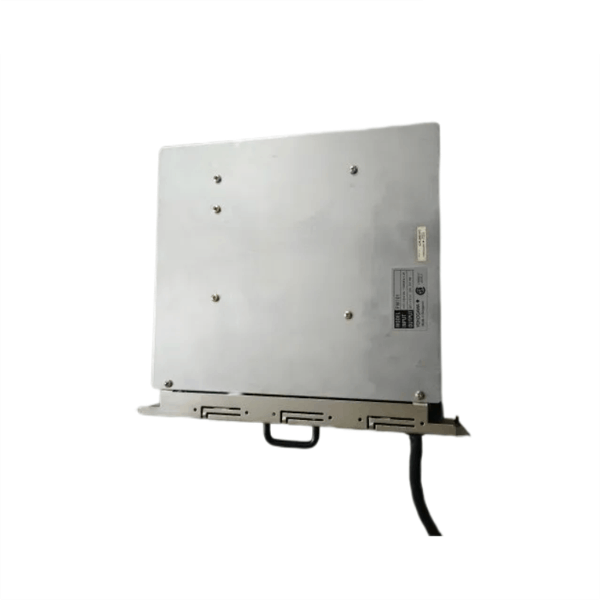

Yokogawa PW701 Power Module

The PW701 is typically installed in a Field Control Unit (FCU) base and provides regulated DC voltage to the mounted I/O modules. It is a vital component for maintaining the integrity of control processes in power plants, chemical plants, oil & gas refineries, and other heavy industrial environments.

Product Advantages

• High Reliability and Redundancy:

  Designed for industrial-grade continuous operation with optional redundancy to ensure no downtime even during individual module failure.

• Stable Voltage Output:

  Ensures clean, filtered DC power output essential for maintaining sensitive I/O and CPU operations within the DCS framework.

• Hot-Swappable Design:

  The module supports hot-swapping, allowing maintenance or replacement without shutting down the system.

• Compact and Modular:

  Saves panel space due to its compact footprint and modular assembly, making it ideal for both upgrades and new installations.

• Diagnostic Feedback:

  Equipped with LED indicators and internal fault detection for real-time diagnostics and maintenance planning.

Technical Specifications

Applications

The Yokogawa PW701 is primarily used in industrial automation systems where high-availability and continuous power delivery are crucial. Typical applications include:

• Oil & Gas Refineries: For powering mission-critical process I/O controllers.

• Petrochemical Plants: Used in control cabinets for reliable DCS performance.

• Power Generation Facilities: Powers control systems monitoring turbines and auxiliary equipment.

• Chemical Production Units: Delivers consistent voltage to safety and process controllers.

• Water Treatment Plants: Integral in managing automated water purification and distribution.

• Pharmaceutical Manufacturing: Powers validated automation systems ensuring compliance and product quality.

FAQs

Q1: What systems is the PW701 compatible with?

A1: The PW701 is designed for Yokogawa’s CENTUM VP control system. It is compatible with the Field Control Unit baseplates of this series.

Q2: Can I replace the PW701 while the system is running?

A2: Yes, the PW701 supports hot-swapping, allowing you to replace the unit without interrupting operations, provided redundancy is in place.

Q3: What happens if the power supply fails?

A3: If configured in a redundant mode with another PW701 unit, the system automatically switches to the backup unit, avoiding downtime.

Q4: How do I know if the PW701 is operating correctly?

A4: The front panel includes LED indicators for power status and faults, making it easy to monitor the module’s condition.

Q5: Can I use a third-party power supply instead of the PW701?

A5: It is not recommended. The PW701 is designed specifically for Yokogawa systems and provides optimized compatibility and protection.

Q6: What type of cooling does the PW701 require?

A6: The module is passively cooled by natural convection. No external fans or ventilation systems are needed under normal operating conditions.

Q7: How many PW701 modules can I use in one system?

A7: Typically, two PW701 modules are used in a redundant setup for maximum reliability in each FCU chassis.

Q8: Is there any configuration required after installation?

A8: No complex configuration is required. Once installed and powered, the module automatically supplies voltage to the FCU.

Q9: What kind of maintenance does the PW701 require?

A9: Maintenance includes periodic inspection of connectors, cleaning dust from the surface, and checking the LED status for faults.

Q10: Where can I find replacement parts for the PW701?

A10: Replacement modules and accessories are available through authorized Yokogawa distributors or certified system integrators.
