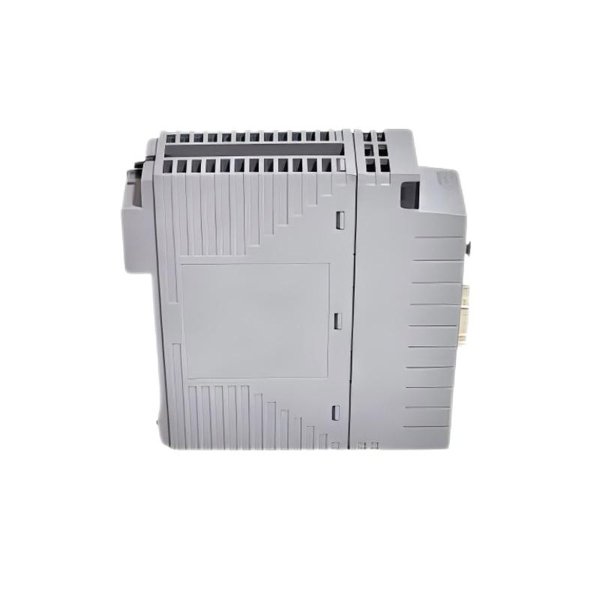

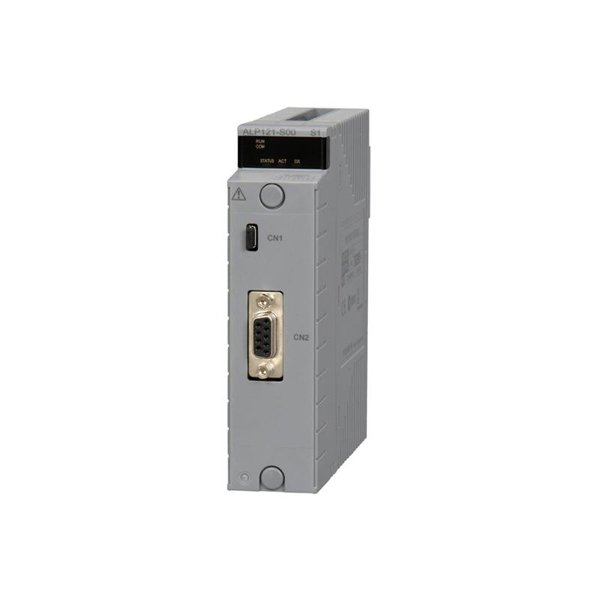

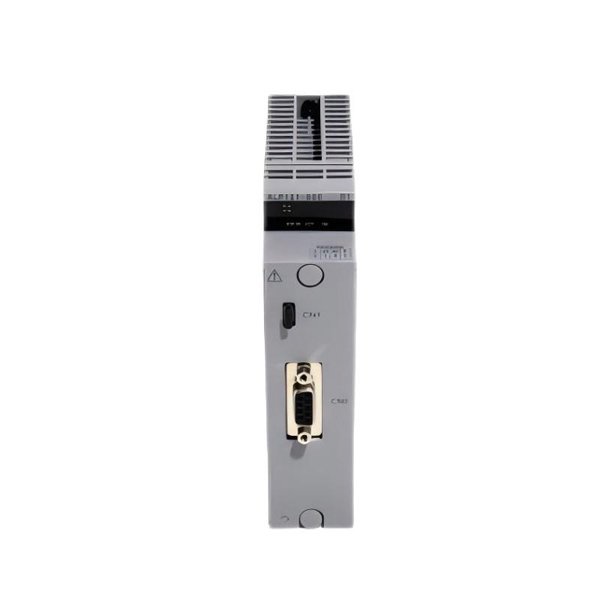

Yokogawa ALP121 Communication Module

The Yokogawa ALP121 Communication Module is a robust and reliable PROFIBUS-DP interface designed specifically for integration with Yokogawa’s CENTUM VP and CENTUM CS 3000 distributed control systems. As a master communication module, it enables smooth, real-time data exchange between the control system and field devices via the PROFIBUS-DP protocol.

The ALP121 supports both DP-V0 and DP-V1 communication standards, allowing it to handle cyclic and acyclic data transfers, which are essential for process control and device diagnostics. This module is built to perform reliably in harsh industrial environments and supports hot standby redundancy to maximize system availability. Its compact form factor, advanced diagnostics, and seamless compatibility with Yokogawa engineering tools make it a preferred choice for process automation applications requiring high integrity and flexibility.

Technical Specifications

Applications

The ALP121 module is widely used in industries where reliable and high-speed PROFIBUS communication is critical. Common applications include:

• Oil & Gas

  Controls and monitors field devices such as valve positioners, flow meters, and analyzers in refining and petrochemical processes.

• Power Generation

  Supports turbine and boiler instrumentation, enabling precise control and real-time monitoring.

• Chemical and Petrochemical Plants

  Provides digital communication to field instruments to improve process efficiency and safety.

• Pharmaceutical Manufacturing

  Ensures accurate and traceable communication with compliant field devices for strict quality control.

• Food & Beverage Processing

  Facilitates integration of field devices across complex processing lines, improving consistency and control.

• Water and Wastewater Treatment

  Manages distributed sensors and actuators for remote monitoring and control.

Key Advantages

• Reliable PROFIBUS-DP Master Communication

  Supports DP-V0 and DP-V1 protocols, enabling robust cyclic and acyclic data exchange.

• Hot Standby Redundancy

  Reduces system downtime by enabling seamless switchover to a backup module.

• Comprehensive Diagnostic Support

  Provides detailed communication and device status information to simplify troubleshooting.

• Wide Device Compatibility

  Works with a broad range of PROFIBUS-DP compliant devices, including third-party instruments.

• Compact Design

  Space-saving form factor enables efficient use of control room rack space.

• Integrated Engineering Tools

  Compatible with Yokogawa’s suite of configuration and monitoring tools for easy setup and maintenance.

Frequently Asked Questions (FAQ)

1. What is the main purpose of the ALP121 module?

   It serves as a PROFIBUS-DP master, facilitating communication between the control system and field devices.

2. How many devices can the ALP121 handle on a PROFIBUS segment?

   It supports up to 32 devices per segment without the need for repeaters.

3. Does the ALP121 support redundant operation?

   Yes, it supports hot standby redundancy to enhance system reliability.

4. Which control systems is the ALP121 compatible with?

   The module is compatible with Yokogawa CENTUM VP and CENTUM CS 3000 systems.

5. What communication speeds does the ALP121 support?

   It supports baud rates from 9.6 kbps up to 12 Mbps.

6. Can the ALP121 communicate with devices from other manufacturers?

   Yes, it supports any PROFIBUS-DP compliant field devices.

7. How is the module configured?

   Configuration can be done through Yokogawa Engineering Tool, PRM software, or FDT/DTM-compliant tools.

8. What kind of diagnostics does the ALP121 provide?

   It offers diagnostics on communication status, device health, and network events.

9. Is the ALP121 suitable for harsh industrial environments?

   Yes, it operates reliably between 0°C to 50°C with humidity tolerance up to 95% non-condensing.

10. What physical connection does the ALP121 use?

    It uses a D-sub 9-pin connector, with an optional terminal block adapter for field wiring.
