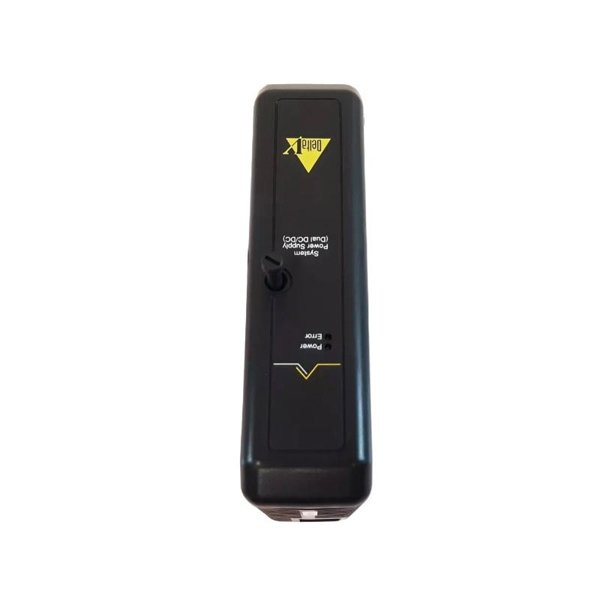

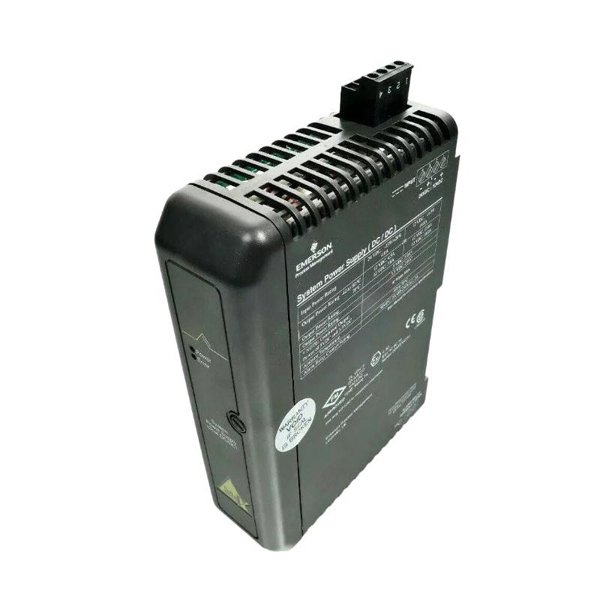

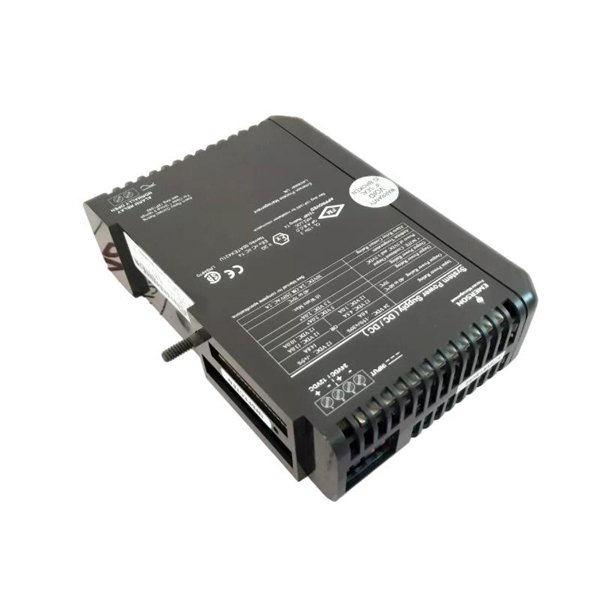

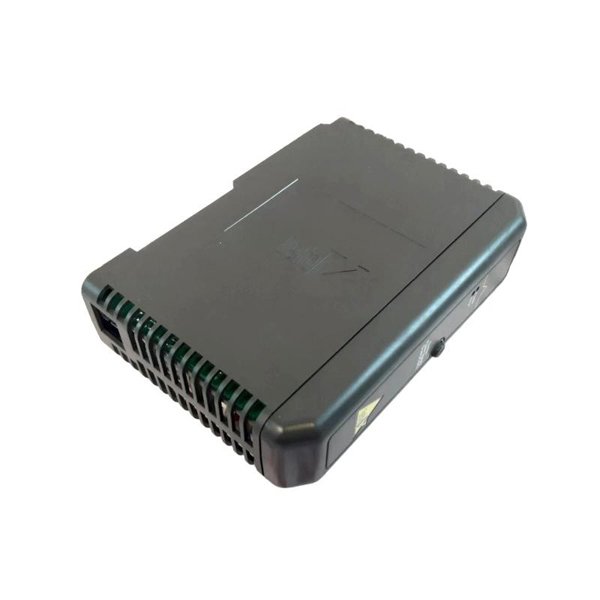

Emerson KJ1501X1-BC2 12P2186X042 System DC Power Supply

The Emerson KJ1501X1-BC2 12P2186X042 System DC Power Supply is a high-performance power module designed to provide stable DC voltage for Emerson DeltaV control systems. Engineered to deliver reliable power to controllers, I/O cards, and communication modules, it plays a critical role in maintaining continuous operation of process automation systems.

The KJ1501X1-BC2 offers industrial-grade power conversion with advanced protection features, ensuring uninterrupted operation even under challenging conditions such as power fluctuations, high load demands, and industrial electrical noise. Its modular and redundant-ready design makes it a core component of Emerson’s DeltaV architecture, ensuring maximum uptime and operational safety in critical industries.

Product Specifications

Product Applications

• DeltaV Control Systems: Provides regulated DC power for controllers, I/O modules, and network hardware.

• Process Automation Plants: Ensures continuous power delivery to maintain critical process operations.

• Oil & Gas Industry: Used in offshore and onshore platforms where reliable power supply is essential.

• Power Generation Units: Supplies stable voltage to turbine and generator control systems.

• Chemical and Petrochemical Plants: Powers distributed control systems in hazardous industrial environments.

• Industrial Manufacturing: Supports high-availability control architectures with redundant power options.

Product Advantages

• High Power Stability: Provides clean, regulated DC voltage for sensitive control equipment.

• Redundant Operation: Supports dual power supply configurations for maximum uptime.

• Industrial-Grade Design: Built to withstand harsh electrical environments and fluctuating power conditions.

• Advanced Protection: Integrated overvoltage, overload, and short-circuit protection for system safety.

• Efficient Conversion: High power efficiency reduces heat generation and energy consumption.

• Seamless Integration: Designed specifically for Emerson DeltaV control platforms, ensuring easy deployment.

FAQ

1. What is the primary function of the KJ1501X1-BC2 power supply?

   It provides stable DC voltage to DeltaV controllers, I/O cards, and communication modules.

2. What is the nominal DC output voltage of the KJ1501X1-BC2?

   The output voltage is 24V DC with low ripple for clean power delivery.

3. Does the KJ1501X1-BC2 support redundant power supply configurations?

   Yes, it can operate in parallel with another power module for redundancy.

4. What type of protection features are built into the KJ1501X1-BC2?

   It includes overvoltage, overload, short-circuit, and thermal protection circuits.

5. Is the KJ1501X1-BC2 compatible with all DeltaV systems?

   Yes, it is fully compatible with standard DeltaV controllers and I/O subsystems.

6. What is the maximum output current supported by the KJ1501X1-BC2?

   It can supply up to 10A of regulated DC current.

7. Does the KJ1501X1-BC2 provide electrical isolation between input and output?

   Yes, it provides galvanic isolation to protect control circuits from AC mains disturbances.

8. How does the KJ1501X1-BC2 handle power fluctuations?

   It uses industrial-grade filtering and regulation circuits to maintain stable output under varying input conditions.

9. Can the KJ1501X1-BC2 be hot-swapped during system operation?

   No, the system must be powered down before replacing the power module.

10. What is the efficiency rating of the KJ1501X1-BC2?

    It typically achieves over 90% efficiency, minimizing energy losses and heat generation.
