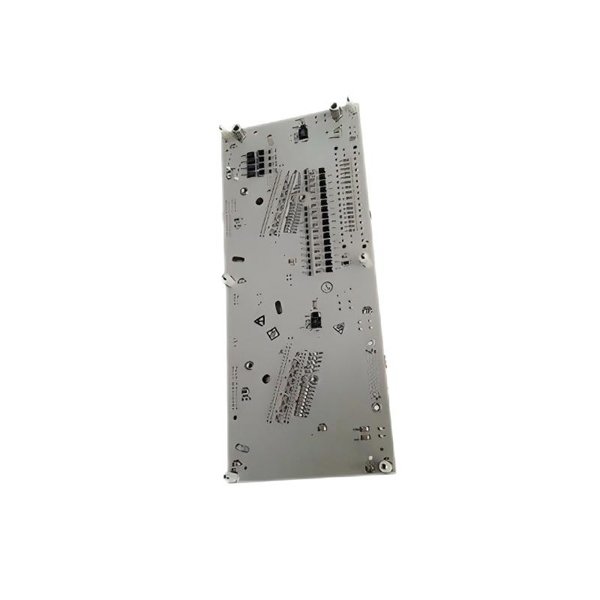

Honeywell CC-GDIL21 51306319-175 Digital Input Module

The Honeywell CC-GDIL21 is a high-performance digital input module designed for integration within the Experion Process Knowledge System (PKS). Engineered to handle multiple isolated digital input channels, this module is ideal for acquiring data from a wide range of field devices such as switches and sensors in industrial automation environments.

Manufactured by Honeywell, a global leader in industrial automation, the CC-GDIL21 ensures reliable operation, high accuracy, and seamless integration into existing control systems. Its compact design and robust features make it suitable for applications where space is limited, and performance is critical.

Technical Specifications

Applications

The CC-GDIL21 module is versatile and can be employed in various industrial sectors. Its primary applications include:

• Factory Automation: Acquires data from switches and sensors for monitoring and control.

• Process Control: Monitors discrete signals within industrial processes.

• Building Automation: Monitors environmental conditions for HVAC systems.

• Water and Wastewater Treatment: Monitors levels, flow rates, and quality parameters.

• Oil and Gas Industry: Monitors drilling parameters and safety systems.

• Power Generation: Acquires data from turbines, generators, and related systems.

Advantages

• High Accuracy: Provides precise measurements with rapid response time.

• Robust Isolation: Ensures reliable operation and protection with 500 VAC isolation.

• Versatile Input: Supports both dry and wet contact inputs from various field devices.

• Seamless Integration: Fully compatible with Honeywell’s Experion PKS, facilitating easy system integration.

• Durable Design: Built to withstand harsh industrial environments with wide temperature and humidity ranges.

• Compact Size: Space-saving design suitable for installations with limited space.

• Certified Quality: Meets international safety and quality standards (CE, UL, CSA).

Frequently Asked Questions (FAQ)

1. What is the primary function of the CC-GDIL21 module?

   It serves as a digital input module, acquiring signals from various field devices for processing and control.

2. How many input channels does the CC-GDIL21 support?

   It supports 16 isolated digital input channels.

3. What types of input signals are compatible with the module?

   The module accepts both dry contact and wet contact signals.

4. What is the response time of the module?

   The module offers a response time of less than 10 milliseconds.

5. Is the module compatible with Honeywell’s Experion PKS?

   Yes, it is fully compatible with Honeywell’s Experion PKS.

6. What are the environmental operating conditions?

   Operating temperature ranges from -40°C to +70°C, with humidity between 5% and 95% RH (non-condensing).

7. How is the module mounted?

   It can be mounted on a DIN rail or panel, offering flexibility in installation.

8. Is the module certified for international use?

   Yes, it carries CE, UL, and CSA certifications.

9. What is the weight and size of the module?

   It weighs 0.5 kg and measures 125 x 40 x 130 mm.

10. Can the module be used in hazardous environments?

    The module is designed for industrial environments; however, specific hazardous area certifications should be verified based on application requirements.
