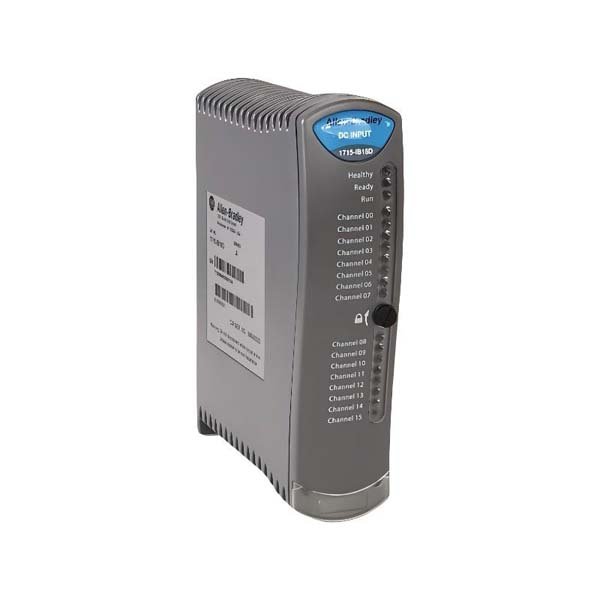

Allen-Bradley 1715-IB16D DC Input Module

The Allen-Bradley 1715-IB16D is a 16-point DC input module for the PLC-5 MicroLogix/Small PLC platform. From an engineer’s perspective, this module offers precise, reliable input monitoring for discrete DC signals, making it ideal for control systems where signal integrity and rapid response are essential. Field experience shows that the 1715-IB16D is durable, simple to install, and easy to maintain, which is critical in industrial environments with frequent wiring or device changes.

Technical Specifications

Applications

• Monitoring DC discrete field devices such as switches, sensors, or contactors

• MicroLogix or small PLC-based automation systems in packaging, material handling, or process control

• Expansion of existing PLC-5 or 1715 I/O systems where additional DC inputs are needed

• Legacy installations requiring reliable and maintainable input modules

• Systems with frequent maintenance cycles or field testing needs

Advantages

• High reliability: Designed for continuous operation under industrial conditions

• Fast response: Low input delay suitable for real-time control applications

• Channel isolation: Reduces cross-talk and ensures accurate signal acquisition

• Compact design: Minimal footprint allows high-density I/O in small control panels

• Field-serviceable: LED indicators simplify troubleshooting and reduce downtime

• Durable construction: Long lifecycle and consistent performance under vibration or temperature fluctuations

FAQs

1. How many DC input points does the 1715-IB16D provide?

   – 16 discrete DC input channels.

2. What is the nominal operating voltage?

   – 24 VDC nominal, operational range 20–30 VDC.

3. Does the module provide channel isolation?

   – Yes, all inputs are electrically isolated from the backplane.

4. Can it be hot-swapped during operation?

   – No, power must be removed before installation or removal.

5. What is the typical input current per channel?

   – Approximately 7 mA.

6. Which PLC platforms are compatible?

   – 1715 series racks and MicroLogix small PLC systems.

7. Is there LED indication for troubleshooting?

   – Yes, each input channel has an LED status indicator.

8. What is the maximum operating temperature?

   – Up to 55°C.

9. What is the module weight?

   – Approximately 0.42 kg.

10. Can it be used in vibration-prone environments?

    – Yes, the module is mechanically robust and rated for industrial cabinets.
