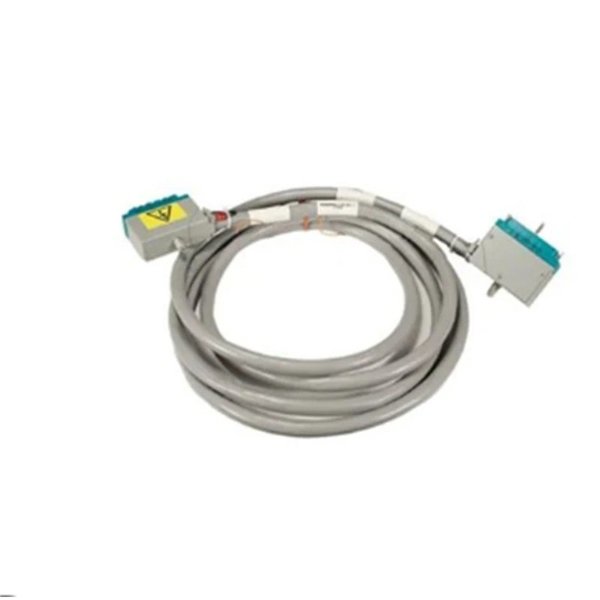

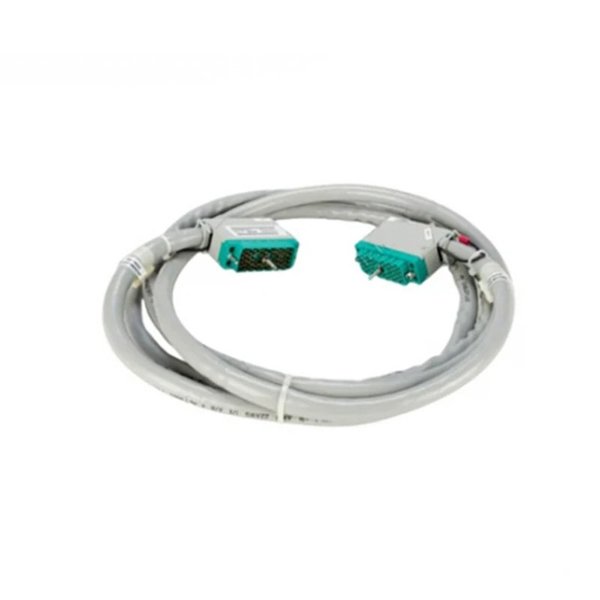

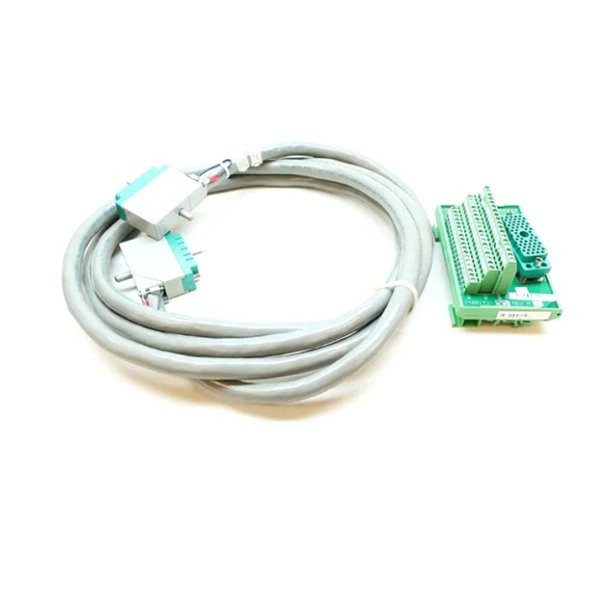

Triconex 4000103-516 Cable Assembly

The Triconex 4000103-516 is a high-performance safety and control system component designed to meet the most stringent requirements in critical industrial environments. Built by Schneider Electric, this module is part of the renowned Triconex safety system line, which is widely used in industries where safety and reliability are paramount, such as oil and gas, power generation, chemical plants, and nuclear facilities.

This particular model acts as a key element within the Triconex architecture, ensuring fault-tolerant, deterministic, and secure control processes. It supports the implementation of safety instrumented functions (SIF) and provides enhanced diagnostics and real-time monitoring capabilities. The robust design allows it to operate continuously in harsh conditions with minimal maintenance, reducing downtime and increasing overall operational safety.

Product Advantages

• High Reliability: The 4000103-516 module offers triple modular redundancy (TMR) architecture, providing fault tolerance and eliminating single points of failure, essential for safety-critical applications.

• Real-time Processing: Designed for deterministic and real-time control, it ensures rapid and accurate safety decisions in complex industrial processes.

• Scalability: Integrates seamlessly within Triconex systems, allowing for flexible expansion based on plant requirements.

• Diagnostic Capabilities: Built-in advanced diagnostics facilitate preventive maintenance and reduce unexpected shutdowns.

• Robust Design: Engineered to withstand harsh industrial environments, including vibration, temperature extremes, and electromagnetic interference.

• Compliance: Meets global safety standards such as IEC 61508 SIL 3, ensuring suitability for critical safety applications.

Technical Specifications

Product Applications

The Triconex 4000103-516 module finds its applications in a wide array of safety-critical industrial environments:

• Oil and Gas Industry: Used for blowout prevention systems, emergency shutdown systems (ESD), and fire & gas detection systems.

• Power Generation: Monitors and controls safety functions in nuclear, thermal, and hydroelectric power plants.

• Chemical and Petrochemical Plants: Controls critical process shutdowns and safety interlocks.

• Pharmaceutical Manufacturing: Ensures compliance with safety standards during sensitive production processes.

• Mining Industry: Controls ventilation, fire detection, and safety alarms in hazardous underground environments.

• Water and Wastewater Treatment: Implements safety logic in treatment facilities to protect personnel and equipment.

Installation Instructions

1. Site Preparation: Ensure the installation environment meets temperature, humidity, and vibration standards as specified.

2. Mounting: Install the module on a DIN rail or panel mount, ensuring secure mechanical fixation.

3. Power Connection: Connect the 24 V DC power supply securely, respecting polarity and ensuring stable voltage.

4. Signal Wiring: Connect digital and analog input/output wiring as per the wiring diagram specific to the Triconex system.

5. System Integration: Connect the module to the Triconex communication bus for system-wide data exchange.

6. Testing and Commissioning: Conduct thorough system tests including loop checks, diagnostics verification, and safety function validation.

7. Maintenance: Regularly inspect wiring connections and module status LEDs. Use diagnostic software tools for performance monitoring.

FAQ (Frequently Asked Questions)

Q1: What safety certification does the Triconex 4000103-516 have?

A1: The module is certified to IEC 61508 SIL 3, suitable for high-integrity safety applications.

Q2: Can this module operate in extreme temperatures?

A2: Yes, it is rated to operate between -40°C and +70°C, making it suitable for most industrial environments.

Q3: How is fault tolerance achieved in this module?

A3: The module uses triple modular redundancy (TMR), meaning three processors run in parallel to detect and isolate faults.

Q4: What types of inputs and outputs does it support?

A4: It supports both digital and analog inputs and outputs, allowing integration with various field devices.

Q5: Is remote monitoring possible?

A5: Yes, the module supports integration with Triconex communication networks, enabling remote diagnostics and monitoring.

Q6: How heavy is the module?

A6: The module weighs 3 kg.

Q7: What power supply voltage is required?

A7: The module requires a stable 24 V DC power supply.

Q8: Can the module be mounted on a standard DIN rail?

A8: Yes, it supports DIN rail mounting as well as panel mounting options.

Q9: What maintenance is required?

A9: Regular visual inspections and use of diagnostic tools to monitor module health are recommended.

Q10: Is this module compatible with other Triconex system components?

A10: Yes, it is fully compatible with the Triconex safety system architecture for seamless integration.
