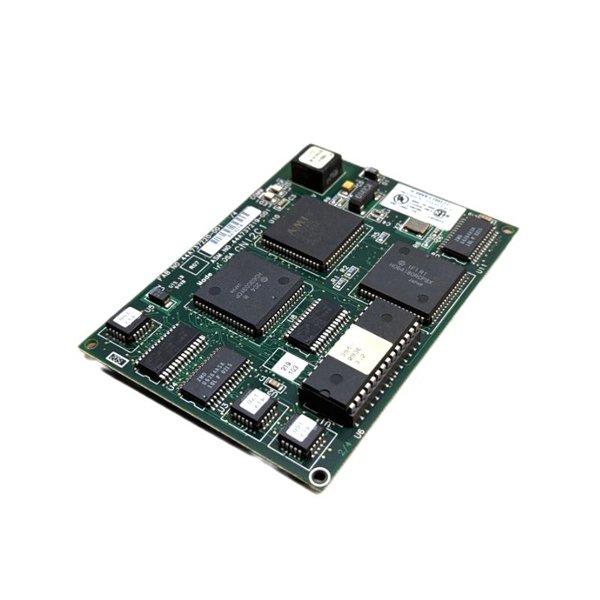

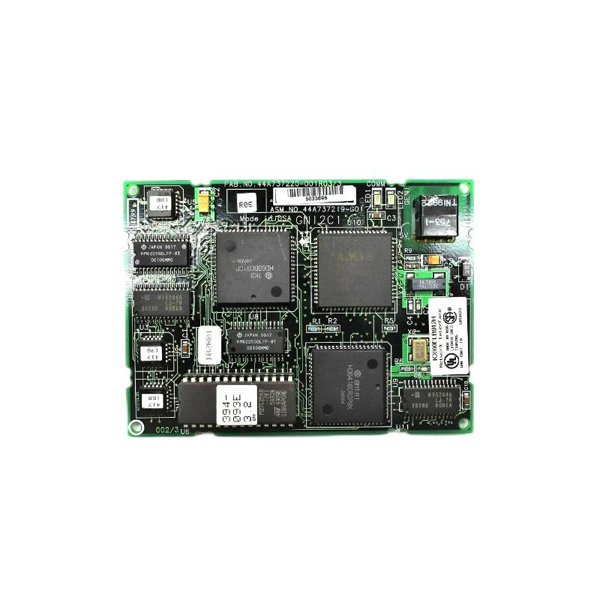

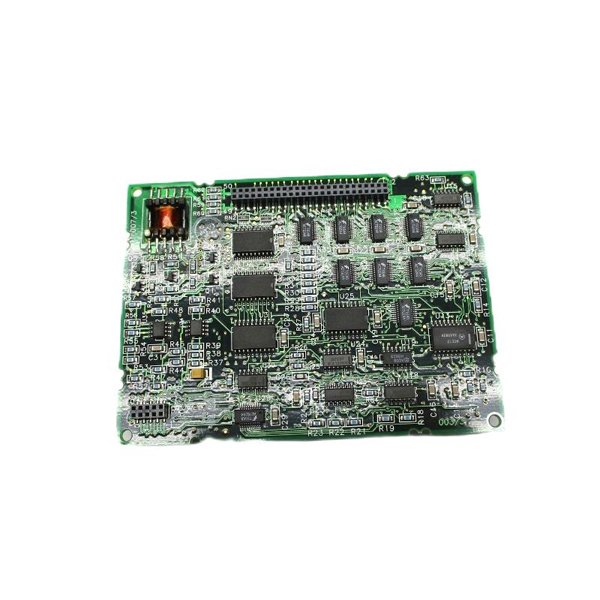

General Electric IC660ELB912 Network Interface Module

The GE IC660ELB912 is a high-performance Genius Network Interface Module (NIM) designed to facilitate seamless communication between a host system and remote I/O devices over the Genius I/O network. This module serves as a daughterboard that attaches to a PC Interface Module (PCIM), enabling the host to control and monitor distributed I/O devices efficiently. With support for various communication rates and robust diagnostic features, the IC660ELB912 is ideal for complex industrial automation systems requiring reliable and real-time data exchange.

Technical Specifications

Applications

The IC660ELB912 is utilized in various industrial applications where reliable and efficient communication between control systems and remote I/O devices is essential. Typical applications include:

• Manufacturing Automation: Centralized control of distributed sensors and actuators on production lines.

• Power Generation: Monitoring and control of remote equipment in power plants.

• Oil & Gas: Management of field devices in hazardous and remote locations.

• Water & Wastewater Treatment: Supervision of pumping stations and treatment facilities.

• Material Handling Systems: Coordination of conveyors, sorters, and automated storage systems.

• Process Industries: Integration of complex control systems in chemical and pharmaceutical plants.

Product Advantages

• High Device Support: Capable of managing up to 30 devices per channel, facilitating extensive network configurations.

• Flexible Communication Rates: Supports multiple baud rates, allowing optimization based on system requirements.

• Robust Diagnostics: Equipped with status LEDs for GENI OK and COMMS OK, enabling quick identification of network status.

• Wide Compatibility: Compatible with various PCIM cards and host systems, ensuring versatility in deployment.

• Compact Design: Small form factor allows for easy integration into existing systems without significant space requirements.

• Industrial-Grade Reliability: Designed to withstand harsh operating conditions, including wide temperature ranges and high humidity.

• Ease of Installation: Mounting options with screws, standoffs, or PCB supports simplify the installation process.

• Long-Term Availability: Supported by GE Fanuc and Emerson Automation, ensuring long-term product support and availability.

Frequently Asked Questions (FAQ)

1. What is the primary function of the IC660ELB912 module?

   The IC660ELB912 serves as a Genius Network Interface Module, enabling communication between a host system and remote I/O devices over the Genius I/O network.

2. How many devices can the IC660ELB912 support per channel?

   It can support up to 30 devices per channel, allowing for extensive network configurations.

3. Which PCIM cards are compatible with the IC660ELB912?

   It is compatible with the single-slot PCIM (IC660ELB921) and the dual-channel PCIM (IC660ELB922).

4. What communication rates are supported by the IC660ELB912?

   The module supports baud rates of 38.4K, 76.8K, 153.6K standard, and 153.6K extended.

5. What are the power requirements for the IC660ELB912?

   It requires 5 Volts DC and consumes 400 milliamps.

6. What are the operating temperature and humidity ranges for the IC660ELB912?

   The operating temperature range is 0°C to 60°C, and it can operate in humidity levels of 5% to 95%, non-condensing.

7. What diagnostic features does the IC660ELB912 offer?

   It includes status LEDs labeled GENI OK and COMMS OK to indicate the operational status of the module.

8. Is the IC660ELB912 suitable for use in high-altitude environments?

   Yes, it can operate at altitudes up to 40,000 feet.

9. What are the dimensions and weight of the IC660ELB912?

   The module measures 266 x 302 x 33 mm and weighs 0.5 kg.

10. Can the IC660ELB912 be used in systems with IBM PC/AT/XT compatibility?

    Yes, it is compatible with IBM PC/AT/XT systems.
