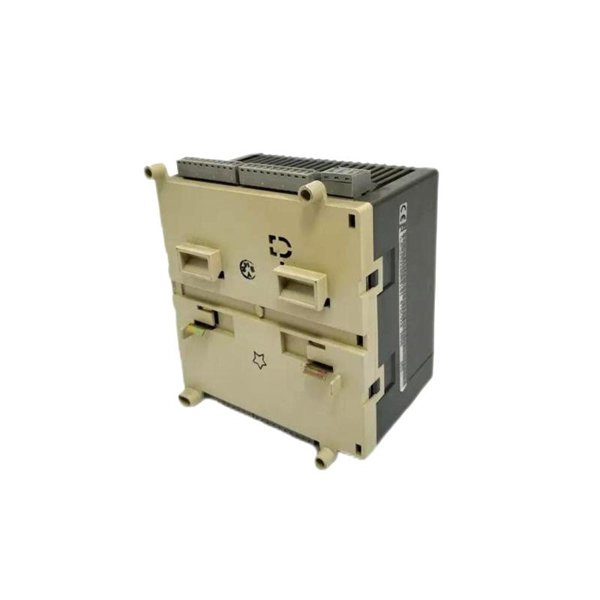

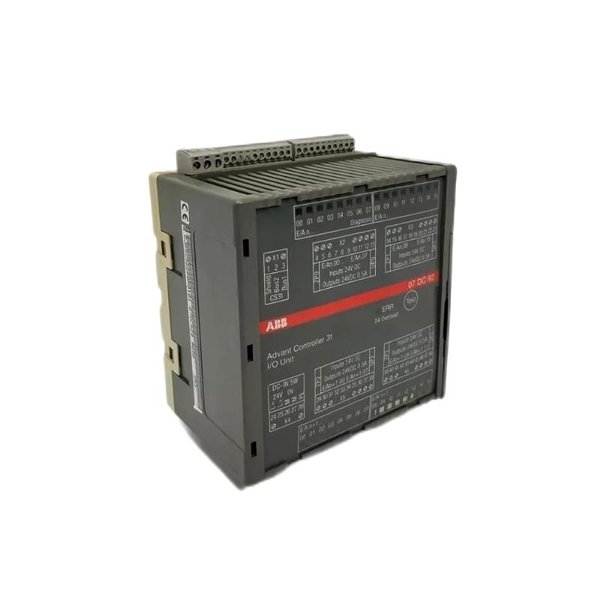

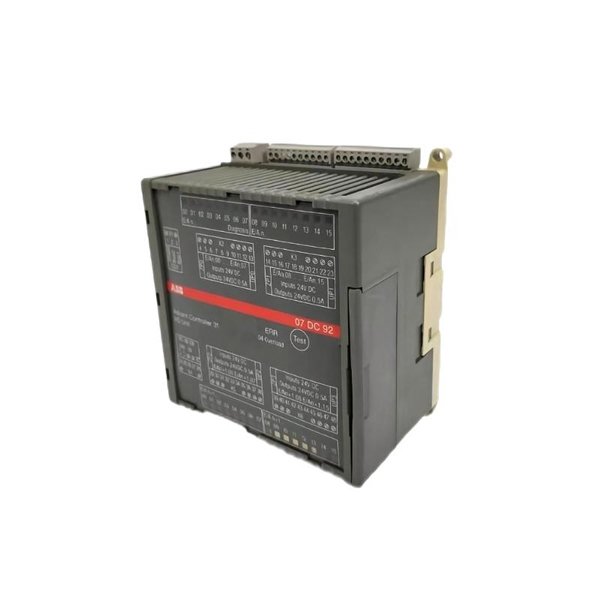

ABB 07DC92 GJR5252400R0101 Digital Input/Output Module

The ABB 07DC92 GJR5252400R0101 Digital Input/Output Module is part of ABB’s Advant Controller system, offering a versatile and high-performance solution for industrial automation and control. Designed to handle both digital input and output tasks, this module is well-suited for applications requiring quick signal acquisition and execution in environments where real-time control is critical.

This digital I/O module is optimized for interfacing with various field devices, including sensors, actuators, and switches. Its robust design ensures high reliability in demanding industrial settings such as manufacturing, energy, and chemical processes. The module’s compact form factor and ease of integration make it an ideal choice for modular automation systems, particularly in modular and distributed control architectures.

Product Specifications

Applications

The ABB 07DC92 GJR5252400R0101 Digital I/O module is highly versatile, suitable for use in a wide range of industrial applications:

• Power Plants: Utilized for monitoring and control of field devices such as status sensors and safety relays in power generation systems.

• Oil & Gas: Perfect for control systems involving pumps, valves, and emergency shutdown mechanisms in oil and gas facilities.

• Water Treatment Plants: Enables control of motors, valves, and digital sensors for water purification, distribution, and waste treatment systems.

• Manufacturing Automation: The module facilitates real-time control of sensors and actuators for industrial machines, conveyor systems, and robotic arms in assembly lines.

• Process Control in Chemical Plants: Suitable for managing switches, sensors, and actuators in chemical manufacturing processes, including temperature, pressure, and flow controls.

• Substation Automation: Used in control systems for monitoring circuit breakers, isolators, and other digital status indicators in substations.

Product Advantages

• Integrated Digital I/O Functionality

  This module combines both input and output functions in a single device, simplifying system architecture and reducing the need for multiple modules.

• Fast Response Time

  With a low input filtering time and output delay, this module ensures quick and reliable data acquisition and output execution for time-sensitive applications.

• Robust and Reliable

  Designed for industrial environments, it is built to withstand electrical noise, high vibration, and extreme temperatures, ensuring long-term performance in harsh conditions.

• Modular Design

  The module’s modular design fits seamlessly into ABB’s Advant Controller system, providing easy integration and scalability for growing automation systems.

• Diagnostics and Status Indicators

  The onboard LED indicators allow for easy diagnostics and troubleshooting, reducing downtime and maintenance costs.

• Enhanced Flexibility

  The module supports both sink and source input types, providing greater flexibility for various field devices and application requirements.

• High Power Efficiency

  With low power consumption and a robust design, the 07DC92 helps optimize energy use in automation systems, making it cost-effective and environmentally friendly.

• Wide Temperature Range

  The module operates in a wide temperature range (0°C to +60°C), allowing it to be used in a variety of industrial settings without the risk of overheating.

FAQ

1. What is the advantage of using a combined digital I/O module like the 07DC92?

   → It reduces the overall system complexity by combining both input and output functionalities, saving space and simplifying wiring.

2. What is the maximum input voltage for the 07DC92 module?

   → The input voltage is 24V DC, which is the standard for most industrial digital I/O applications.

3. How does the optical isolation work in this module?

   → The module uses optical isolation to separate the field I/O from the internal logic of the module, which helps protect the system from electrical surges and noise.

4. Can the 07DC92 handle high-frequency signals?

   → The module is designed for general-purpose digital signals. It may not be suitable for extremely high-frequency or complex analog signals without additional processing.

5. Is there a way to monitor the status of individual channels?

   → Yes, the module features individual LED indicators for each input and output channel to help with monitoring and diagnostics.

6. What happens if the output channels are overloaded?

   → The outputs are protected by short-circuit protection circuitry, which automatically shuts down the affected channel to prevent damage.

7. Can I use this module in a distributed control system?

   → Yes, the 07DC92 is designed to work within ABB’s modular Advant Controller system, and it can be part of a distributed control setup.

8. What are the benefits of using this module in a power plant?

   → It helps monitor and control critical field devices such as circuit breakers and relays, ensuring safe and efficient operation of power plant systems.

9. How easy is it to replace this module in an existing system?

   → The module can be easily replaced by following standard procedures, including powering down the system and replacing the module in its designated slot or rail.

10. Does this module support remote diagnostics?

    → Yes, when integrated with the Advant Controller system, remote diagnostics can be performed to monitor the module’s performance and health.
