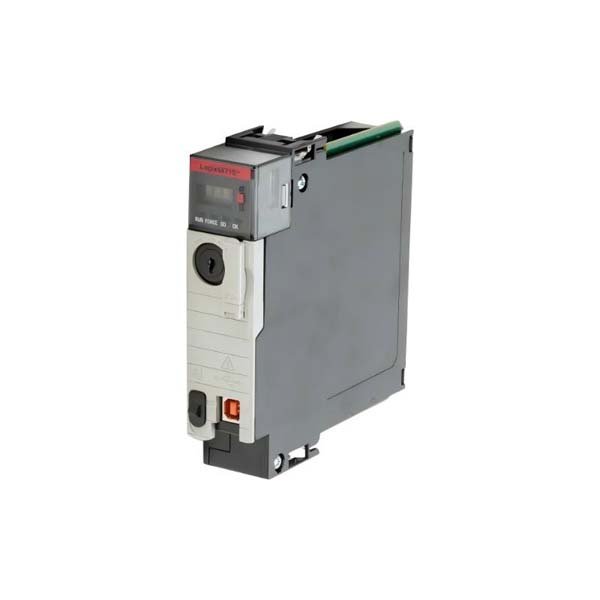

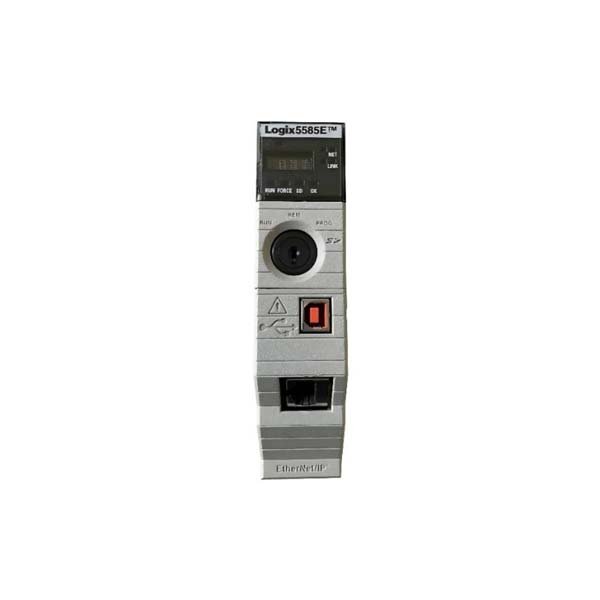

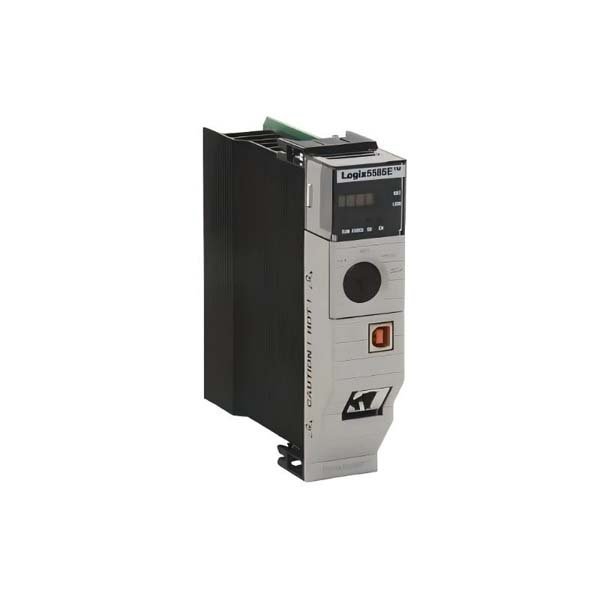

Allen-Bradley 1756-L81EP ControlLogix 5580 CPU Processor Module

The Allen-Bradley 1756-L81EP is a high-performance ControlLogix 5580 processor module designed for demanding industrial automation applications. Equipped with a 1 GHz processor, up to 40 MB of user memory, and integrated EtherNet/IP connectivity, it provides exceptional control capabilities for large-scale and data-intensive systems. The L81EP supports advanced motion, process, and safety control functions while offering enhanced cybersecurity and diagnostics. Engineered for reliability and scalability, this module is a core component of Rockwell Automation’s modern ControlLogix platform, ensuring optimized performance for smart manufacturing and Industry 4.0 environments.

Technical Specifications

Applications

The 1756-L81EP module is ideal for applications demanding high-speed, high-volume data processing and reliable control:

• Smart Manufacturing Systems – Integrates process, motion, and safety control in connected factories.

• Automotive Production Lines – Synchronizes robots, conveyors, and quality systems.

• Oil & Gas Control Systems – Manages distributed control and real-time analytics in harsh environments.

• Food and Beverage Processing – Ensures precision, quality, and traceability.

• Pharmaceutical Automation – Supports regulatory compliance and data integrity.

• Power Generation and Utilities – Enables redundancy, safety, and predictive maintenance.

Advantages

• High-Speed Processing: 1 GHz CPU ensures sub-millisecond scan times.

• Large Memory Capacity: 40 MB user memory allows for complex logic and large data structures.

• Dual EtherNet/IP Ports: Supports redundant topologies and integrated device-level networks.

• Enhanced Cybersecurity: Includes embedded security functions like signed firmware and user authentication.

• Scalable Architecture: Compatible with existing ControlLogix chassis and modules.

• Data Logging Capability: Optional SD card for historical data and configuration backup.

• Energy Efficient: Optimized design reduces power consumption and heat generation.

• Seamless Studio 5000 Integration: Simplifies programming, diagnostics, and performance monitoring.

• High Reliability: Designed for continuous 24/7 industrial operation.

• Future-Ready: Fully compatible with Industry 4.0 and digital transformation requirements.

Technical FAQs

1. Q: What is the maximum user memory of the 1756-L81EP?

   A: It supports up to 40 MB of user memory.

2. Q: Does this module support EtherNet/IP ring topology?

   A: Yes, it supports Device Level Ring (DLR) for network redundancy.

3. Q: What is the processor speed of this unit?

   A: The CPU operates at 1 GHz.

4. Q: Can the 1756-L81EP handle motion control applications?

   A: Yes, it supports integrated motion over EtherNet/IP.

5. Q: Is an SD card required for operation?

   A: It’s optional and used for data logging, backup, and nonvolatile storage.

6. Q: What programming software is used?

   A: It is programmed using Studio 5000 Logix Designer.

7. Q: Can the module be used in redundant controller systems?

   A: Yes, it supports ControlLogix redundancy configurations.

8. Q: What communication rate does the integrated Ethernet port support?

   A: Both ports support up to 1 Gbps.

9. Q: Is this module backward compatible with older 1756 chassis?

   A: Yes, it is compatible with all standard 1756 ControlLogix chassis.

10. Q: Does it support secure firmware updates?

    A: Yes, only signed firmware updates are accepted for enhanced security.
