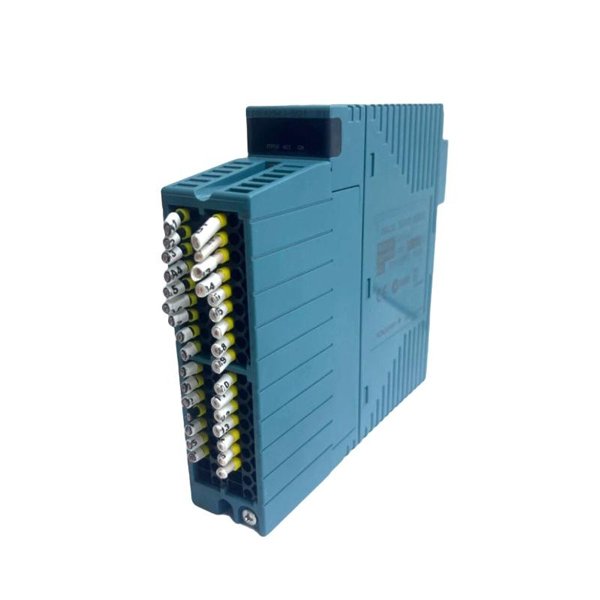

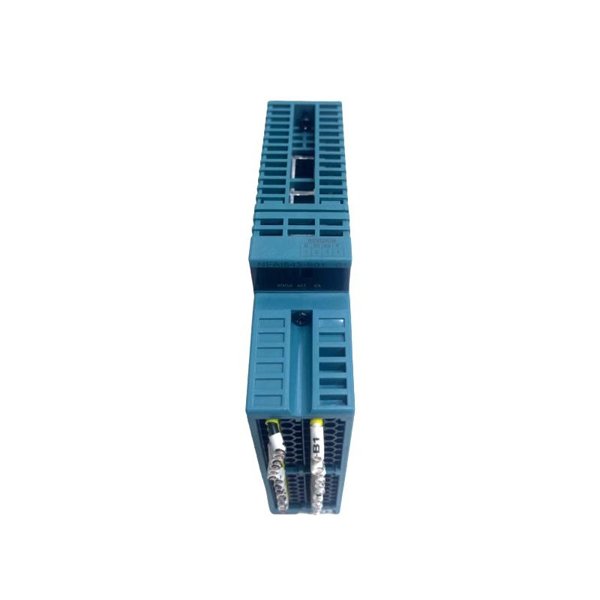

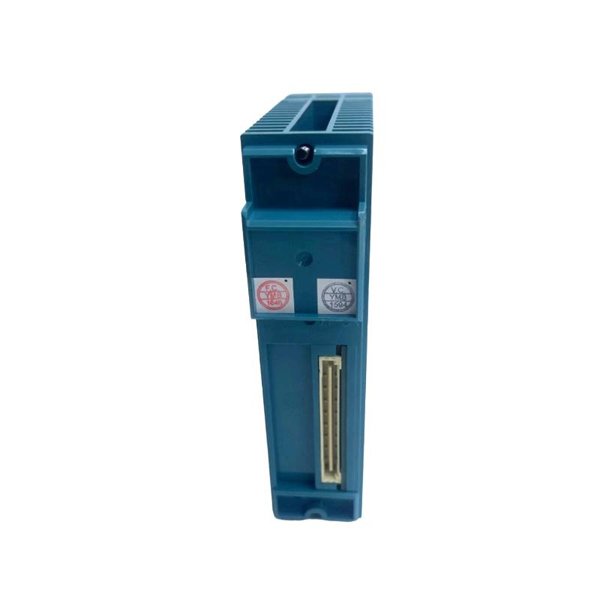

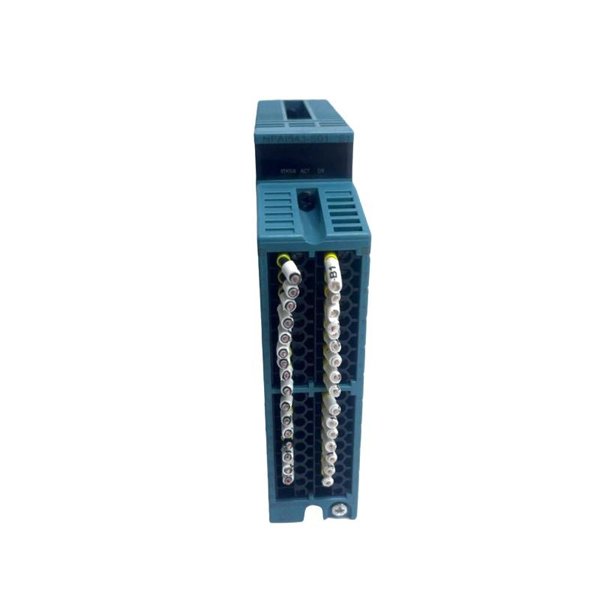

Yokogawa NFAI543-S50 S1 Analog Output Module

The Yokogawa NFAI543-S50 S1 is a high-precision analog output module designed for industrial process automation and control systems. It belongs to Yokogawa’s FA series and provides reliable analog output signals for distributed control systems (DCS) and field instrumentation.

This module converts digital signals from control systems into accurate analog outputs, enabling precise control of actuators, valves, motors, and other industrial devices. Designed for high signal stability, low noise, and high precision, the module ensures optimal performance even in demanding industrial conditions such as chemical plants, power generation facilities, oil refineries, water treatment plants, and pharmaceutical production environments.

The NFAI543-S50 S1 enables operators to maintain precise process regulation, improve operational efficiency, and reduce process variation, supporting both safety and productivity objectives.

Product Specifications

Product Applications

The NFAI543-S50 S1 module is suitable for precise analog signal control in a variety of industrial applications:

• Chemical Processing Plants: Precise control of dosing pumps, flow valves, and reactor operations.

• Power Generation: Analog control of turbine governors, boiler feedwater systems, and generator excitation.

• Oil & Gas Refineries: Stable analog outputs for distributed control of pumps, compressors, and reactors.

• Water and Wastewater Treatment: Management of aeration systems, pumps, and valves for efficient process operation.

• Food & Beverage Processing: Control of mixing, filling, and ingredient dosing systems requiring high accuracy.

• Pharmaceutical Manufacturing: Accurate control of blending, filling, and process operations to ensure compliance and quality.

Its reliable outputs allow operators to implement predictive process control, maintain operational efficiency, and integrate seamlessly with Yokogawa DCS systems.

Product Advantages

• High accuracy output with ±0.1% of span for precise process control.

• 16-bit resolution ensures smooth and stable analog signals.

• Fast response time (≤10 ms) enables real-time adjustments in process loops.

• Electrical isolation of 500 VAC prevents interference between channels and power supply.

• Configurable output ranges (4–20 mA or 0–20 mA) provide flexibility.

• Robust design ensures reliable operation in harsh industrial environments.

• Full compatibility with Yokogawa FA and DCS systems enables seamless system integration.

FAQ

1. What type of output does the NFAI543-S50 S1 module provide?

   The module provides configurable 4–20 mA or 0–20 mA analog outputs suitable for industrial actuators and control devices.

2. How many analog output channels are available?

   It offers 4 independent channels, allowing simultaneous control of multiple devices.

3. What is the maximum load resistance for each channel?

   The maximum load resistance is 550 Ω per channel, ensuring stable current output under different load conditions.

4. What is the output accuracy of this module?

   The analog output accuracy is ±0.1% of span, ensuring precise and reliable control performance.

5. What is the typical response time?

   The typical response time is ≤10 ms, enabling rapid signal updates for dynamic process adjustments.

6. Does this module provide electrical isolation?

   Yes, it provides 500 VAC isolation between channels and the power supply, preventing signal interference.

7. What is the operating temperature range?

   The module operates from 0°C to +55°C, suitable for standard industrial environments.

8. What is the resolution of the analog output?

   The analog output resolution is 16-bit, allowing precise and smooth control.

9. Which communication interface does it use?

   It uses a DCS bus interface, compatible with Yokogawa FA and distributed control systems.

10. Can this module be used for high-speed actuator control?

    Yes, its fast response time and stable output allow high-speed actuator control in industrial processes.
