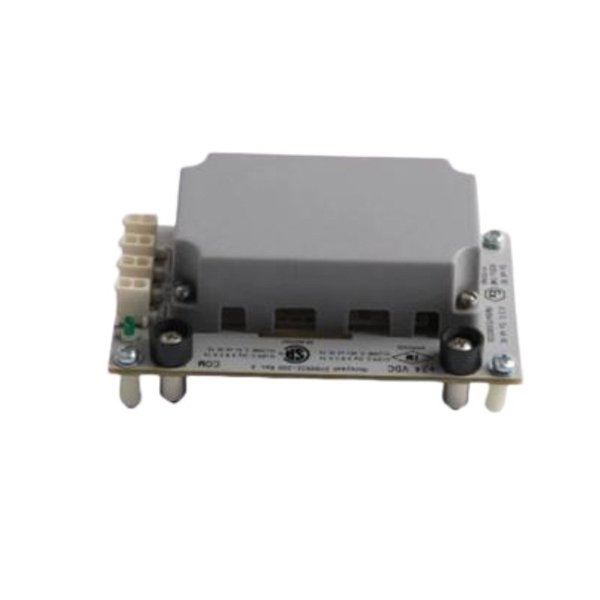

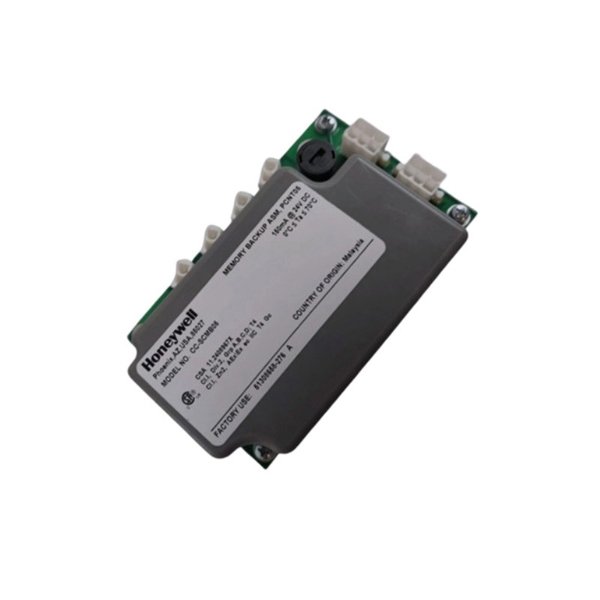

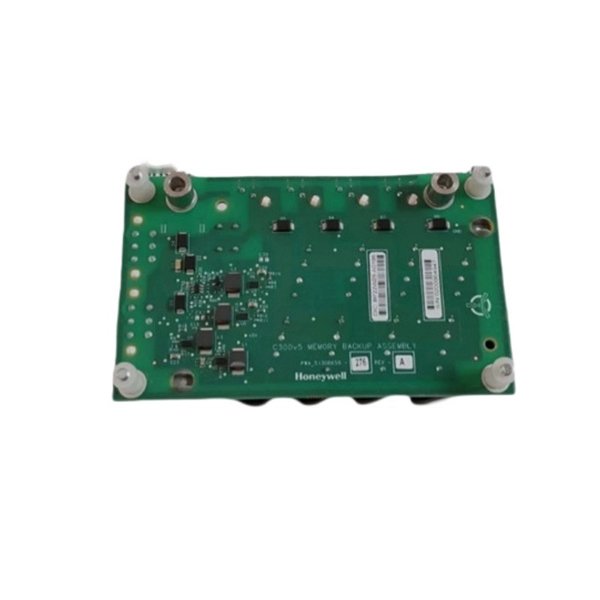

Honeywell CC-SCMB05 Memory Backup Module

The Honeywell CC-SCMB05 Memory Backup Module is a vital component of the Experion PKS (Process Knowledge System), designed to provide secure backup and retention of controller memory. It ensures the integrity and continuity of control operations by preserving critical configuration and process data during power interruptions. This module plays a key role in enhancing system reliability and minimizing downtime in industrial automation environments.

Key Features

• Provides non-volatile memory backup for C300 controllers

• Maintains critical configuration and process data during power loss

• Seamlessly integrates with Honeywell Experion PKS architecture

• Long data retention period for enhanced system reliability

• Plug-and-play installation and auto-detection

• LED indicators for module status and diagnostics

• Designed for mission-critical process control applications

Technical Specifications

Industry Applications

• Oil & Gas Process Automation

• Power Generation and Utilities

• Chemical and Petrochemical Facilities

• Water Treatment Plants

• Pulp and Paper Mills

• Pharmaceutical Manufacturing

• Food and Beverage Processing

• Metal and Mining Automation Systems

Product Advantages

• Data Integrity Protection: Retains control logic and data in the event of power loss

• System Compatibility: Works seamlessly with Honeywell’s Experion PKS and C300

• Maintenance-Free Operation: Long-lasting non-volatile memory with minimal upkeep

• Compact Design: Space-saving module for DIN rail installation

• Improved Uptime: Prevents data loss and reduces restart time

• Visual Feedback: LED indicators simplify diagnostics and monitoring

• Reliable Backup: Engineered for high-availability applications

• Simple Integration: Plug-and-play with automatic system detection

Frequently Asked Questions (FAQ)

1. What is the main function of the CC-SCMB05 module?

It provides memory backup for Honeywell C300 controllers during power failures.

2. What type of memory does it use?

The module uses non-volatile memory, such as battery-backed SRAM or Flash.

3. How long can it retain data without power?

Typically over 5 years, depending on usage and environment.

4. Is the module hot-swappable?

Yes, it supports hot-swapping for minimal system disruption.

5. What systems is it compatible with?

It is designed for Honeywell Experion PKS and C300 controllers.

6. Does it have any status indicators?

Yes, LED indicators provide visual status and diagnostic feedback.

7. Can it be installed on a DIN rail?

Yes, it is DIN rail mountable.

8. What are the dimensions of the module?

Dimensions are 100mm × 70mm × 30 mm.

9. What is the module’s operating temperature range?

From 0°C to +60°C.

10. Is it certified for industrial use?

Yes, it carries CE, UL, CSA, and RoHS certifications.
