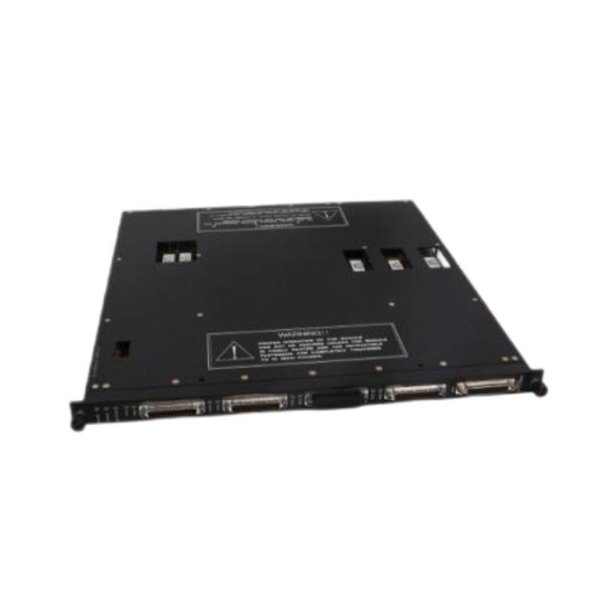

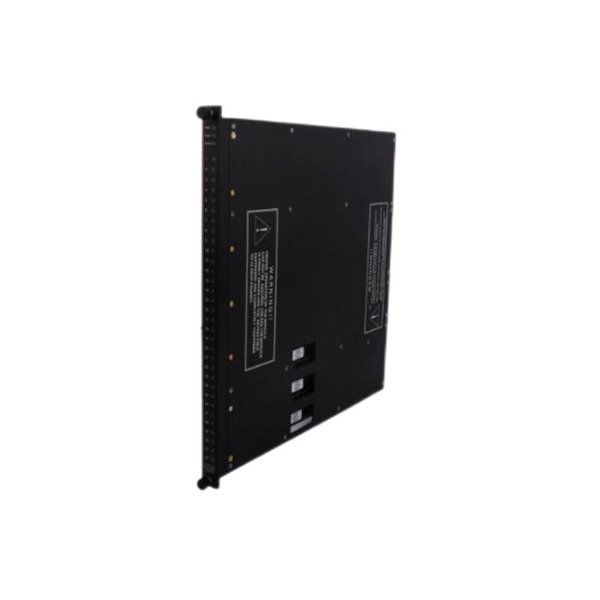

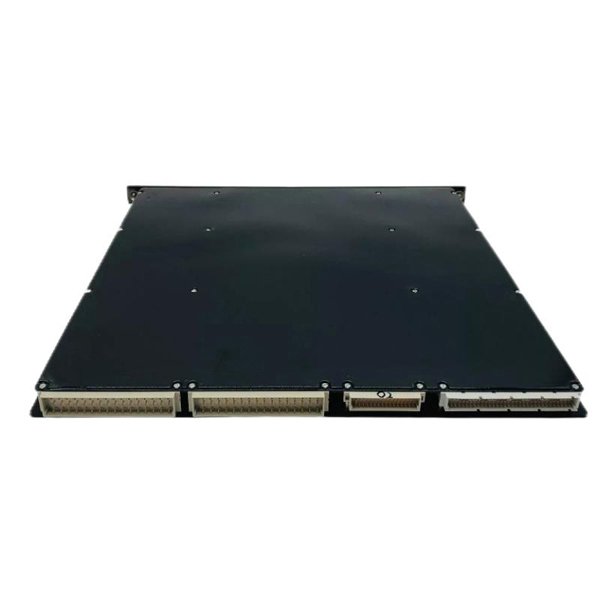

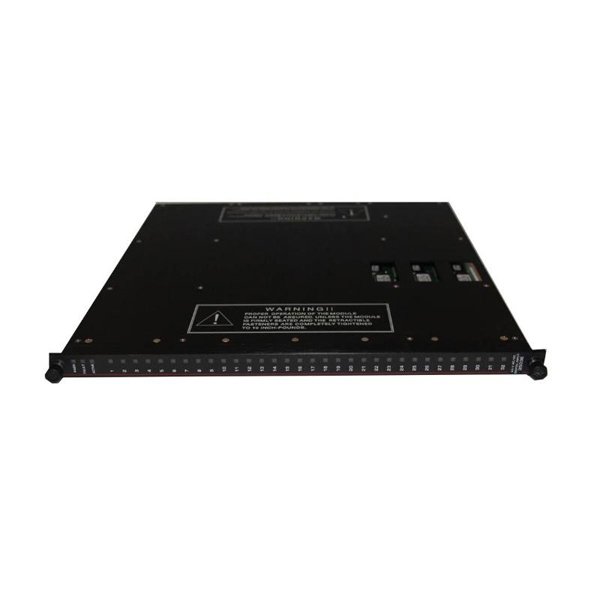

Triconex 3503EN2 Digital Input Module

The Triconex 3503EN2 is a Digital Input Module built for use in Triconex safety and control systems, delivering critical performance in demanding industrial environments. As an enhanced version of the proven 3503E module, the 3503EN2 incorporates advanced diagnostics, enhanced filtering, and expanded configuration flexibility, making it suitable for highly sensitive and safety-critical installations.

This module is a core component of the Tricon™ fault-tolerant controller system, which leverages Triple Modular Redundancy (TMR) for unmatched reliability and safety integrity. With its 32-channel input configuration and compatibility with dry contact signals, it provides real-time status monitoring of field devices such as emergency shutdown (ESD) buttons, limit switches, and relay contacts.

The 3503EN2 is particularly suited for Safety Instrumented Systems (SIS), where system uptime, real-time diagnostics, and functional safety certification (SIL 3) are non-negotiable requirements.

Product Specifications

Application

The Triconex 3503EN2 is designed to support critical control and protection processes in high-risk industrial environments. Its robustness and safety compliance make it ideal for:

• Emergency Shutdown (ESD) Systems

• Fire and Gas (F&G) Detection Systems

• High Integrity Pressure Protection Systems (HIPPS)

• Burner Management Systems (BMS)

• Wellhead Control Systems

• Offshore and Onshore Oil & Gas Platforms

• Petrochemical and Refinery Safety Controls

• Power Generation Units (Thermal, Nuclear, Renewable)

• Chemical Reactor Monitoring

• Pipeline Integrity Monitoring Systems

Advantages

• Triple Modular Redundancy (TMR): Ensures system continues functioning even if a fault occurs in one channel.

• Advanced Channel Diagnostics: Integrated per-channel diagnostics offer proactive fault detection and faster maintenance.

• High-Speed Input Processing: Sub-millisecond input scan times for high-accuracy data acquisition.

• Enhanced Signal Filtering: Reduces false triggering and improves system integrity in electrically noisy environments.

• Hot-Swappable Design: Enables live module replacement without affecting system operation.

• Scalability and Flexibility: Easily integrates into both new and legacy Triconex installations.

• Industrial-Grade Durability: Designed to perform in extreme environments with high vibration, shock, and humidity.

• Certifications for Safety: Complies with international safety standards including SIL 3, ATEX, and GOST.

Frequently Asked Questions (FAQ)

1. What type of inputs does the 3503EN2 accept?

   It supports dry contact or discrete digital input signals.

2. How many inputs are available on this module?

   The 3503EN2 provides 32 individually isolated input channels.

3. Is this module suitable for safety applications?

   Yes, it is certified for use in SIL 3-rated safety instrumented systems.

4. Can the module be replaced without shutting down the system?

   Absolutely, it supports hot-swapping without interrupting operation.

5. What distinguishes the 3503EN2 from the 3503E?

   The EN2 version includes enhanced diagnostics, improved filtering, and greater configurability.

6. What environments is this module rated for?

   It can operate in temperatures from -20°C to +60°C and withstands up to 95% humidity.

7. Does it provide per-channel fault monitoring?

   Yes, each channel has built-in diagnostics and individual fault indication.

8. Is configuration handled manually or via software?

   It is configured via TriStation 1131, Triconex’s proprietary programming environment.

9. Can this module be used in a redundant safety architecture?

   Yes, it is designed for TMR systems that require high-availability.

10. What certifications does the 3503EN2 have?

    It is compliant with CE, SIL 3 (IEC 61508), ATEX, UL, and TÜV certifications.
