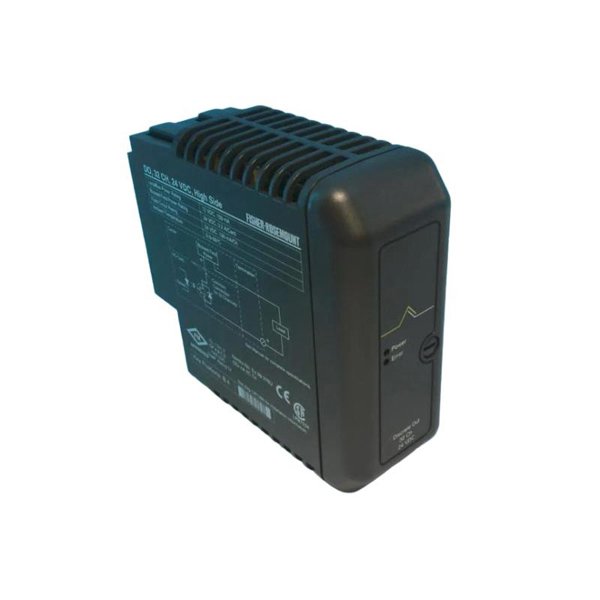

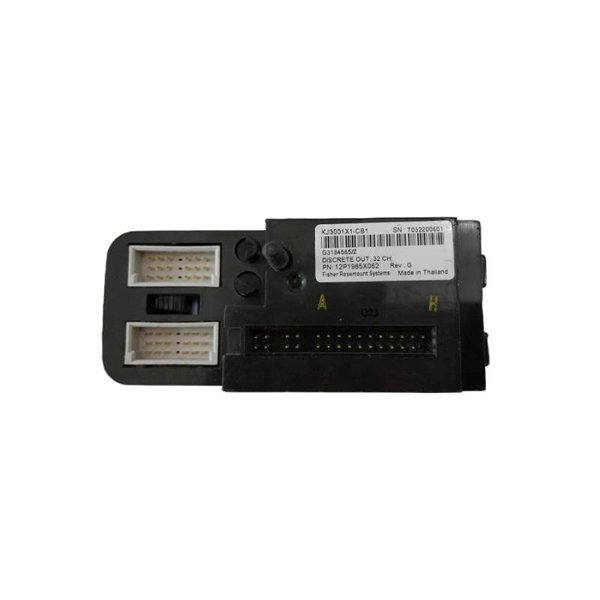

Emerson KJ3001X1-CB1 Discrete Output Module

The Emerson KJ3001X1-CB1 is a high-performance Discrete Output Module designed for use in industrial control systems. This module is engineered to convert digital signals from a control system into corresponding discrete output signals, such as on/off control for actuators, valves, relays, and other field devices. The module ensures that control systems maintain accuracy, reliability, and precision in environments where discrete signals are essential for safe and efficient operations.

With its compact size of 107 x 41 x 105 mm and a weight of only 0.14 kg, the KJ3001X1-CB1 is well-suited for tight spaces and high-density control panels, enabling users to optimize their system layouts without sacrificing performance. This module is compatible with Emerson’s DeltaV system and other industrial control systems, offering seamless integration and enhanced functionality.

The KJ3001X1-CB1 is designed for industrial automation, process control, and manufacturing applications, ensuring robust signal transmission in high-demand environments. Its ability to manage multiple output points makes it a versatile choice for users requiring precise control in industries such as chemical, power, oil & gas, and pharmaceutical manufacturing.

Product Specifications

Product Applications

The Emerson KJ3001X1-CB1 Discrete Output Module is widely used in industrial applications where digital control is required. Below are key applications for this module:

• Process Control Systems

  The KJ3001X1-CB1 is commonly used in process control systems to control field devices such as valves, actuators, and relays. By providing precise on/off control signals, the module helps ensure smooth and efficient operation of industrial processes.

• Oil & Gas Industry

  In the oil and gas industry, the discrete output module is used for monitoring and controlling equipment in remote and hazardous environments. The KJ3001X1-CB1 ensures the reliable operation of safety valves and other critical field devices.

• Power Generation

  The KJ3001X1-CB1 is used in power generation facilities to manage outputs for devices such as turbines, generators, and transformers. Its ability to provide high-reliability control ensures optimized plant performance and reduced downtime.

• Manufacturing Automation

  The KJ3001X1-CB1 is an integral part of automated manufacturing systems. It provides precise digital signals to various equipment on the factory floor, including robotic arms, conveyors, and material handling systems, improving efficiency and productivity.

Product Advantages

The Emerson KJ3001X1-CB1 offers several advantages that make it a reliable choice for industrial control systems:

• Compact and Lightweight Design

  The KJ3001X1-CB1 has a compact form factor (107 x 41 x 105 mm) and weighs only 0.14 kg, making it easy to integrate into high-density control panels and small enclosures.

• Reliable Digital Control

  The module provides reliable and precise digital output signals for controlling various actuators, valves, and other field devices. It enhances system performance by ensuring that control commands are executed with high accuracy.

• Wide Temperature Range

  With an operating temperature range from -40°C to +70°C, the KJ3001X1-CB1 is designed for use in harsh industrial environments, ensuring reliable performance in extreme conditions.

• Seamless Integration

  The module integrates seamlessly with Emerson’s DeltaV system and other compatible control systems, making installation and configuration straightforward. Its DIN rail mountable design simplifies installation in control cabinets and other system enclosures.

Frequently Asked Questions (FAQ)

1. What is the main function of the Emerson KJ3001X1-CB1 Discrete Output Module?

The KJ3001X1-CB1 is designed to convert digital signals from a control system into corresponding discrete output signals for actuators, valves, and other field devices.

2. What is the input signal type for this module?

The KJ3001X1-CB1 operates with digital/discrete input signals to control various output devices in industrial automation systems.

3. What is the output signal range for this module?

The module provides 24V DC discrete output signals to control field devices such as relays and valves.

4. How many discrete outputs are available with the KJ3001X1-CB1?

The module provides 8 discrete outputs, allowing users to control multiple devices simultaneously.

5. What is the mounting method for the KJ3001X1-CB1?

The KJ3001X1-CB1 is designed to be DIN rail mountable, which allows for easy integration into existing control panels and systems.

6. Can the KJ3001X1-CB1 be used in hazardous environments?

Yes, the module is rated IP20, making it suitable for use in environments where the risk of exposure to dust or water is minimal.

7. What is the operating temperature range for the KJ3001X1-CB1?

The operating temperature range for the module is -40°C to +70°C, making it suitable for use in harsh industrial conditions.

8. How does the KJ3001X1-CB1 enhance system performance?

The module ensures reliable digital control of field devices, improving the efficiency and precision of industrial processes by providing accurate on/off control.

9. Is the KJ3001X1-CB1 compatible with other control systems besides DeltaV?

Yes, the module can be used with other compatible control systems that support digital/discrete signal outputs.

10. What industries benefit from using the KJ3001X1-CB1?

The KJ3001X1-CB1 is ideal for use in process control, oil & gas, power generation, and automated manufacturing industries, where precise control of field devices is critical.
