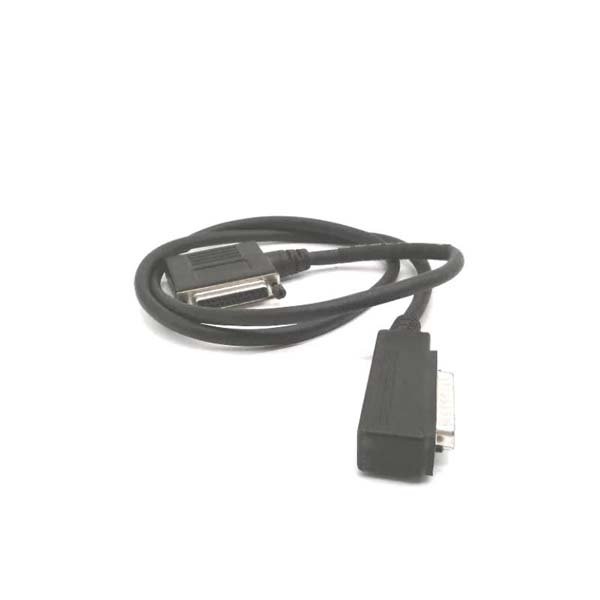

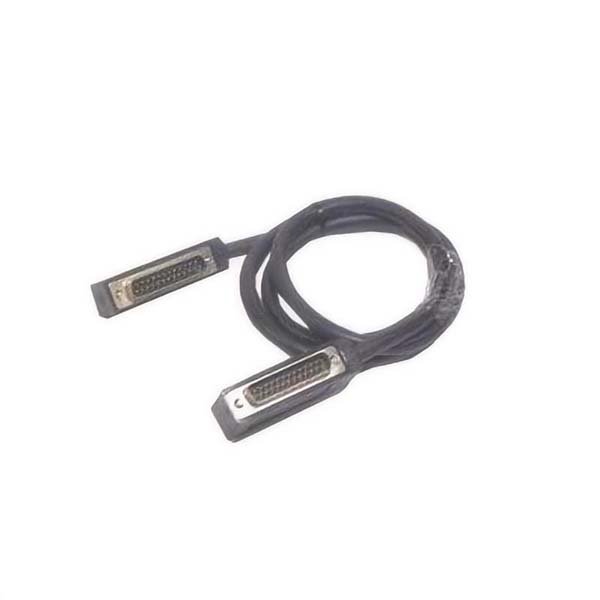

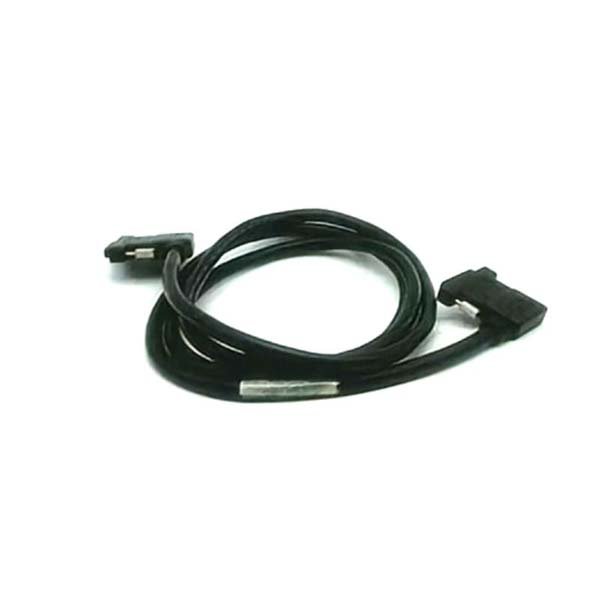

GE Fanuc IC693CBK003 Backplane Cable Kit
Manufacturer:GE Fanuc
Product Number:IC693CBK003
Product Type:Backplane / High-Density Cable Kit
Origin:USA
Dimensions:2000 mm (L) × 25 mm (W) × 15 mm (H)
Weight:0.45 kg
Views:118
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The IC693CBK003 Backplane Cable Kit is designed for GE Fanuc Series 90-30 PLC systems and provides the wiring interface required for high-density I/O modules. In typical automation projects, this kit is used to extend or reorganize dense signal interfaces while maintaining electrical integrity and stable backplane communication. Its construction supports industrial-grade vibration resistance and consistent signal transmission in long-term operation.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IC693CBK003 |
| Module Type | Backplane / High-Density Cable Kit |
| Platform | GE Fanuc Series 90-30 |
| Included Components | Two high-density connector cables |
| Cable Length | Approx. 2 m per cable |
| Conductor Rating | 1.2 A per conductor |
| Connector Type | 24-pin high-density interface |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Dimensions (Cable + Connector) | Approx. 2000 mm (L) × 25 mm (W) × 15 mm (H) |
| Weight | Approx. 0.45 kg |
Applications
-
High-density 32-point I/O module wiring
-
Expansion or rearrangement of Series 90-30 rack wiring
-
Compact control cabinets requiring organized signal interfaces
-
Retrofitting older PLC systems with restructured I/O groups
-
Machine-level control systems where wiring clarity is critical
Advantages
-
Optimized for high-density modules with stable conductor capacity
-
Pre-assembled connectors reduce installation time and wiring errors
-
Industrial-grade insulation ensures long-term reliability
-
Ideal for cabinet revamps, improving wiring management
-
Compatible across all 90-30 high-density I/O configurations
FAQs
-
What is included in the IC693CBK003 kit?
Two matched high-density connector cables.
-
Is the cable suited for high-density I/O?
Yes, it is specifically designed for 32-point modules.
-
What is the conductor current rating?
1.2 A per conductor.
-
Does the kit require configuration?
No, it is strictly a wiring interface.
-
Can the cables be used in retrofit projects?
Yes, very common in cabinet upgrades.
-
Is the cable shielded?
Yes, internal shielding supports stable backplane signals.
-
Can it be used with all 90-30 baseplates?
It supports high-density I/O interfaces across the platform.
-
Can the cable be extended?
Extension is not recommended due to potential signal degradation.
-
Is the installation hot-swappable?
No, power must be removed.
-
Is it suitable for harsh environments?
Within standard PLC cabinet conditions, it performs reliably.
