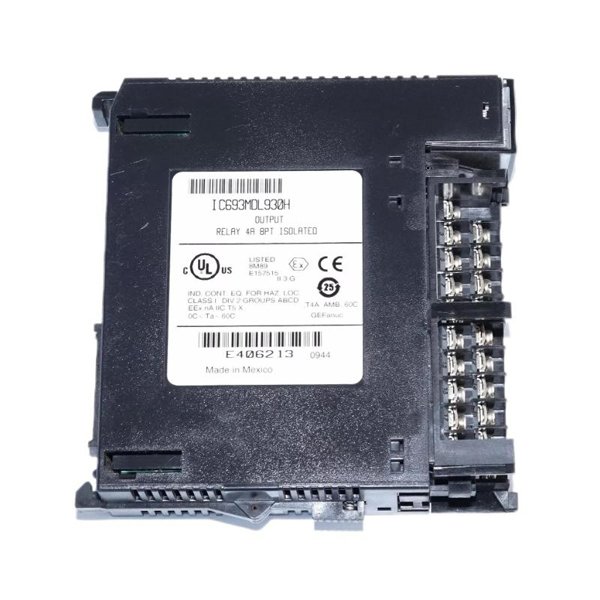

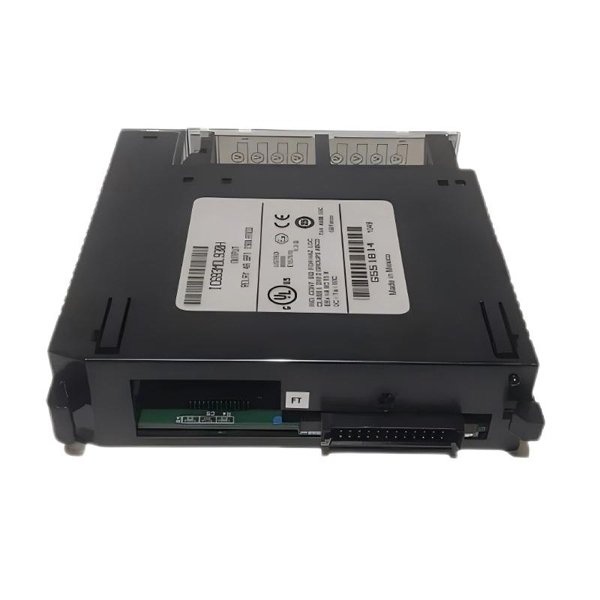

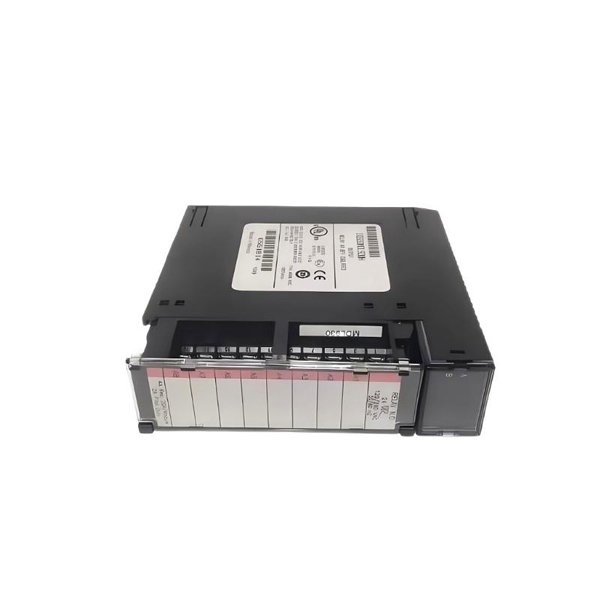

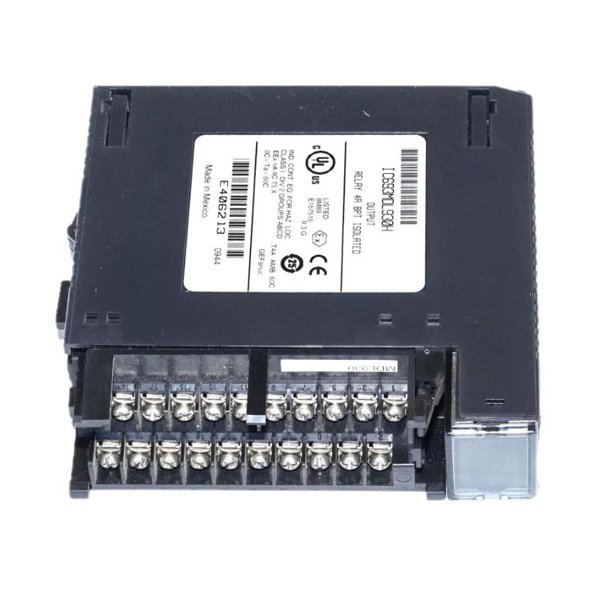

General Electric IC693MDL930H 4 Amp Isolated Relay Output Module

The GE IC693MDL930H is an essential component in GE’s series of programmable logic controllers (PLC). It is a digital output module used in industrial automation systems for controlling various devices such as relays, actuators, and other types of industrial equipment. This module plays a crucial role in industrial settings, ensuring reliable and accurate control over automation processes.

Product Parameters

Below is the technical specification table for the GE IC693MDL930H:

Product Applications

The GE IC693MDL930H module is designed for use in industrial automation and control systems. Its primary applications include:

• Manufacturing Automation: Used to control machines, conveyors, and robotic arms.

• Process Control Systems: Ideal for controlling various sensors, valves, and actuators.

• Building Automation: Often used in HVAC and lighting control systems.

• Energy Management: Effective in managing energy consumption and electrical distribution systems.

Product Advantages

1. High Reliability: The IC693MDL930H is built to operate in demanding industrial environments, with rugged construction to withstand dust, vibration, and temperature fluctuations.

2. Compact Size: Despite its powerful functionality, it features a compact design that makes it easy to integrate into various control panels.

3. Low Power Consumption: The module offers energy-efficient operation, helping to reduce the overall system power draw.

4. Ease of Installation: The module is simple to install and configure, minimizing downtime and setup costs.

5. Flexible I/O Options: It provides a versatile range of output points for managing complex control processes, offering flexibility to handle multiple devices simultaneously.

6. Long Lifespan: Designed for durability, it promises a long service life, even under heavy operational loads.

7. High Current Capacity: With up to 2 A per point, the module can control power-hungry devices without requiring additional components.

FAQs

1. What is the primary function of the GE IC693MDL930H module?

   • The primary function of the IC693MDL930H is to provide digital output for controlling relays and other electrical devices in industrial control systems.

2. How many output points does the IC693MDL930H have?

   • The IC693MDL930H module has 16 digital output points.

3. What is the voltage requirement for the IC693MDL930H?

   • The module operates at a 24 VDC input voltage.

4. What is the maximum current that can be handled per output point?

   • Each output point can handle a maximum of 2 A.

5. What are the environmental conditions in which the IC693MDL930H can operate?

   • It operates in temperatures ranging from 0°C to 60°C and can be stored in environments between -20°C to 70°C.

6. What is the weight of the IC693MDL930H?

   • The module weighs 0.45 kg.

7. Can this module be used in harsh industrial environments?

   • Yes, the IC693MDL930H is designed to withstand dust, vibration, and temperature fluctuations, making it suitable for demanding industrial environments.

8. Is the IC693MDL930H easy to install?

   • Yes, it features a user-friendly design and can be easily integrated into control panels with minimal setup required.

9. What type of output does the IC693MDL930H provide?

   • The module provides relay outputs that can control various industrial devices.

10. What are the dimensions of the IC693MDL930H module?

    • The module measures 89 x 107 x 188 mm.
