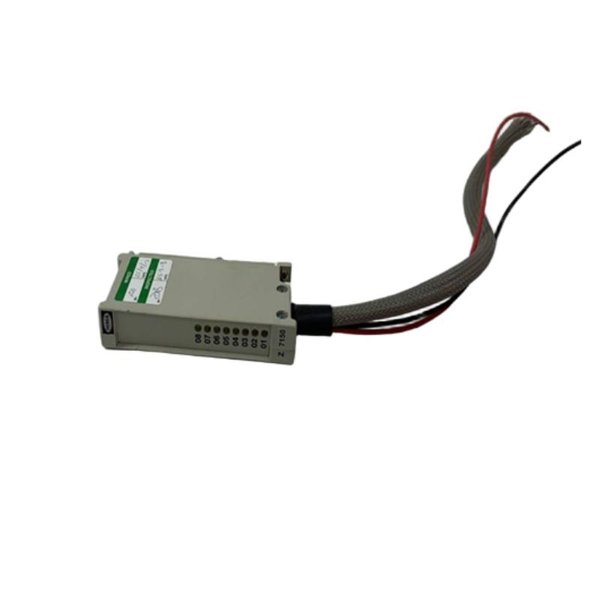

Hima Z7150/3349/W5/24P2 Wired, 2-pole connection plug

This product plays a key role in programmable electronic safety systems (PES), ensuring seamless operation of safety instrumented functions (SIF) across sectors like oil & gas, chemical processing, power generation, and more. Its architecture supports secure signal acquisition, processing, and relay, making it essential for systems requiring highest safety integrity levels (SIL).

Product Parameters

Product Applications

The HIMA Z7150/3349/W5/24P2 is built for diverse industrial scenarios where fail-safe operation is mandatory. Typical applications include:

• Emergency shutdown systems (ESD)

• Fire & gas detection and response systems

• Burner management systems (BMS)

• Compressor and turbine control systems

• Tank overfill protection

• Distributed control systems (DCS) requiring integrated safety functions

Due to its robust design and certified compliance, it is especially suited to industries demanding continuous uptime and process safety, including petrochemicals, refineries, nuclear power, and large-scale manufacturing.

Product Advantages

• High Safety Integrity: Certified up to SIL 3, delivering proven safety performance.

• Compact Design: Space-saving DIN rail mounting, enabling dense installation within control cabinets.

• Flexible Integration: Seamlessly works alongside HIMA’s HIMax, HIQuad, and Planar4 systems.

• Extended Temperature Range: Suitable for harsh environments and extreme conditions.

• Long Service Life: Built with durable components for sustained, maintenance-friendly operation.

• Robust Isolation: Ensures electrical noise immunity and secure signal handling.

• Low Power Consumption: Optimized to reduce system power load without compromising functionality.

These strengths together make the module a dependable choice for complex safety architectures.

FAQ

Q1: What is the primary role of the HIMA Z7150/3349/W5/24P2?

A1: Its role is to safely interface input and output signals, ensuring reliable operation of safety-critical control and monitoring functions.

Q2: Which power supply voltage does this module require?

A2: It typically operates with a 24 V DC power supply.

Q3: Is the module suitable for use in outdoor installations?

A3: No, it is designed for installation in protective control cabinets, with IP20 enclosure protection.

Q4: Can the module be combined with systems outside of HIMA’s ecosystem?

A4: It can, but best results and certified safety levels are achieved when used within HIMA systems.

Q5: What is the maximum switching current supported by its relay outputs?

A5: Up to 2 A for resistive loads.

Q6: What is the approximate weight of this module?

A6: 0.45 kg.

Q7: What kind of mounting does the module support?

A7: It is designed for DIN rail mounting.

Q8: Which safety standard does it comply with?

A8: Certified according to IEC 61508, meeting SIL 3 requirements.

Q9: What environments is it suitable for?

A9: Industrial control rooms or cabinets within temperature ranges from -20 °C to +60 °C.

Q10: Does the module have built-in surge protection?

A10: Yes, the design includes robust isolation and protection for transient voltage surges.
