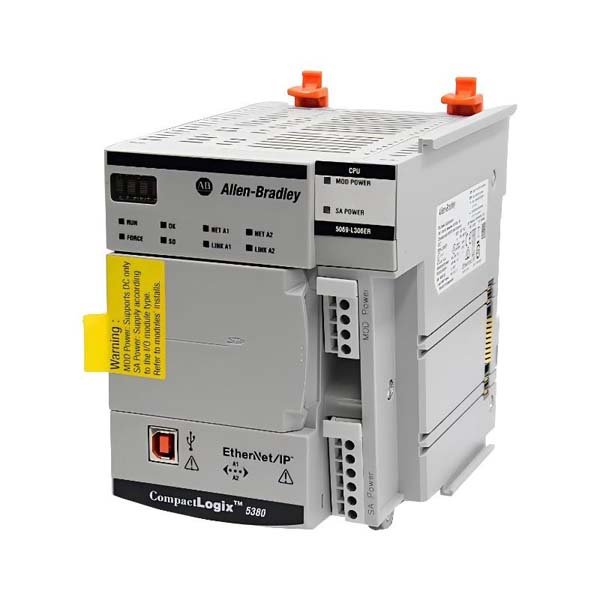

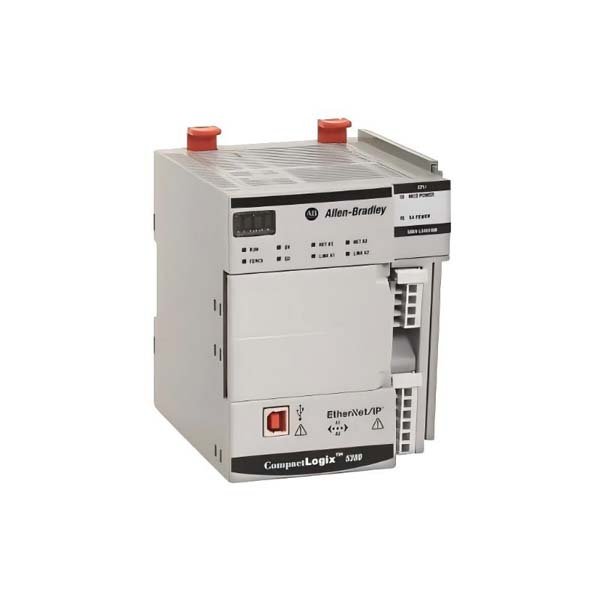

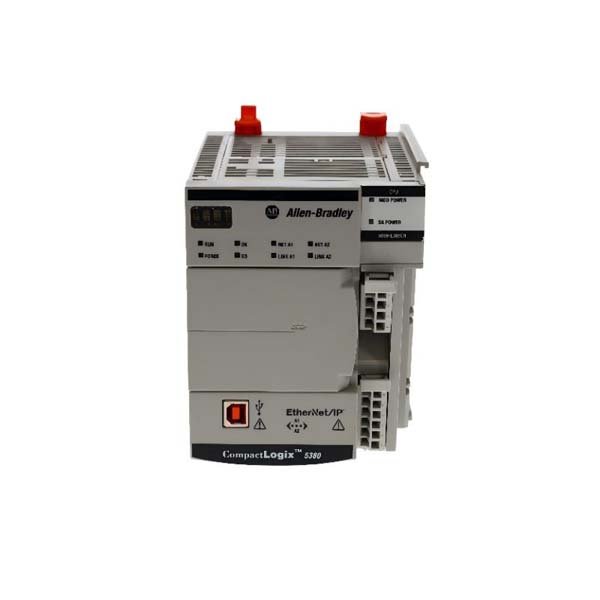

Allen-Bradley 5069-L306ER CompactLogix 5380 CPU Module

The Allen-Bradley 5069-L306ER is a next-generation CompactLogix 5380 CPU module built for performance-driven automation systems. Combining high-speed processing with precise motion control and extensive connectivity, it enables synchronized machine operations across demanding industrial applications. This controller is widely adopted in discrete manufacturing, packaging, and motion-intensive processes where fast scan times and integrated safety are crucial.

Incorporating advanced EtherNet/IP communication, the 5069-L306ER provides a unified platform that bridges machine-level and enterprise-level systems. Designed under Rockwell Automation’s Logix architecture, it delivers improved data integrity, controller redundancy, and scalability across distributed networks.

Technical Profile

Field Applications

The 5069-L306ER CPU module is suitable for a range of automation solutions where high speed and reliability are key:

• Packaging machinery requiring synchronized motion control.

• Material handling systems integrating multiple robot axes.

• Food and beverage plants demanding high uptime and data logging.

• Pharmaceutical production requiring precise batch control.

• Automotive assembly lines needing fast, deterministic EtherNet/IP communication.

• OEM equipment where modularity and compact design are essential.

Performance Advantages

• High-Speed Logic Execution — Delivers near-instantaneous program scan rates for advanced motion coordination.

• Dual-Port EtherNet/IP — Enables device-level ring topology, redundancy, and real-time diagnostics.

• Enhanced Security Features — Includes controller-level user authentication and digital signature verification.

• Precision Motion Integration — Natively supports CIP Motion for multi-axis synchronization.

• Scalable Architecture — Seamless integration with Compact I/O, ControlLogix, and FactoryTalk systems.

• Time Synchronization — IEEE 1588 compliance ensures deterministic control timing.

• Simplified Maintenance — USB programming and removable SD card streamline data management.

• Compact and Rugged — Optimized thermal design suitable for tight control enclosures.

• Reduced Engineering Effort — Compatible with Studio 5000 Logix Designer environment.

• Future-Proof Investment — Aligned with Rockwell’s modern Logix platform roadmap.

FAQs

1. Q: How much user memory does the 5069-L306ER have?

   A: It provides 3 MB of program memory and 1.5 MB of data memory.

2. Q: Does it support motion control?

   A: Yes, it supports CIP Motion for up to 16 axes.

3. Q: What network topologies are available?

   A: Supports linear, star, and Device-Level Ring (DLR) topologies.

4. Q: Is redundancy supported?

   A: Not native redundancy, but network-level redundancy is achievable through DLR.

5. Q: What software is required for programming?

   A: Studio 5000 Logix Designer version 31 or later.

6. Q: Can SD cards be used for data logging?

   A: Yes, SD card storage is supported for application backup and logs.

7. Q: What is the power input range?

   A: Operates at 24 VDC nominal.

8. Q: What is the typical scan time?

   A: Approximately 0.98 µs per instruction.

9. Q: How many local I/O modules can be attached?

   A: Up to 31 local Compact I/O modules.

10. Q: What is the physical weight of the module?

    A: Approximately 0.45 kg (1.0 lb).
