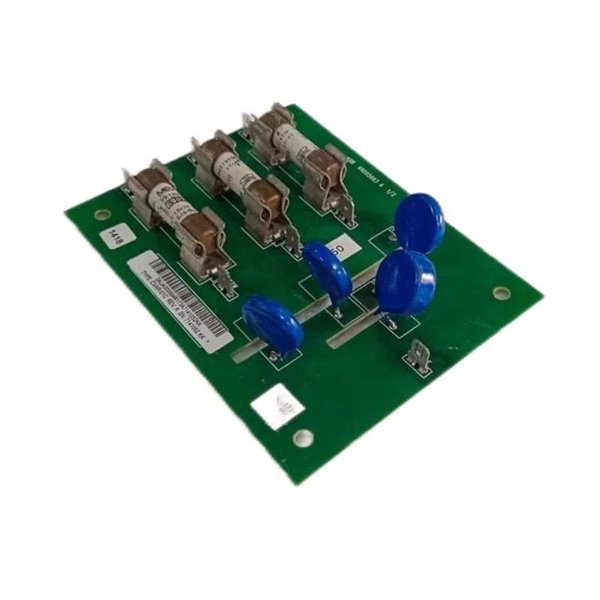

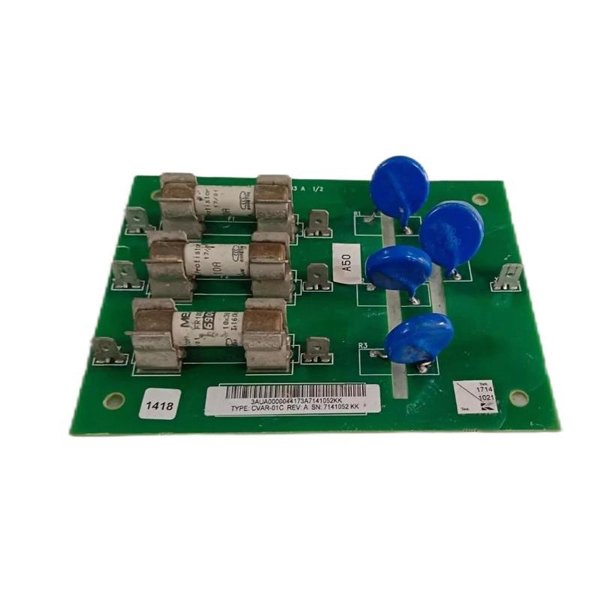

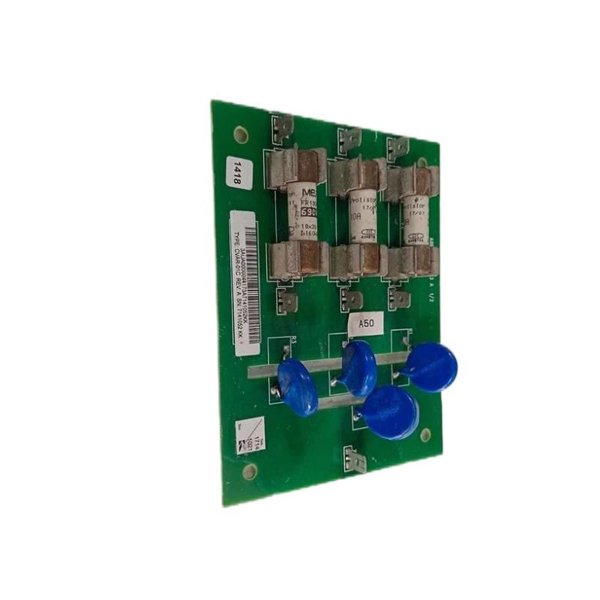

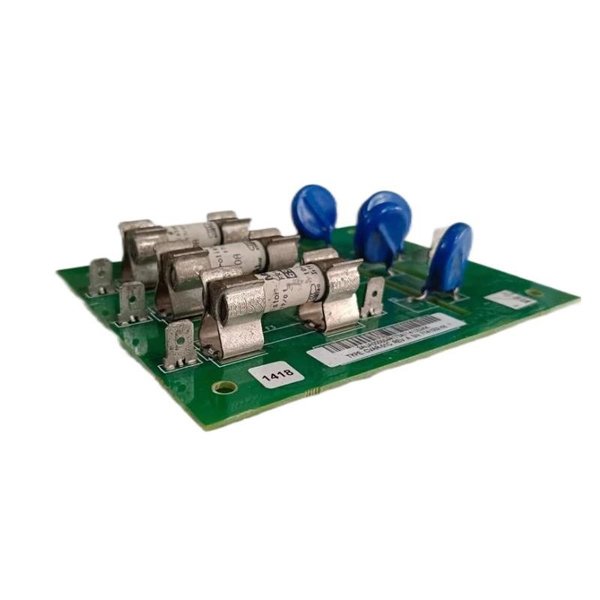

ABB CVAR-01C 3AUA0000065951 Specific Varistor Board Kit

The ABB CVAR-01C 3AUA0000065951 Specific Varistor Board Kit is a precision-engineered accessory component designed to provide enhanced surge protection for ABB low voltage drive systems. It belongs to ABB’s family of protective modules and serves as an essential kit for ensuring the long-term reliability of variable frequency drives (VFDs) operating in environments prone to electrical disturbances.

The CVAR-01C varistor board is installed within the drive cabinet or power section and acts as a line transient voltage suppressor, absorbing and clamping potentially harmful voltage surges caused by lightning strikes, switching transients, and other electrical anomalies. This protection safeguards the sensitive power electronics inside ABB drives, preventing damage to IGBTs, control boards, and power components.

By extending equipment life and reducing unexpected downtime, the CVAR-01C offers both technical and economic value to industries relying on the continuous operation of critical motor control systems. It is a plug-in module specifically designed for compatibility with ABB ACS800 and ACS880 drive series, ensuring seamless integration.

Product Specifications

Applications

The ABB CVAR-01C Specific Varistor Board Kit is designed for a wide range of industrial and commercial applications where drives operate under conditions subject to electrical disturbances:

• Water & Wastewater Plants

  Protecting pump drives from voltage spikes due to long motor cables and external transients.

• HVAC Systems

  Shielding fan and compressor drives from surges in large commercial HVAC systems.

• Mining & Cement

  Heavy duty protection for variable frequency drives in harsh industrial power networks.

• Renewable Energy Systems

  Safeguarding inverters and drives in solar, wind, and hydroelectric installations.

• Oil & Gas

  Surge protection for motor drives used in compressors, pumps, and processing facilities.

• Marine & Offshore

  Protection of propulsion drives and winch systems in electrically noisy marine environments.

Product Advantages

• Enhanced Drive Protection

  Protects sensitive power components from damaging transients.

• Designed for ABB Drives

  Fully compatible with ABB ACS800 and ACS880 drive systems for seamless installation.

• Compact & Easy Installation

  Factory retrofit or field upgrade kit, requires minimal space inside drive enclosure.

• Rapid Response

  Responds in less than 25 ns to clamp surge voltages.

• Improves System Reliability

  Helps prevent downtime and extends drive service life.

• Cost-Effective Solution

  A simple and affordable upgrade to mitigate surge-related failures.

• Complies with Global Standards

  CE, UL, RoHS, and EMC compliant.

• No External Components Required

  Internal mounting eliminates the need for bulky external protection devices.

• Suitable for Harsh Environments

  Operates across wide temperature and humidity ranges.

• ABB Ecosystem Support

  Part of ABB’s extensive portfolio of certified drive accessories.

Frequently Asked Questions (FAQ)

1. What is the main function of CVAR-01C?

   It protects ABB drives from voltage surges by absorbing and clamping transient overvoltages.

2. Which ABB drives are compatible with CVAR-01C?

   It is designed for ACS800 and ACS880 series drives, with partial compatibility on ACS550.

3. How is the board installed?

   It is installed inside the drive cabinet — either at the factory or as a field retrofit.

4. Does it protect both input and output of the drive?

   Primarily protects the AC line input side of the drive.

5. Does CVAR-01C require external wiring?

   No, it mounts internally and connects directly to the drive power board.

6. Can this board prevent lightning strike damage?

   It reduces damage from lightning-induced surges but should be used with other system-level surge protection for full lightning protection.

7. What is the rated surge capacity?

   It can absorb over 400 J and handle surge currents of over 10 kA.

8. How fast does the board respond?

   Less than 25 nanoseconds.

9. Is it necessary for all ABB drive installations?

   It is highly recommended in installations exposed to high surge environments, long cable runs, or unstable power supplies.

10. Is the board certified for industrial applications?

    Yes, it is CE marked, UL listed, RoHS compliant, and meets industrial EMC standards.
