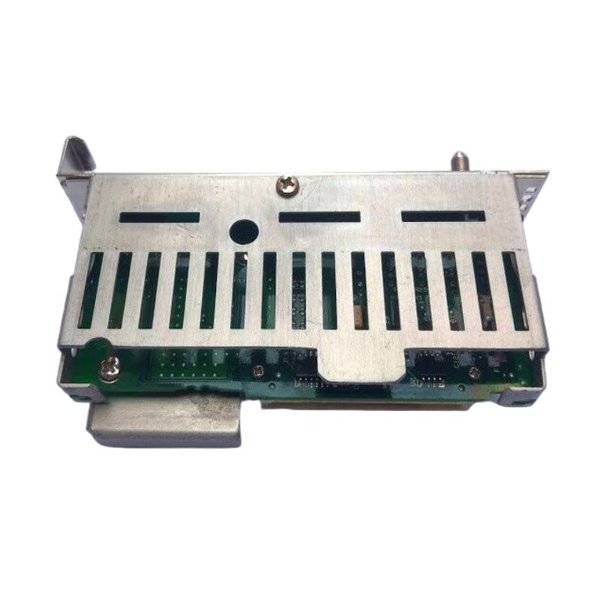

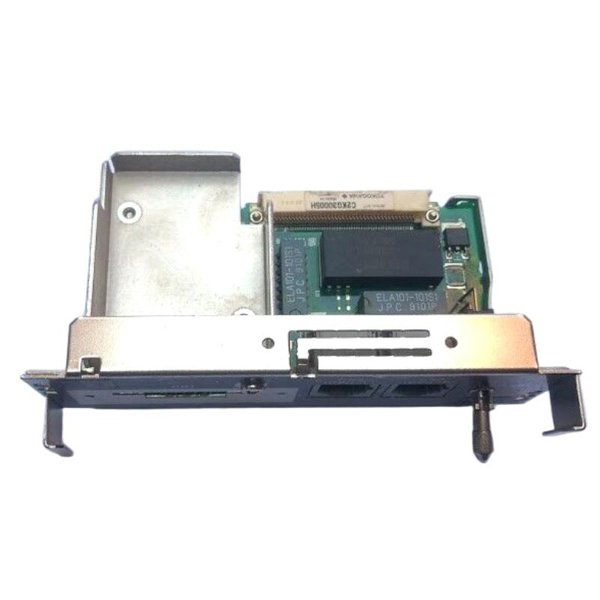

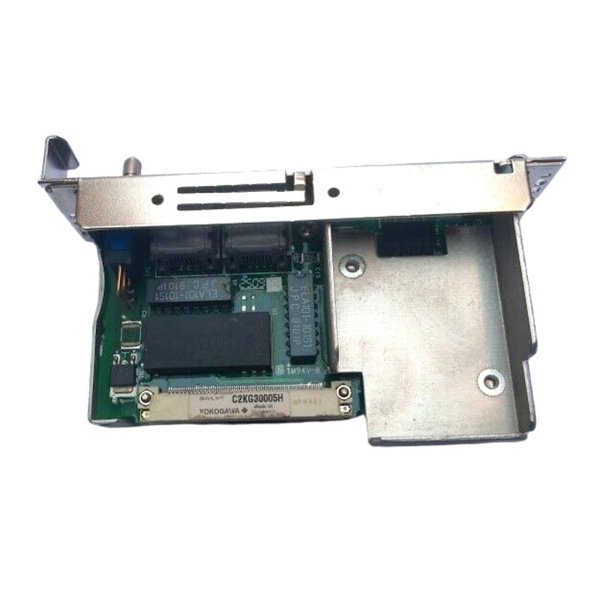

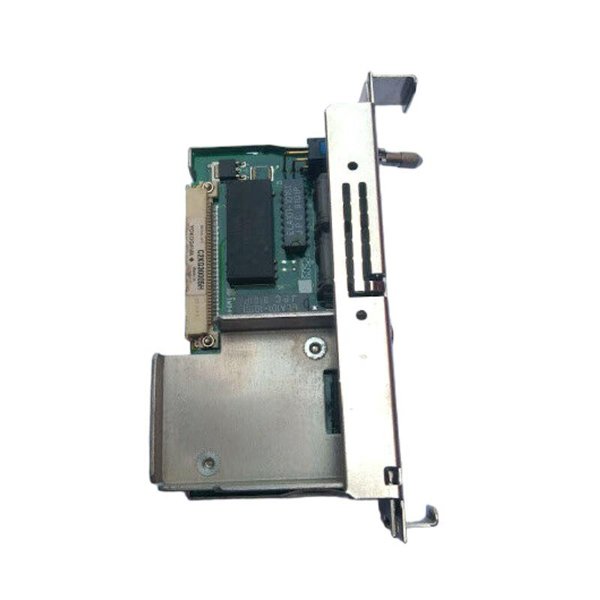

Yokogawa AIP504-11 S1 V Net Coupler Unit

The Yokogawa AIP504-11 S1 V Net Coupler Unit is a dedicated communication module designed for Yokogawa’s CENTUM VP distributed control system (DCS) and other Yokogawa automation platforms. This coupler unit plays a vital role in establishing and maintaining communication within the V Net high-speed control network, ensuring smooth data exchange between field control stations (FCS), engineering stations, and human interface stations (HIS).

The S1 version is an enhanced type of the AIP504-11 series, engineered to provide increased robustness, higher network reliability, and additional stability under complex industrial conditions. It supports dual redundant communication, advanced error detection, and seamless failover to maintain uninterrupted operations.

The AIP504-11 S1 is widely applied in industries requiring continuous operation such as oil & gas, petrochemical plants, thermal and nuclear power generation, pharmaceuticals, and large-scale chemical production facilities.

Product Parameters

Product Applications

The AIP504-11 S1 V Net Coupler Unit is a versatile and indispensable module in complex control environments. Its main applications include:

• Control System Backbone: Serves as the communication bridge across field control stations and operator interfaces.

• Redundant Network Structures: Provides dual communication channels for maximum system uptime in mission-critical plants.

• Integration with Safety Systems: Supports seamless data flow between CENTUM VP and ProSafe-RS safety systems.

• Expansion of Large Plants: Facilitates the connection of additional stations without disrupting ongoing operations.

• Industrial Process Automation: Applied in oil refineries, chemical plants, and power stations where continuous monitoring and control are essential.

• Real-Time Synchronization: Ensures deterministic data exchange with precise timing for coordinated plant operations.

Product Advantages

• Enhanced Reliability: Built to handle mission-critical operations with fault-tolerant communication.

• Redundancy Support: Automatic switchover in case of network path failure.

• Strong Noise Immunity: Resistant to electromagnetic disturbances, ensuring stable communication in industrial sites.

• Hot-Swap Maintenance: Allows replacement without shutting down the system when redundancy is active.

• Scalable Architecture: Supports future plant expansions with minimal configuration changes.

• Deterministic Data Transmission: Guarantees low latency and real-time response for process control.

• Built-In Diagnostics: Provides continuous monitoring, error reporting, and self-checking.

• Long-Term Operational Stability: Designed for 24/7 industrial operations with high durability.
