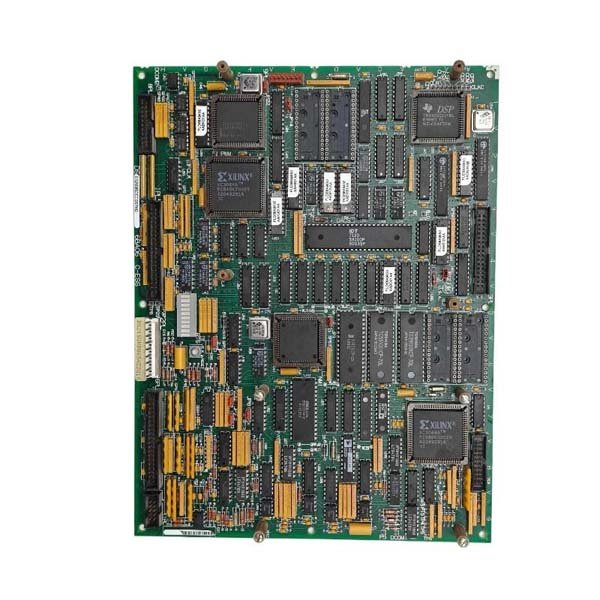

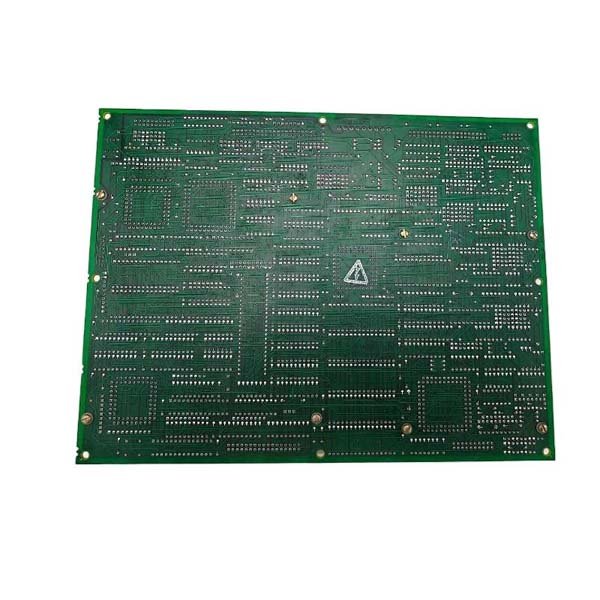

General Electric DS215GHDQG5AZZ01 High-Density Gate Driver Module

The DS215GHDQG5AZZ01 is a high-density gate driver module engineered by GE for medium-to-high power industrial drive systems. From a design standpoint, this board serves as the intermediary layer between the system’s control processor and the power semiconductor stages. It ensures accurate switching, stable gate charge delivery, and robust protection during high-current transitions.

What distinguishes this module is its emphasis on synchronized gate triggering, noise-immune pathways, and multiple layers of diagnostic feedback. Within GE’s drive architecture, the module plays a pivotal role in aligning control logic timing with power electronics performance—a critical aspect in inverter, rectifier, and converter applications.

Technical Specifications

Application Scope

• Inverter and converter power stage gating

• IGBT / SCR control in industrial drive systems

• High-power rectifier switching

• Turbine auxiliary power electronics

• Regenerative drive systems

• Precision motor control applications requiring synchronized switching

Advantages – Based on System Architecture Evaluation

• High isolation integrity, ensuring safe operation across high-voltage boundaries

• Synchronized gate timing, enabling smooth and efficient switching transitions

• Advanced protection layers, significantly reducing risk of semiconductor stress

• Signal conditioning optimized for EMI-heavy environments

• Integrated diagnostics, simplifying system-level troubleshooting

• Compact high-density footprint, ideal for modular power converter designs

Technical FAQs

1. Does the module support high-speed IGBT gate control?

   Yes, its output channels are designed for rapid, precise switching.

2. Is desaturation detection integrated?

   It includes dedicated hardware-level desaturation sensing circuits.

3. Can the module protect against shoot-through events?

   Yes, protective interlocks are embedded in the logic.

4. Does it isolate control signals from power semiconductors?

   Full galvanic isolation is implemented.

5. How does it handle noise from large switching transients?

   With optimized filtering and isolated pathways.

6. Are gate failure states reported to the main controller?

   Diagnostic lines communicate fault conditions via backplane.

7. Can it drive multiple power stages simultaneously?

   Yes, depending on system configuration.

8. Is there built-in overcurrent protection logic?

   Protective routines engage upon threshold detection.

9. How is thermal stress on the module handled?

   Through low-loss pathways and controlled PCB heating zones.

10. Is DS215GHDQG5AZZ01 compatible with older DS200 GHDQ variants?

    Only if system firmware and gate thresholds align.
