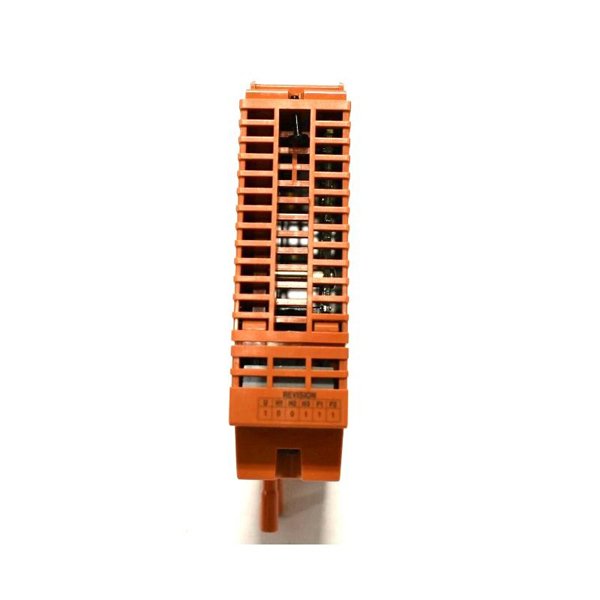

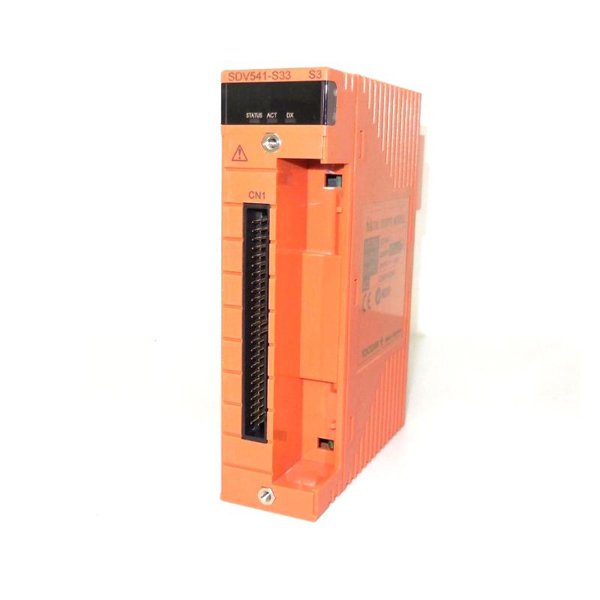

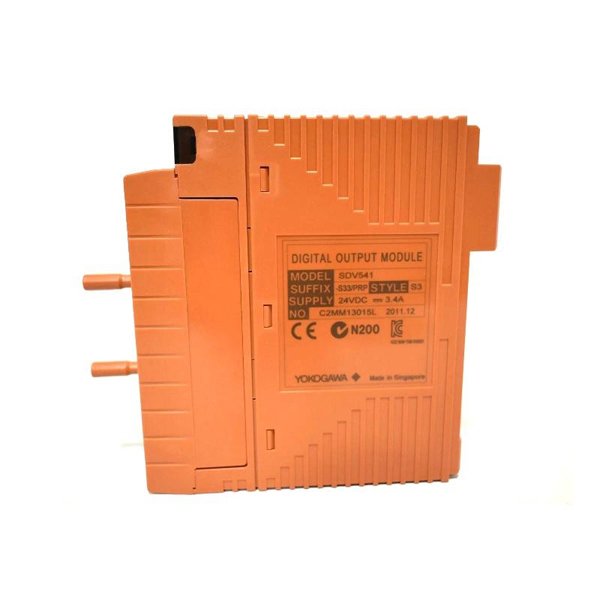

Yokogawa SDV541-S33/PRP Digital Output Module
Manufacturer:Yokogawa
Product Number:SDV541-S33/PRP
Product Type:Digital Output Module
Origin:Japan
Dimensions:130 x 107.5 x 32.8mm
Weight:0.29kg
Views:46
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa SDV541-S33/PRP is a 16-channel digital output module designed for use within the ProSafe-RS safety instrumented system. It outputs 24 V DC current source signals to field devices and ensures high reliability and modular isolation for each channel. Featuring robust diagnostic capabilities, it is ideal for demanding safety-critical applications. The /PRP option includes a false insertion prevention mechanism for added operational integrity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SDV541-S33/PRP |
| Output Channels | 16-channel, module isolation |
| Output Voltage | 24 V DC |
| Output Voltage Drop | Max. 1 V |
| Output Format | Current source |
| Max Load Current per Channel | 0.2 A |
| Total Max Load Current | 3.2 A |
| Min Load Current | 35 mA |
| Load Resistance Range | 120 to 685 Ω |
| External Power Supply | 24 V DC +20% / -10%, 3.4 A minimum |
| Output Response Time | Max. 30 ms |
| Leakage Current (OFF Status) | 1.6 mA |
| Withstand Voltage | 2 kV AC (for 1 min, 16-point lines connected) |
| Current Consumption | Max. 300 mA (5 V DC), Max. 150 mA (24 V DC) |
| External Connection | Pressure clamp terminal / MIL cable / AKB331 / AKB651 |
| Dimensions (W x H x D) | 130 × 107.5 × 32.8 mm |
| Weight | 0.29 kg (without signal cable adapter) / 0.31 kg (with signal cable adapter) |
Applications
-
Emergency shutdown systems (ESD)
-
Fire & gas protection systems
-
Safety-critical interlocking control
-
High-integrity process control environments
-
SIL-certified safety systems
Advantages
-
High-channel density: 16 outputs in a compact module
-
Excellent electrical isolation ensures noise immunity and safety
-
Supports redundant configurations for reliability
-
False insertion prevention with /PRP option
-
Fully compatible with Yokogawa’s ProSafe-RS FIO system
-
Field diagnostic capabilities built-in, eliminating extra diagnostic wiring
Frequently Asked Questions (FAQ)
Q1: What is the rated voltage for the SDV541-S33/PRP?
A1: The rated output voltage is 24 V DC.
Q2: Can this module be used in safety-critical applications?
A2: Yes, it is designed specifically for safety instrumented systems, including SIL-rated applications.
Q3: What is the maximum current per channel?
A3: Each output can handle up to 0.2 A, with a total maximum of 3.2 A.
Q4: Does it support redundant output configurations?
A4: Yes, it can be configured for dual-redundancy.
Q5: What are the compatible signal cables?
A5: Compatible signal cables include AKB331 and AKB651.
Q6: How is module insertion error prevented?
A6: The /PRP option provides a mechanical pin to prevent incorrect insertion.
Q7: Is the module suitable for high-temperature environments?
A7: With the appropriate suffix code (e.g., “3” or “C”), it supports ISA G3 and -20 to 70°C range.
Q8: What is the module’s response time?
A8: Maximum output response time is 30 milliseconds.
Q9: What is the leakage current when the output is off?
A9: It is 1.6 mA per output channel.
Q10: How much space does it take in the cabinet?
A10: It measures 130 mm × 107.5 mm × 32.8 mm and weighs approximately 0.29 kg.
