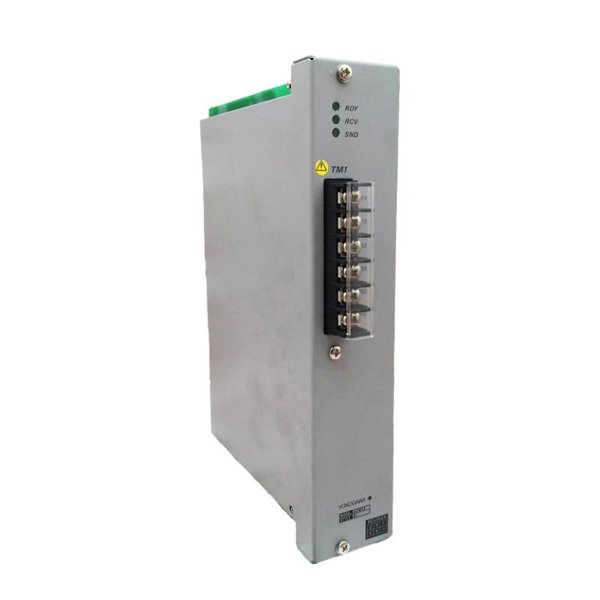

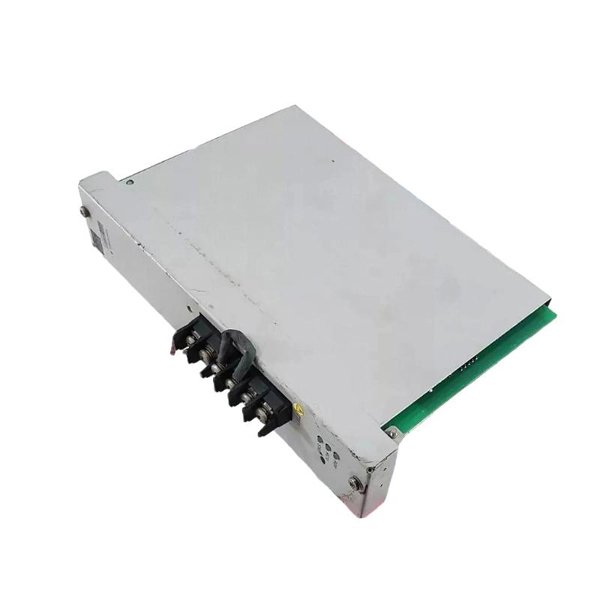

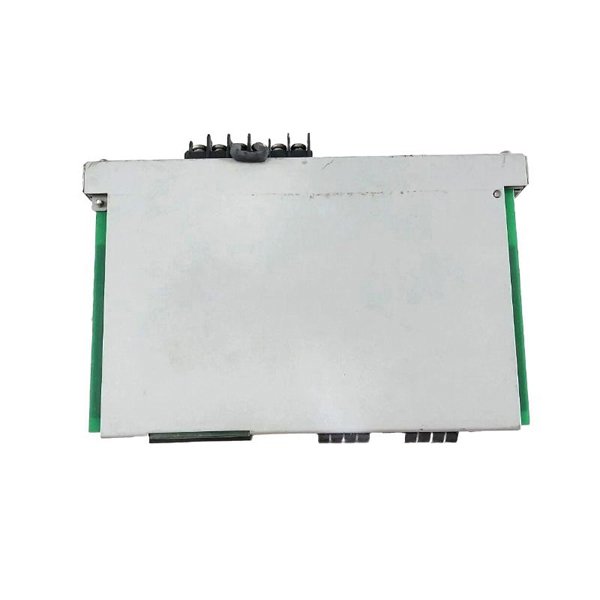

Yokogawa ACM12 Communication Module

The Yokogawa ACM12 Communication Module is an advanced multi-protocol interface designed for seamless integration of field devices into Yokogawa control systems such as CENTUM VP and ProSafe-RS. It is specifically engineered to support high-speed communication, protocol conversion, and network management within industrial automation systems.

ACM12 enables reliable connectivity between controllers and field instrumentation, ensuring real-time data transmission, device diagnostics, and fault detection. With its robust design, the module guarantees operational continuity even in harsh industrial environments. It is widely applied in process industries, including oil & gas, petrochemical, power generation, and water treatment, where precise and uninterrupted communication is critical to plant safety and efficiency.

Product Specifications

Product Applications

The ACM12 module is designed for reliable data communication and integration of field devices in industrial control systems:

• Process Plants – Aggregates data from distributed sensors into the control system.

• Oil & Gas Facilities – Ensures secure and real-time communication between controllers and field instruments.

• Power Generation – Provides high-speed communication for plant monitoring and automated control.

• Water & Wastewater Treatment – Enables data collection, protocol conversion, and network diagnostics.

• Chemical & Petrochemical Plants – Supports integration of both legacy and modern instrumentation for centralized monitoring.

• Refineries – Redundant communication paths ensure uninterrupted data transfer for critical safety and process control.

Product Advantages

• Multi-Protocol Support – Integrates FOUNDATION Fieldbus, HART, Modbus, and DeviceNet devices into a single system.

• Redundant Communication – Maintains system operation during network failures.

• Real-Time Diagnostics – Provides immediate alerts on communication errors or device failures.

• Flexible Installation – Supports DIN rail or system backplane mounting for easy integration.

• Seamless System Integration – Works directly with Yokogawa CENTUM VP and ProSafe-RS systems.

• Compact and Lightweight – Simplifies installation and reduces space requirements in control racks.

FAQ

1. Which communication protocols are supported by ACM12?

   It supports FOUNDATION Fieldbus, HART, Modbus, and DeviceNet depending on the configuration.

2. How many communication ports are available on the ACM12?

   The module provides 2 to 4 ports depending on the specific model.

3. Does ACM12 support redundant communication paths?

   Yes, it offers redundancy for continuous operation and high reliability.

4. What is the maximum data transmission rate?

   Up to 31.25 kbps for FOUNDATION Fieldbus and up to 115.2 kbps for other protocols.

5. Can the module perform real-time diagnostics?

   Yes, it monitors communication health and device status continuously.

6. What is the operating temperature range for ACM12?

   0°C to +55°C.

7. How is the ACM12 powered?

   It is powered through 24 VDC supplied via the system backplane.

8. What mounting options are available?

   DIN rail mounting or system backplane installation.

9. Can ACM12 integrate both modern and legacy field devices?

   Yes, its multi-protocol capability allows integration with a wide range of instruments.

10. Which certifications does ACM12 hold?

    CE, UL, CSA, and ATEX (depending on the configuration).
