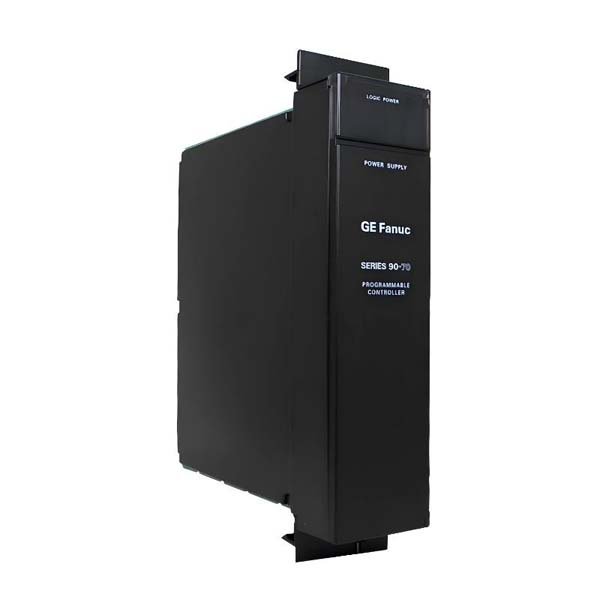

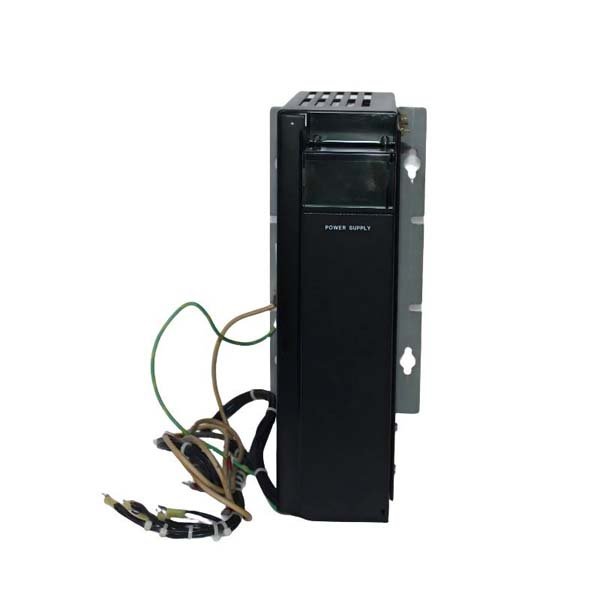

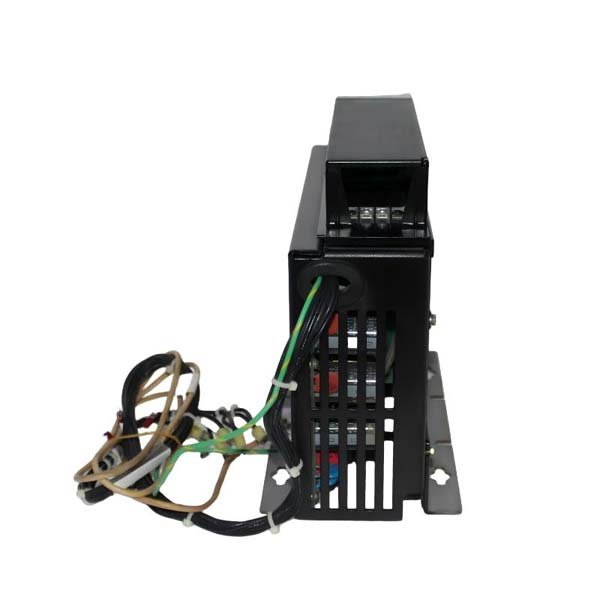

General Electric IC697PWR722 Power Supply Module
Manufacturer:GE Fanuc
Product Number:IC697PWR722
Product Type:Power Supply Module
Origin:USA
Dimensions:328 mm × 50 mm × 200 mm
Weight:2.4 kg
Views:124
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IC697PWR722 is a high-capacity power supply module engineered for the Series 90-70 PLC platform. It delivers stable DC power to CPU modules, racks, and associated I/O, making it suitable for installations that demand rugged electrical performance and continuous 24/7 operation. This model is commonly deployed in heavy industrial plants where load stability and long-term reliability are critical to system uptime.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc / GE Automation |
| Module Type | Power Supply Module |
| System | GE Series 90-70 |
| Input Voltage | 120/240 VAC auto-range |
| Output Voltage | +5 VDC, +12 VDC, –12 VDC |
| Output Current | Supports high-load backplane consumption |
| Indicators | Status and diagnostic LEDs |
| Cooling | Passive convection |
| Mounting | Series 90-70 rack slot |
Dimensions (H × W × D)
Approx. 328 mm × 50 mm × 200 mm
Weight
Approx. 2.4 kg
Applications
Large-scale PLC control racks
Continuous-process manufacturing environments
Power distribution for high-density I/O systems
Plant automation controllers with redundant configurations
Critical infrastructure and utilities control panels
Advantages
High output stability for large backplane loads
Integrated diagnostics for power health monitoring
Auto-range AC input reduces configuration complexity
Long-life industrial-grade components for harsh environments
Fits seamlessly into existing Series 90-70 rack systems
FAQs
Is the IC697PWR722 compatible with all 90-70 racks?
Yes, it supports all standard Series 90-70 racks.
Does it support redundant power architectures?
It can be used in redundant rack configurations depending on system design.
What is the main output used by the CPU?
The CPU uses regulated +5 VDC supplied through the backplane.
Is forced-air cooling required?
No, it is designed for passive cooling under normal load.
Can the module operate at 240 VAC without rewiring?
Yes, it auto-ranges between 120/240 VAC.
Does it include overload protection?
Yes, built-in protection circuitry is provided.
Is hot swapping allowed?
No, the rack must be powered down before removal.
Can it power extended I/O racks?
It powers the local rack; remote racks require their own supply.
Does it generate significant heat under load?
Heat output is moderate and consistent with high-capacity supplies.
Are diagnostic LEDs visible when mounted?
Yes, status LEDs are front-mounted for easy panel inspection.
