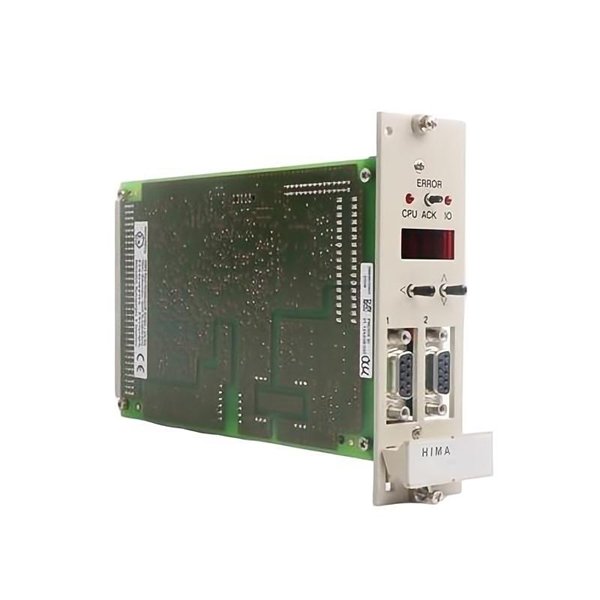

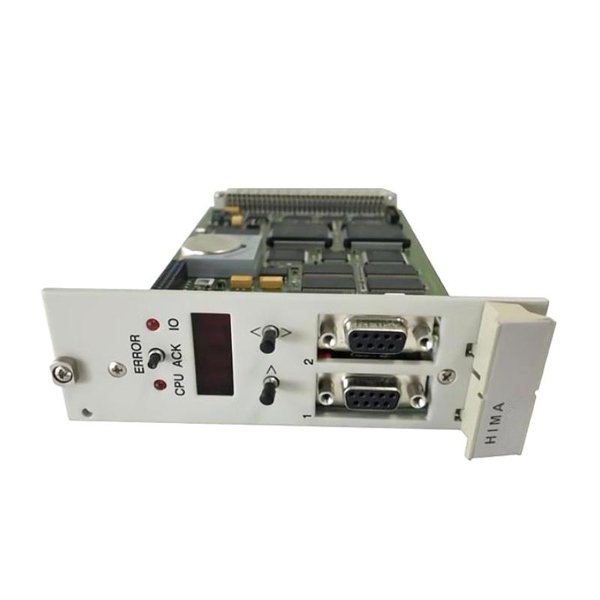

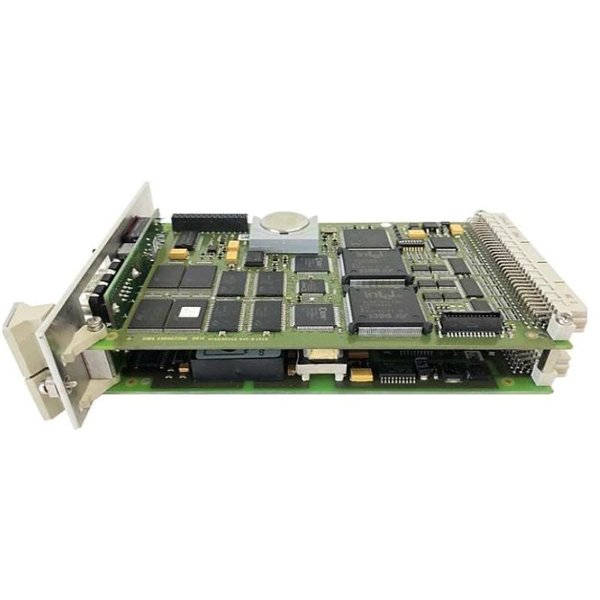

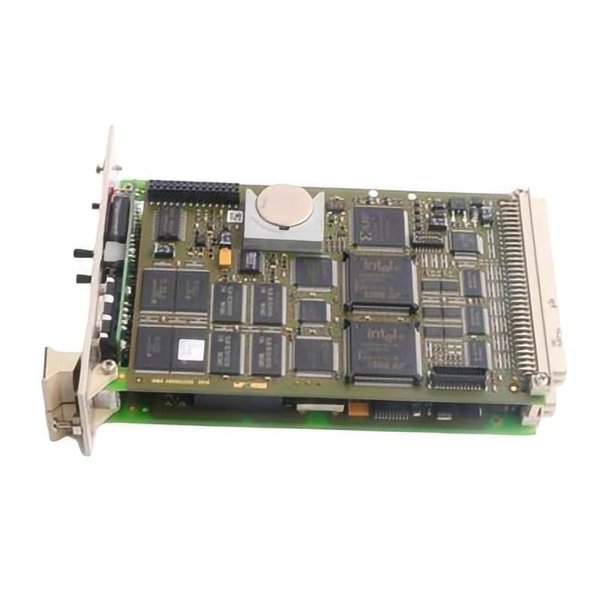

Hima F-CPU 01 Processor Module

The HIMA F-CPU 01 Processor Module is the central processing unit of the HIMA F-Series Safety Instrumented System (SIS). Designed for mission-critical safety applications, it executes the system logic that monitors and controls industrial processes, including chemical, oil & gas, power generation, and critical infrastructure.

The F-CPU 01 provides high-speed processing, deterministic execution, and secure communication with redundant modules, ensuring that safety functions are carried out reliably under all operating conditions. It forms the core of HIMA’s distributed architecture, enabling both simplex and redundant configurations for maximum operational reliability.

The module supports programmable safety logic, integrates with digital and analog input/output modules, and provides real-time diagnostics, making it essential for systems that require high availability and fast response to process deviations.

Product Parameters

Product Applications

The F-CPU 01 is used in industries that require high integrity safety control:

• Oil & Gas – Monitors emergency shutdown (ESD) sequences, flare systems, and gas detection loops.

• Chemical and Petrochemical – Controls reactor safety logic, temperature and pressure interlocks.

• Power Generation – Supervises turbine and generator protection systems, boiler safety, and turbine sequencing.

• Process Automation – Integrates with field instrumentation to execute real-time safety logic.

• Redundant Safety Architectures – Configured in duplex or triplex systems to ensure continuous safety function.

• Pipeline and Infrastructure – Provides central processing for pressure, flow, and valve control interlocks.

Product Advantages

• High-Speed Deterministic Execution – Ensures that safety-critical actions are performed with minimal latency.

• Redundant Architecture Support – Fully compatible with redundant configurations for fault tolerance.

• Comprehensive Diagnostics – Real-time self-monitoring, fault logging, and predictive diagnostics enhance reliability.

• Scalable System Integration – Supports a wide range of digital, analog, and relay I/O modules.

• Industrial Durability – Designed to withstand harsh temperatures, vibration, and electrical noise.

• Modular Design – Simplifies maintenance and reduces system downtime.

• Secure Communication – Ensures safe and reliable transmission of control data.

• Global Industry Compliance – Meets international safety standards such as IEC 61508 and IEC 61511.

FAQ

1. What is the primary function of the HIMA F-CPU 01?

   It serves as the central processor executing all safety logic in the F-Series SIS.

2. Does it support redundant configurations?

   Yes, it supports simplex, duplex, and triplex redundant system architectures.

3. How does the module communicate with I/O devices?

   It communicates via the redundant system backplane with digital, analog, and relay I/O modules.

4. Does it include diagnostic features?

   Yes, it provides self-test routines, watchdog monitoring, and error logging.

5. Can the F-CPU 01 interface with Ethernet networks?

   Yes, Ethernet interfaces are optionally available for remote monitoring and configuration.

6. What is the operating temperature range?

   The module operates reliably between -20 °C and +60 °C.

7. Is the module hot-swappable?

   No, it requires proper shutdown of the system before removal.

8. How does it contribute to process safety?

   By executing deterministic safety logic, it ensures immediate response to unsafe conditions.

9. Can it handle complex process logic?

   Yes, it supports high-speed processing for advanced safety algorithms and sequences.

10. Is it suitable for multiple industries?

    Yes, it is used in oil & gas, chemical, power generation, and critical infrastructure applications.
