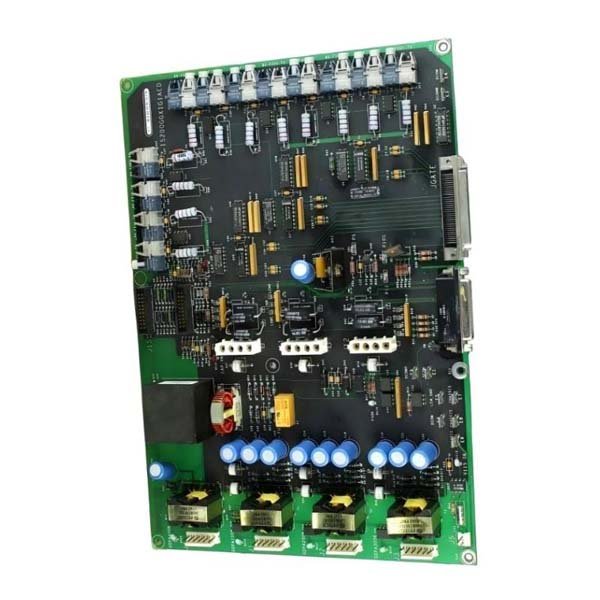

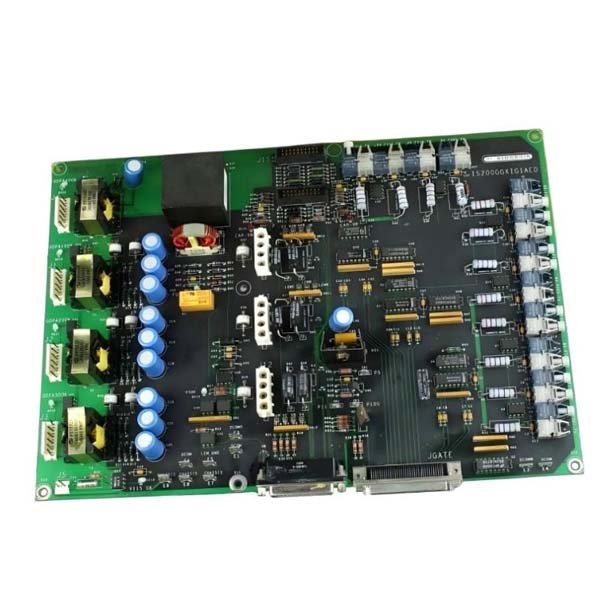

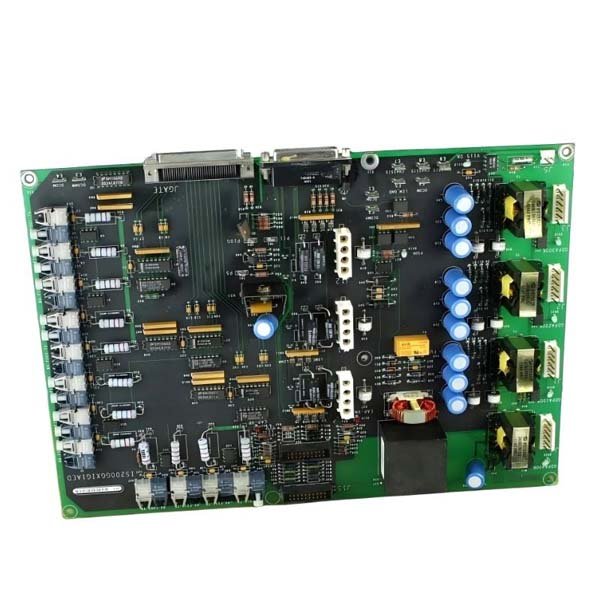

General Electric IS200GGXIG1AFE High-Fidelity Gate Generator Interface Module
Manufacturer:GE Fanuc
Product Number:IS200GGXIG1AFE
Product Type:Gate Generator Interface Module
Origin:USA
Dimensions:209 mm × 140 mm × 33 mm
Weight:0.72 kg
Views:93
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The GE IS200GGXIG1AFE is engineered as a precision gate-generator interface board used in Mark VI power-electronic platforms. It strengthens the coordination between control logic and IGBT gate-drive hardware, enabling converters and turbine-drive assemblies to maintain refined switching behavior under demanding load transitions. This module is widely selected for upgrades, lifecycle support programs, and reliability-driven maintenance projects where pulse fidelity and timing exactness are critical performance indicators.
Technical Specifications & Physical Attributes
| Specification | Details |
|---|---|
| Brand | GE |
| Model | IS200GGXIG1AFE |
| Module Type | Gate Generator Interface Module |
| Operating Role | Gate pulse routing, timing stabilization, signal translation |
| System Platform | Mark VI industrial drive and turbine controls |
| Supported Hardware | IGBT gate drive and converter assemblies |
| Electrical Layer | Low-level logic / high-speed gate signal pathways |
| PCB Type | Industrial protective coating, robust trace layout |
| Dimensions (L × W × H) | 209 mm × 140 mm × 33 mm |
| Weight | 0.72 kg |
| Operating Temperature | –10°C to +65°C |
| Installation Method | Rack-slide insertion with secured connector alignment |
Application Domains
The IS200GGXIG1AFE is positioned in systems where gate signal consistency directly influences converter stability. Its application ranges include：
-
High-power converters in turbine control systems
-
Medium-voltage industrial drive inverter cabinets
-
Multi-pulse switching networks needing synchronized timing
-
Upgrade paths replacing early GGXI or GGXD modules
-
Drive cabinets requiring precise IGBT gate interfacing
In such environments, the board helps maintain switching uniformity, harmonic consistency, and protective integrity.
Key Advantages & Performance Contributions
This module enhances gate command precision through controlled pulse routing and well-tuned timing paths. Engineers often utilize the IS200GGXIG1AFE to stabilize converter performance during fluctuating load conditions or rapid modulation transitions. Its noise-resistant design mitigates interference that could distort IGBT switching, and its hardware durability supports long operational cycles with minimal service interruption.
FAQs
-
What is the main purpose of IS200GGXIG1AFE?
It interfaces and stabilizes gate-generator signals for IGBT drive systems.
-
Is it compatible with Mark VI systems only?
Yes, this module is architected for the GE Mark VI control structure.
-
Does it generate pulses or route them?
Primarily routes and conditions pulses generated in upstream control logic.
-
Can it replace GGXIG1ADE or earlier variants?
Often yes, but revision compatibility must be checked at cabinet level.
-
What symptoms suggest module degradation?
Irregular switching, timing drift, or unpredictable pulse distribution.
-
Does the board require firmware updates?
No; it operates as hardware logic without field-programmable firmware.
-
Is environmental noise a concern?
It is designed to suppress EMI, ensuring clean gate signaling.
-
Can the board support high-frequency switching regimes?
Yes, within GE’s published converter timing boundaries.
-
What is the recommended maintenance action upon failure?
Full board replacement rather than field repair.
-
Does installation require system recalibration?
Typically no—Mark VI architecture handles alignment automatically.
