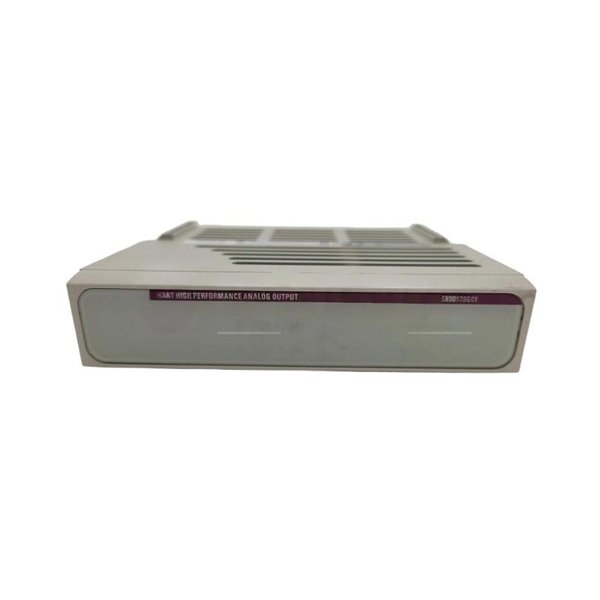

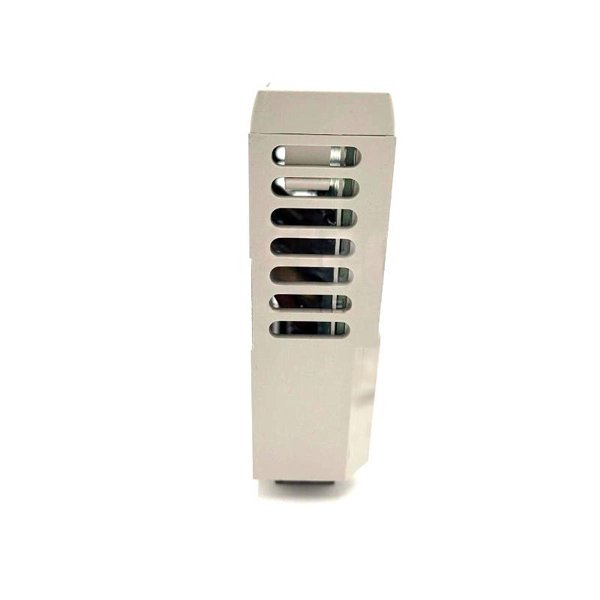

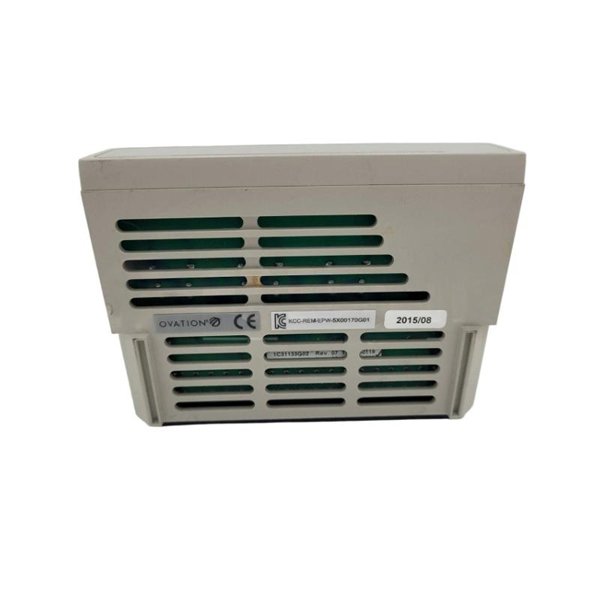

Ovation 5X00170G01 HART High-Performance Analog Output Module

The Ovation 5X00170G01 HART high-performance analog output module is designed to provide reliable and precise control for industrial automation systems. It is typically used in process control systems where accurate analog output signals are crucial. This module supports HART (Highway Addressable Remote Transducer) communication, enabling it to integrate seamlessly with existing process control networks.

Product Specifications

Product Applications

• Process Control Systems: The module is primarily used in process control systems to transmit analog signals that regulate various parameters in industrial processes.

• Industrial Automation: It enables seamless communication and data transmission between field devices and controllers, ensuring smooth automation workflows.

• Energy Systems: Useful in energy management and monitoring systems where precise analog outputs are necessary for maintaining system stability.

• Manufacturing: Can be employed in manufacturing plants to regulate variables such as pressure, flow, or temperature.

Product Advantages

• High Accuracy and Reliability: The Ovation 5X00170G01 offers high precision in analog output, which is essential for the efficiency and stability of critical industrial processes.

• HART Communication Support: With HART compatibility, this module provides remote communication, allowing for easy integration and configuration with HART-enabled field devices.

• Wide Temperature Range: With an operating temperature range of -20°C to 60°C, the module is suitable for use in harsh environments, ensuring robust performance in various settings.

• Compact and Easy to Mount: Its compact size and DIN rail mounting make it simple to integrate into existing systems without taking up too much space.

• Durable and Long-lasting: Designed with high-quality materials and IP20-rated housing, the module is built for longevity, even in industrial environments.

FAQ

1. What is the output type of the Ovation 5X00170G01 module?

The output type is analog, with a standard 4-20mA range.

2. Does this module support HART communication?

Yes, the Ovation 5X00170G01 module supports HART communication for easy integration with HART-enabled field devices.

3. What is the power supply requirement for the Ovation 5X00170G01 module?

The module requires a 24V DC power supply for operation.

4. Can this module be used in high-temperature environments?

Yes, it operates within a temperature range of -20°C to 60°C, making it suitable for various industrial conditions.

5. What is the typical mounting method for the Ovation 5X00170G01?

The module is designed for DIN rail mounting, which makes installation easy and secure in industrial control panels.

6. How precise is the analog output from this module?

The Ovation 5X00170G01 module provides high accuracy and reliability in transmitting analog output signals, essential for precise control in industrial processes.

7. Can I use this module for energy monitoring applications?

Yes, it is suitable for energy management systems, where precise analog outputs are necessary for controlling energy-related parameters.

8. What is the weight of the Ovation 5X00170G01 module?

The module weighs 0.3 kg, which makes it lightweight and easy to handle during installation.

9. What is the housing rating of this module?

The module has an IP20-rated housing, ensuring protection from solid objects larger than 12mm but not from water.

10. Is this module compatible with other Ovation products?

Yes, the Ovation 5X00170G01 is part of the Ovation series, and it integrates seamlessly with other products in the Ovation system.
