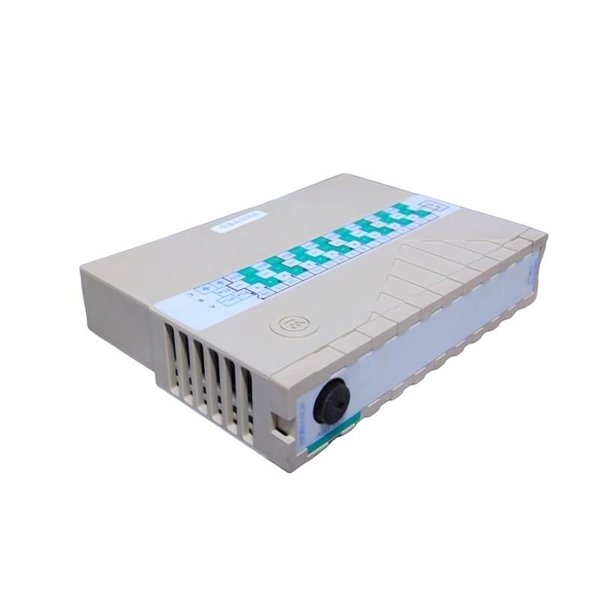

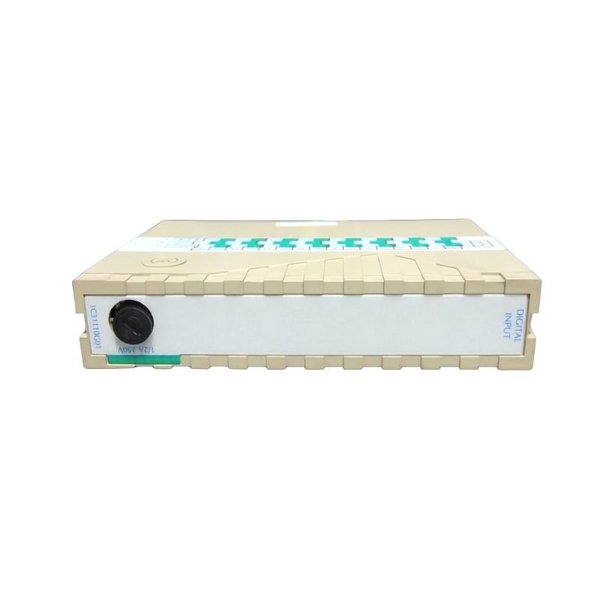

The Ovation 1C31110G01 Digital Input Module is a critical component in the Ovation system designed for the reliable monitoring and processing of digital input signals in industrial automation environments. It integrates seamlessly into the Ovation control system, providing high-speed data acquisition and robust performance in demanding applications such as power plants, manufacturing, and process control.

The module features multiple digital input channels, designed to receive signals from various field devices such as switches, sensors, and relays. It is engineered for precise control, offering high reliability and low latency in critical monitoring tasks. Its modular design allows for flexible system configuration and easy expansion, ensuring that it meets the unique requirements of each installation.

Product Specifications

Applications

The Ovation 1C31110G01 Digital Input Module is widely used in the following applications:

• Power Plants: It is essential for monitoring digital inputs from various sensors and devices in power plants, including turbine control systems, switchgear, and protective relays.

• Manufacturing Automation: The module supports digital signals from production line sensors, safety systems, and process control equipment, ensuring smooth and efficient operation.

• Industrial Process Control: In complex industrial environments, the module is used for receiving signals from control panels, safety interlocks, and other critical systems to ensure precise operation and timely intervention.

• Oil and Gas: In remote or hazardous environments, the module is used for digital signal acquisition, ensuring safety and effective monitoring in critical oil and gas infrastructure.

• Building Automation: The module can be integrated into building management systems for controlling lighting, HVAC systems, and security equipment.

• Water Treatment: It plays a role in water treatment plants, monitoring inputs from pumps, valves, and flow sensors to ensure optimal system performance.

Advantages

1. High Channel Count: The Ovation 1C31110G01 module features 32 input channels, enabling the connection of numerous field devices to a single module, reducing wiring complexity.

2. Wide Temperature Range: With an operating range of -20°C to +70°C, the module is designed to function effectively in a variety of harsh environmental conditions, including extreme temperatures.

3. Fast Response Time: The module features a fast response time of < 10 ms, which is critical in real-time applications requiring immediate feedback and control.

4. Versatile Input Types: It supports both dry contact and 24 V DC logic level inputs, making it compatible with a wide range of field devices, from simple switches to complex sensors.

5. Flexible Communication Protocols: It supports both MODBUS RTU and MODBUS TCP communication protocols, allowing seamless integration into various industrial networks.

6. Compact Design: The compact size of the module (150 x 120 x 90 mm) makes it easy to integrate into existing control panels, minimizing space requirements.

7. Reliable Performance: Designed for use in critical applications, the module offers excellent performance, ensuring reliable data transmission and system monitoring.

8. Easy Installation and Maintenance: The DIN rail mountable design simplifies installation, and the clear LED indicators for input status and faults provide easy troubleshooting.

9. Safety Certifications: The module comes with CE and UL certifications, ensuring compliance with international safety and quality standards.

10. Scalability: As part of the Ovation system, this module can be easily integrated with other Ovation products, enabling system expansion and upgrade as needed.
