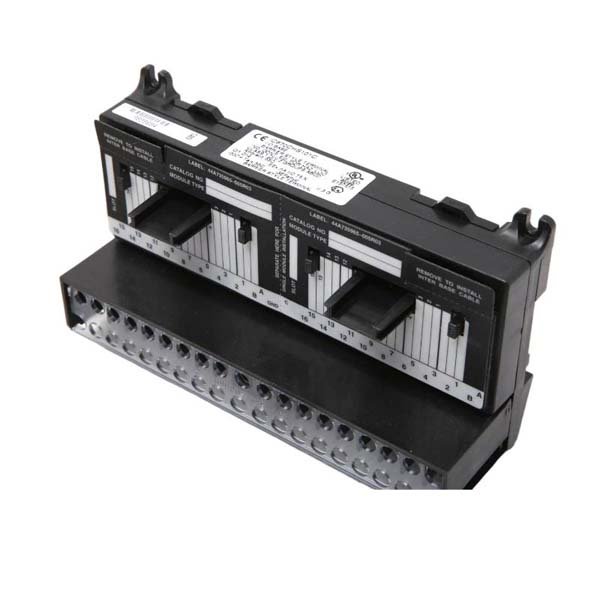

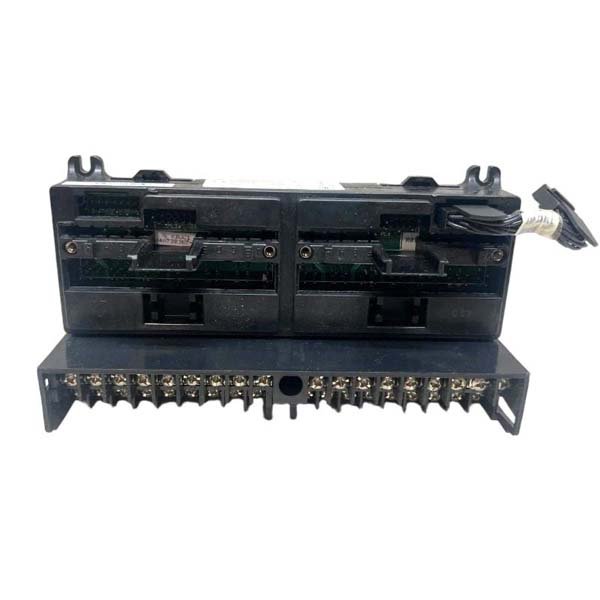

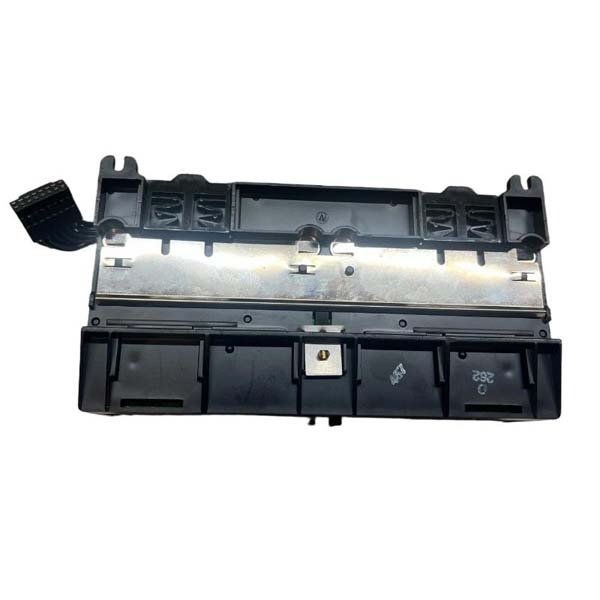

GE Fanuc IC670CHS101 Chassis Module

The GE IC670CHS101 is a 7-slot chassis module designed for the IC670 / RX3i distributed I/O platform. In system architectures that require a mid-range expansion rack, this chassis offers a stable and electrically balanced backplane for analog, digital, communication, and specialty modules.

As part of GE’s modular I/O design philosophy, the IC670CHS101 focuses on predictable signal propagation, clean bus timing, and consistent power distribution. Its mechanical construction is engineered to withstand industrial environments while supporting a flexible configuration footprint for system integrators.

Technical Specifications

Applications / Deployment Scenarios

• Distributed I/O expansion for GE RX3i and IC670 systems

• Medium-size automation islands requiring 7 module positions

• Factory control networks combining digital, analog, and communication modules

• PLC modernization projects where legacy and new modules must co-exist

• Packaging, material handling, and continuous process systems

Advantages / Engineering Benefits

• Seven-slot expansion capacity supports moderate system growth without requiring a second chassis

• Stable electrical backplane ensures uniform bus timing for mixed-signal modules

• Reinforced structure improves vibration resistance in industrial settings

• Unified power distribution simplifies wiring and reduces system point-of-failure exposure

• Modular design supports easy replacement and reconfiguration during maintenance

• Ideal footprint for mid-size distributed I/O segments

FAQs

1. How many modules can the IC670CHS101 support?

   – Up to seven modules.

2. Is it compatible with RX3i components?

   – Yes, through the IC670 distributed I/O interface architecture.

3. Does the chassis require a dedicated power module?

   – It uses IC670 power modules installed in one of the slots.

4. Can analog and digital modules be mixed on the same chassis?

   – Yes, the backplane supports mixed-signal configurations.

5. Is hot insertion supported?

   – No, power must be removed before replacing modules.

6. How is the chassis mounted?

   – Panel-mounted using industrial-grade rear alignment brackets.

7. Does it include system LEDs?

   – Yes, power and fault indicators are integrated.

8. What field voltage levels are supported?

   – 24 VDC field distribution depending on module requirements.

9. Is the backplane shielded against noise?

   – Yes, designed with trace spacing and grounding optimized for EMI immunity.

10. What materials are used?

    – Steel frame with robust PCB backplane for long-term industrial durability.
