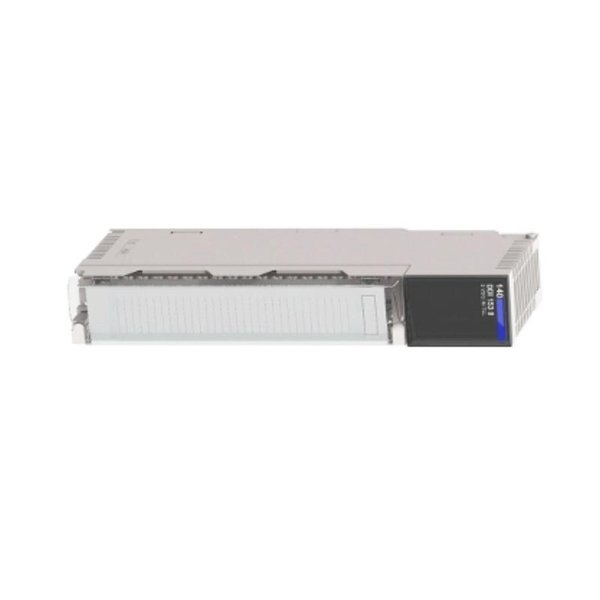

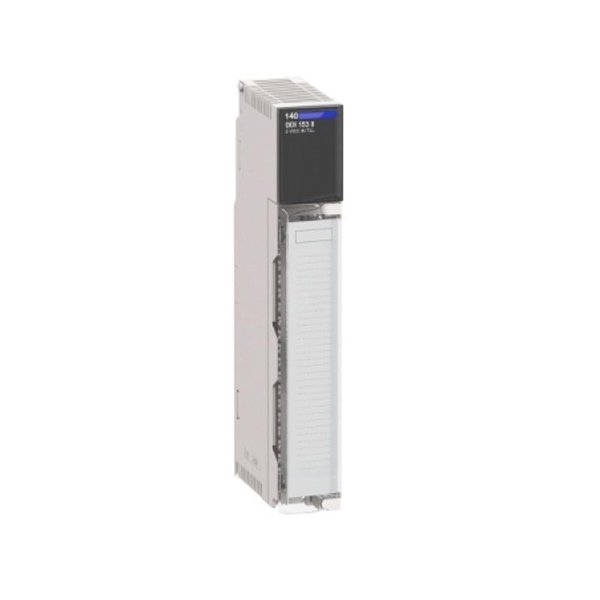

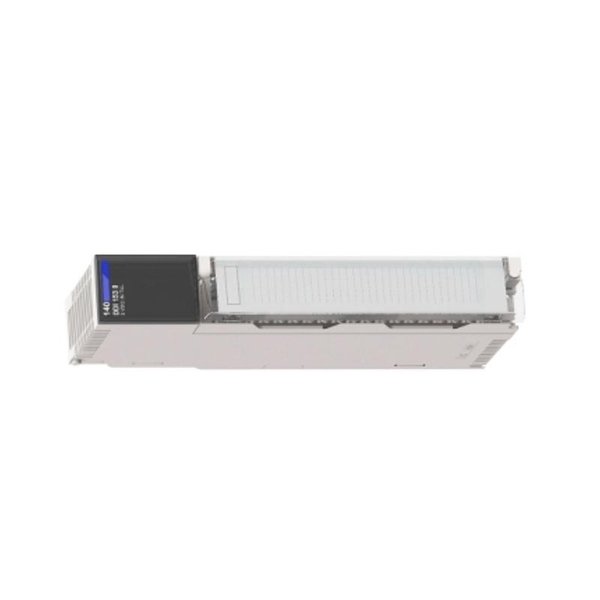

Schneider 140DDI353000 Discrete Input Modules

The 140DDI353000 showcases Schneider Electric’s commitment to quality, blending advanced engineering with a user-friendly modular format that simplifies installation, maintenance, and system expansion. Its ability to seamlessly integrate with other Modicon Quantum components makes it an indispensable part of modern automation architectures.

Technical Specifications

Product Applications

The 140DDI353000 is highly valued in a wide spectrum of industrial automation scenarios, including but not limited to:

• Power plants and energy distribution systems requiring reliable digital signal acquisition

• Process industries (chemical, oil & gas, food & beverage) where precise status monitoring is critical

• Manufacturing lines with discrete control systems, such as packaging and assembly operations

• Building management systems needing integration of numerous digital field devices

• Water and wastewater treatment plants managing pumps, valves, and alarms

• Transport and infrastructure systems for monitoring track status, gates, or signaling

By enabling accurate digital signal capture and processing, it ensures real-time responsiveness and control system stability.

Product Advantages

The Schneider 140DDI353000 digital input module offers several distinct advantages:

• High Density & Efficiency: With 32 input points in a single module, it saves valuable rack space, reducing the need for multiple modules.

• Fast Response Time: Ensures reliable detection of rapid state changes in field equipment, improving control accuracy.

• Robust Isolation: High isolation voltage enhances protection against transient voltages and ground loops, extending system life.

• Modularity & Flexibility: Part of the Modicon Quantum family, it can be easily configured, replaced, or upgraded as plant needs evolve.

• Visual Status Monitoring: Built-in LEDs provide quick diagnostics, reducing downtime during troubleshooting.

• Broad Environmental Tolerance: Operates in harsh industrial environments with wide temperature and humidity ranges.

• Schneider Reliability: Proven quality and global support from a trusted automation leader.

FAQ

Q1: What is the primary use of the Schneider 140DDI353000?

A1: It is designed to acquire digital (on/off) signals from field devices and communicate their status to the controller, supporting various industrial control processes.

Q2: Can it be used with other Schneider series besides Quantum?

A2: It is specifically optimized for the Modicon Quantum platform; however, integration may be possible with other systems via communication gateways.

Q3: How are input statuses displayed?

A3: The module includes LED indicators for each input channel, allowing quick visual confirmation of signal presence.

Q4: Does it support hot-swapping?

A4: Yes, like many Quantum modules, it supports hot-swapping for easier maintenance without stopping the entire system.

Q5: What kind of digital input does it accept?

A5: The module accepts 24 VDC positive logic (sink type) digital inputs.

Q6: How many channels can operate simultaneously?

A6: All 32 input channels can be monitored concurrently without loss of performance.

Q7: What is its response time?

A7: The typical input response time is ≤ 4 ms, which ensures accurate detection of fast input changes.

Q8: Is special software needed for configuration?

A8: Configuration is typically performed using Schneider Electric programming tools compatible with Quantum systems, such as Unity Pro.

Q9: What environmental conditions can it withstand?

A9: Operating temperatures between 0°C to +60°C, storage temperatures from -40°C to +85°C, and relative humidity from 5% to 95% non-condensing.

Q10: How is it mounted?

A10: The module is rack-mounted into a Quantum backplane, ensuring stable mechanical and electrical connection.
