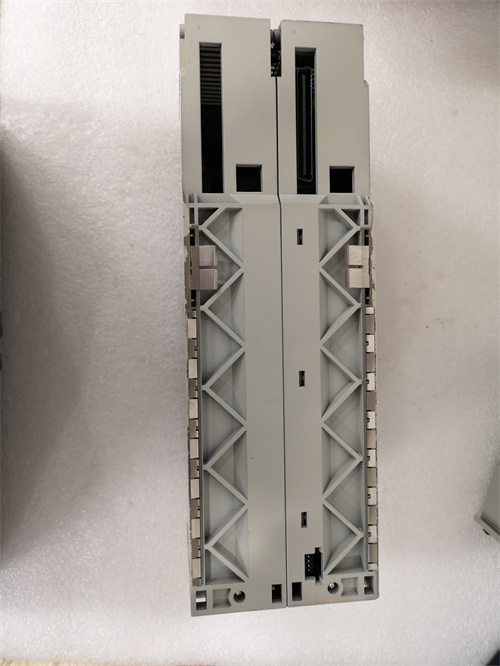

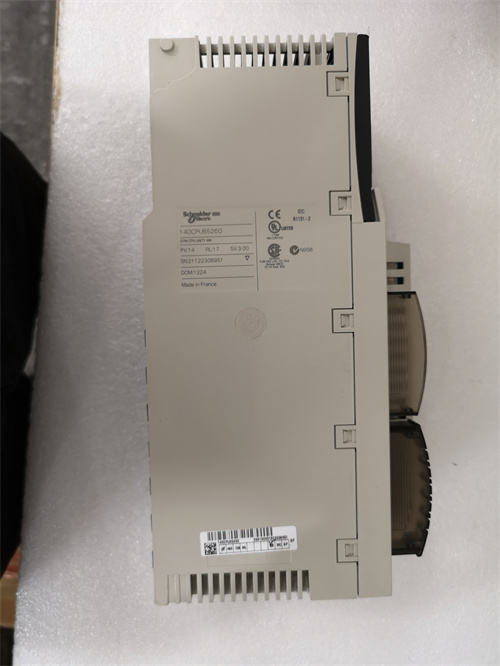

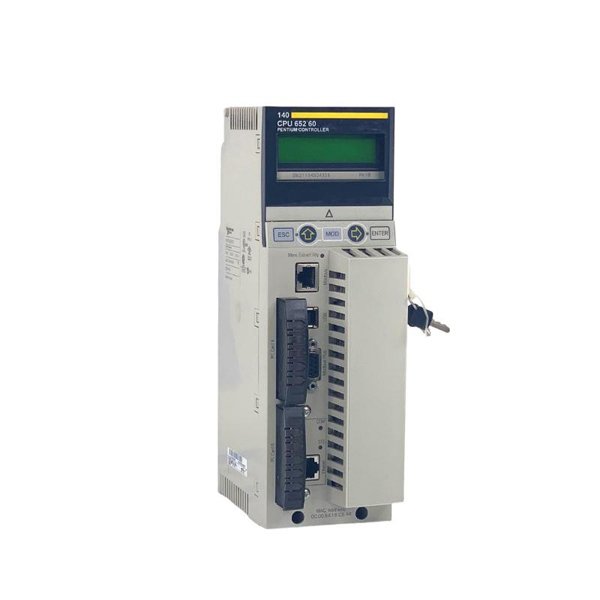

Schneider 140CPU65260 Product Overview

140CPU65260 is a high-performance programmable controller(PLC)CPU module launched by Schneider Electric.The module integrates advanced processor technology,large-capacity memory,and multiple communication interfaces to handle complex control tasks and ensure system stability and reliability.

Main features and performance

Processor

Uses Pentium Unity processor to provide powerful processing power.

The clock frequency is 266 MHz to ensure fast response and execution of control tasks.

Memory

The internal RAM capacity is 3072 kB,which supports the storage of large amounts of data and programs.

The register(word)and discrete(bit)reference capacity are both 64 kilobytes(or 62 kilobytes,which may vary depending on different materials),meeting the needs of complex control algorithms.

Communication interface

Provides multiple communication ports,including Modbus(RS-232/RS-485),Modbus Plus(RS-485),USB and Ethernet interfaces.

Supports multiple communication protocols,such as Ethernet/IP,Profinet,etc.,to facilitate data exchange with different devices and systems.

Rack and module expansion

The module supports 2 local racks and can be expanded with up to 6 optional modules,such as Ethernet modules,Modbus modules,Profibus DP modules,etc.

Diagnosis and fault detection

After power-on,the CPU module will automatically perform diagnostic tasks such as RAM,RAM address,execution checksum,etc.to ensure the integrity of the system.

During operation,the module will continuously monitor all functions except the processor to detect and report potential faults in a timely manner.

Other features

With key switch and local signal LED indicator,it is convenient for users to monitor and operate.

The battery shelf life is 10 years and the service life is 12 mAh,ensuring that important data can be saved when the system is powered off.

Application Fields

The 140CPU65260 module is widely used in various industrial automation and control systems,including but not limited to

Industrial Automation:used to monitor and control various devices in industrial automation systems,such as sensors,actuators and other automation components.

Production Line Control:Coordinate and control the entire production line to improve production efficiency and quality.

Process Control:Applied to process industries such as chemical,oil and gas to achieve real-time monitoring and control of the production process.

Energy Management:Used to monitor and control energy equipment,optimize energy use and achieve energy efficiency.

Building Automation:Applicable to building automation systems,including lighting,heating,ventilation and air conditioning(HVAC),security,etc.
