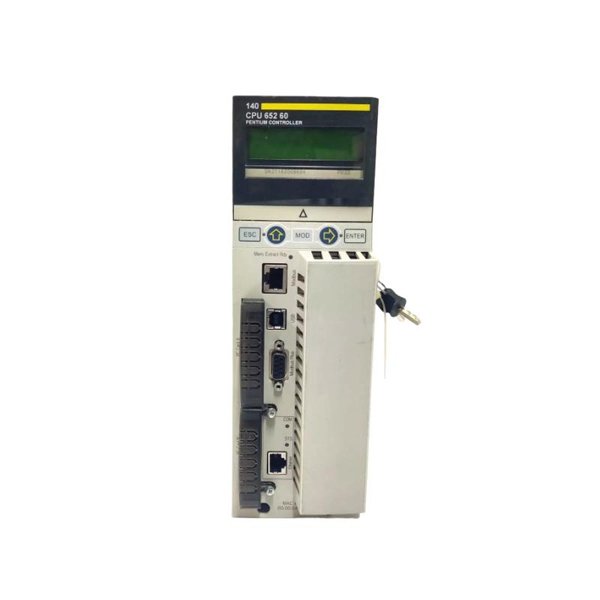

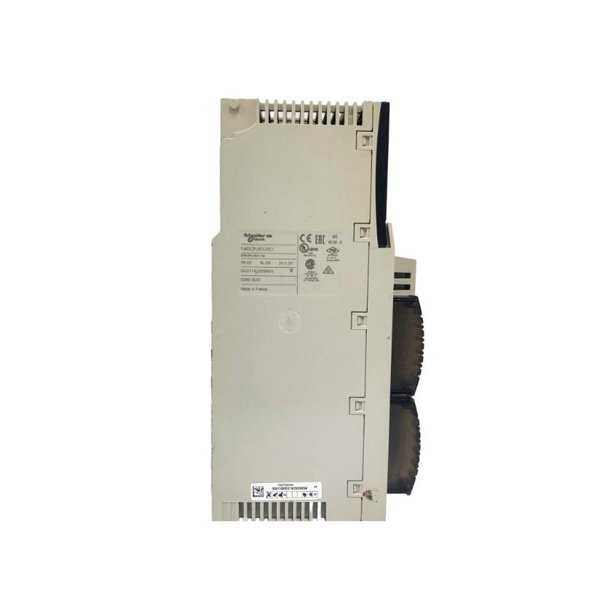

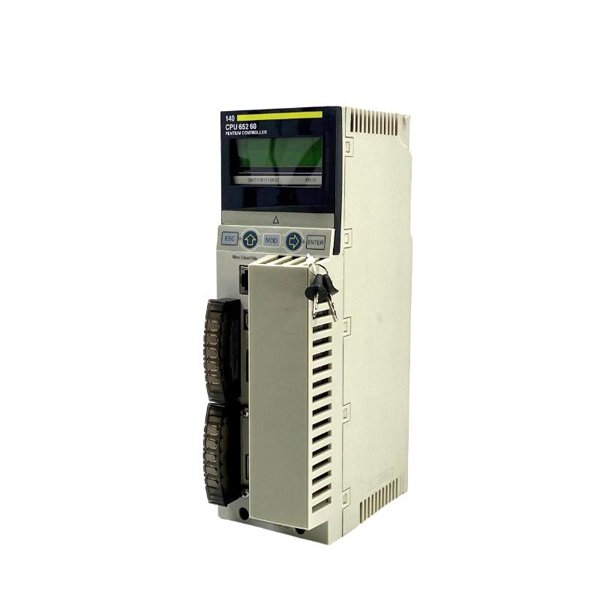

The Schneider 140CPU65260 Unity Processor is a high-performance CPU module from the Modicon Quantum series, designed for large-scale, high-reliability industrial automation systems. Engineered to deliver superior processing capabilities, enhanced memory, and advanced communication options, this processor is widely deployed across critical industries including oil & gas, power generation, utilities, chemicals, metals, pharmaceuticals, and water treatment.

Fully programmable through Schneider Electric’s Unity Pro software (now EcoStruxure Control Expert), the 140CPU65260 supports IEC 61131-3 programming languages and integrates seamlessly with Schneider’s full range of Quantum I/O and communication modules. It features dual Ethernet ports with embedded switch capability for high-speed, redundant, and segmented networks.

The 140CPU65260 is a flagship model designed to run complex logic, manage massive I/O configurations, handle time-critical tasks, and ensure system stability in even the harshest environments. It is an ideal choice for continuous process control and hybrid manufacturing applications that demand top-tier performance and availability.

Product Specifications

Applications

• Oil & Gas Production & Refining: Advanced process control for upstream, midstream, and downstream facilities

• Chemical & Petrochemical Plants: High-availability control for continuous processes

• Water & Wastewater Treatment: Reliable control for pumping stations, treatment plants, and SCADA integration

• Power Generation: Turbine management, boiler control, and substation automation

• Pharmaceutical Manufacturing: Batch control with strict validation requirements

• Steel & Metals Processing: Real-time control of furnaces, mills, and casting operations

• Mining & Cement Plants: Heavy-duty process control in demanding environments

• Food & Beverage: Flexible control for recipe-driven production and packaging

• Energy & Utilities: Distributed generation and microgrid control

• Large Infrastructure Projects: Airport systems, tunnels, transportation hubs

Product Advantages

• Ultra-Fast Processing: 0.08 ms/K instruction execution for complex control applications

• Large Memory Footprint: 4 MB user memory + 1 MB flash supports large projects and data logging

• Advanced Networking: Dual Ethernet ports with embedded switch enhance communication speed and reliability

• Modular & Scalable: Supports massive I/O counts and distributed architectures

• Built-in Redundancy: Hot standby capability minimizes downtime in critical systems

• Comprehensive Diagnostics: Real-time system health monitoring through LED indicators and diagnostics registers

• Flexible Programming: Supports all IEC 61131-3 languages plus advanced options such as CFC

• Future-Proof: Compatible with EcoStruxure Control Expert software for long-term platform viability

• Global Certifications: Certified for use in hazardous and industrial environments worldwide

• Reduced TCO: High reliability and long product lifecycle reduce operational costs and maintenance needs

Frequently Asked Questions (FAQ)

1. What is the primary role of the 140CPU65260?

   It acts as the central processor in a Quantum PLC system, executing logic and managing all communications and I/O.

2. Which programming software is compatible with this CPU?

   It is programmed using Unity Pro or EcoStruxure Control Expert software.

3. Does the CPU support redundant control architectures?

   Yes, hot standby redundancy is fully supported with an appropriate Quantum rack configuration.

4. What communication protocols are available?

   Modbus TCP/IP, Modbus RTU, Modbus Plus, Ethernet/IP, IEC 61850, and TCP/IP.

5. Is the module suitable for high-availability applications?

   Yes, its speed, redundancy, and diagnostics make it ideal for mission-critical systems.

6. How is network redundancy implemented?

   Through the dual embedded Ethernet ports with integrated switch capability, plus support for redundant topologies.

7. Can I integrate this processor into existing SCADA or DCS systems?

   Yes, the wide range of supported protocols ensures easy integration.

8. How much I/O can the system handle?

   It supports up to 65,000 discrete points and 4,000 analog points.

9. Is battery backup provided for program retention?

   Yes, a replaceable battery ensures program and data integrity in case of power failure.

10. What industries commonly use this CPU?

    It is widely used in oil & gas, chemicals, utilities, metals, pharmaceuticals, water treatment, and infrastructure.
