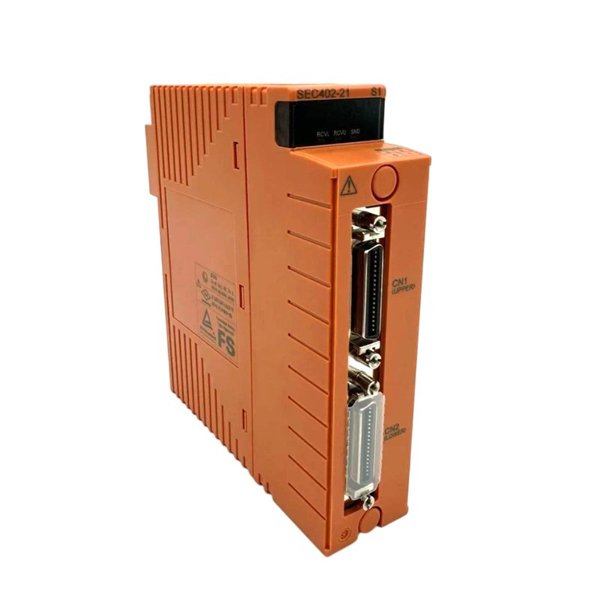

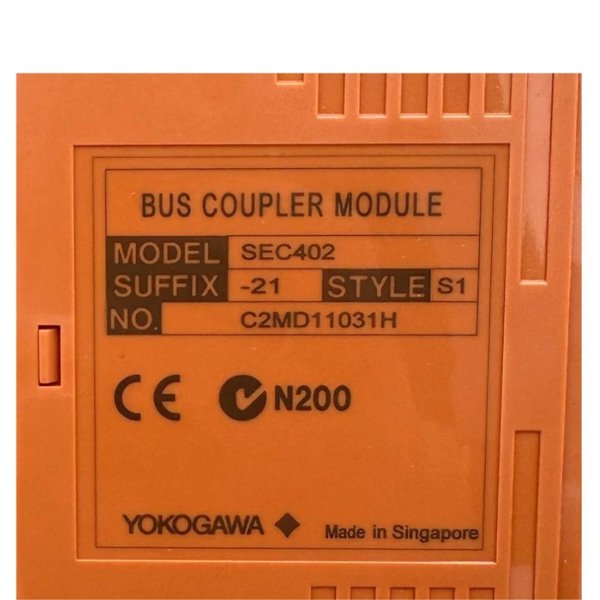

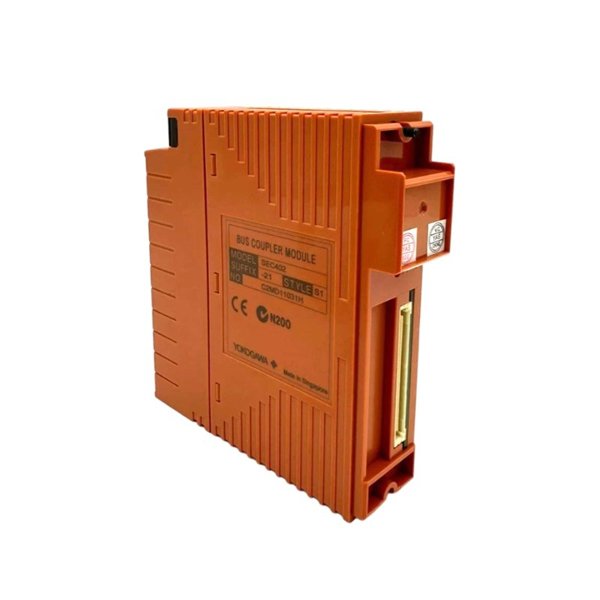

Yokogawa SEC402-21 Bus Coupler Module

The Yokogawa SEC402-21 Bus Coupler Module is a high-performance communication interface designed to link field I/O modules with control systems in Yokogawa’s automation platforms. It acts as a bridge between the subsystem bus and the process control network, ensuring that data signals are transmitted reliably with minimal latency.

This module is engineered for robust industrial environments, where secure and stable communication between distributed control systems (DCS) and field devices is critical. It enhances system flexibility and scalability, allowing users to expand I/O capacity while maintaining precise process monitoring and control.

Technical Specifications

Product Applications

• Distributed Control Systems (DCS) in process industries such as oil & gas, petrochemical, and power plants.

• Integration of multiple I/O modules for large-scale automation projects.

• Redundant communication pathways for safety and mission-critical operations.

• Expanding system capacity by coupling additional field I/O to central controllers.

• Applications requiring secure and deterministic communication in harsh industrial environments.

Product Advantages

• High Reliability: Supports redundant communication paths to ensure system availability.

• Scalability: Enables expansion of I/O capacity without redesigning the core system.

• Robust Design: Resistant to industrial noise, vibration, and environmental stress.

• Flexibility: Compatible with multiple Yokogawa automation platforms and I/O families.

• Hot-Swappable: Can be replaced without shutting down the system, minimizing downtime.

• Stable Communication: Ensures deterministic and error-free data transfer.

FAQ

Q1: What type of communication bus does the SEC402-21 support?

A1: It supports Yokogawa’s proprietary subsystem bus and integrates seamlessly with Vnet/IP systems.

Q2: Can the SEC402-21 be used in redundant configurations?

A2: Yes, it is designed for dual redundant bus connections to enhance system reliability.

Q3: Does the module support hot-swapping?

A3: Yes, the module can be replaced during operation without shutting down the system.

Q4: What is the typical data transmission speed of the bus?

A4: The module ensures high-speed and deterministic communication with low latency, suitable for process control.

Q5: How does the module handle communication errors?

A5: It uses error detection and correction mechanisms to maintain data integrity.

Q6: Is the SEC402-21 compatible with older Yokogawa I/O modules?

A6: Yes, it is designed to maintain backward compatibility with multiple Yokogawa subsystem I/O families.

Q7: Can the module operate under fluctuating power conditions?

A7: It has tolerance for variations within its rated 24 V DC supply, ensuring stable operation.

Q8: How many I/O modules can be connected per bus coupler?

A8: The capacity depends on system configuration, but typically supports multiple racks of I/O modules.

Q9: What type of diagnostic functions are available?

A9: The module provides communication status monitoring, error logging, and fault indication.

Q10: Can the module integrate with safety instrumented systems (SIS)?

A10: Yes, it can be deployed in safety-related architectures when configured with certified system components.
